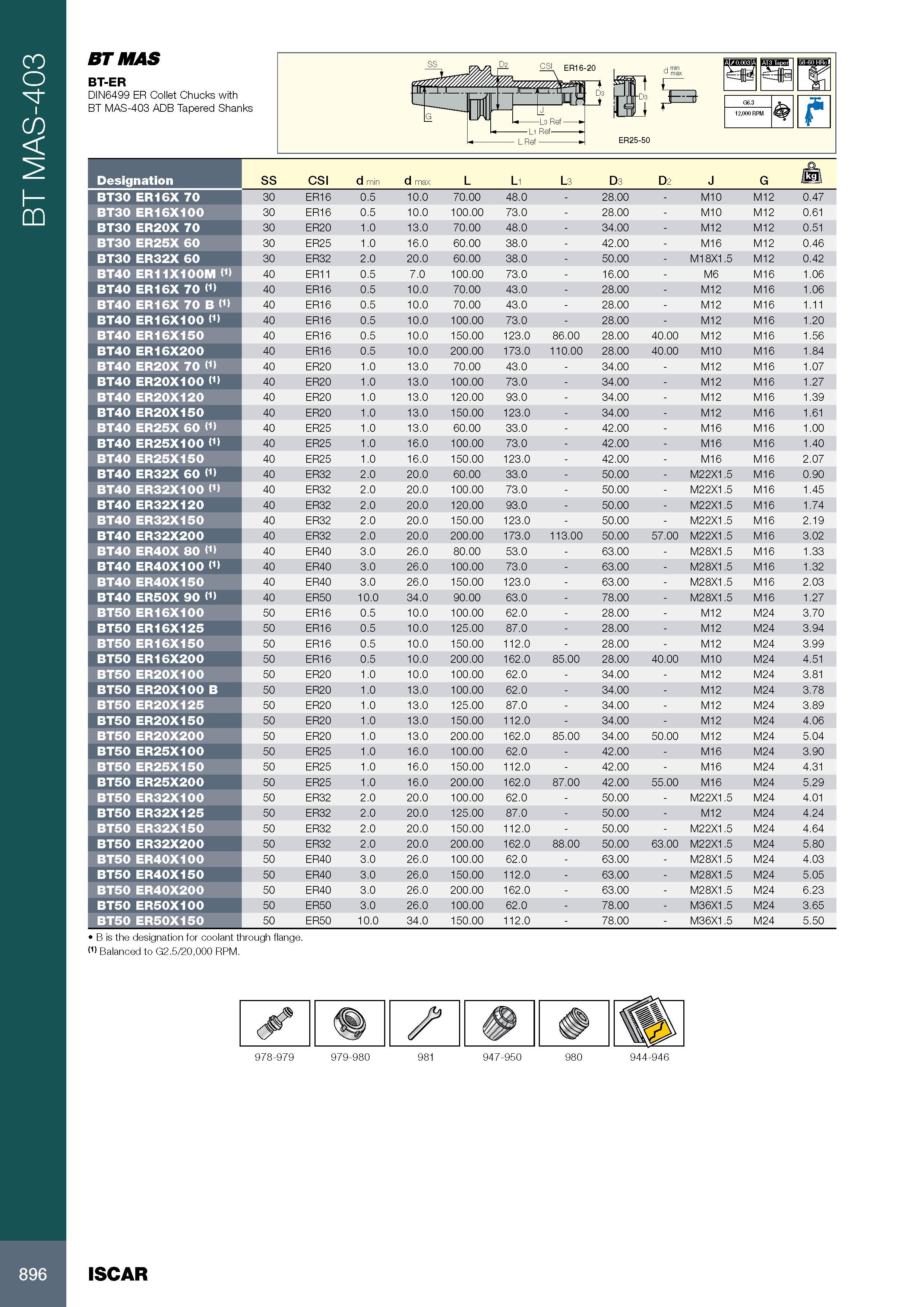

BT MAS-403 896 BT MAS BT-ER DIN6499 ER Collet Chucks with BT MAS-403 ADB Tapered Shanks D2 CSI d 12,000 RPM Обозначение Designation SS CSI d min d max L L1 L3 D3 D2 J G M BT30 ER16X 70 30 ER16 0.5 10.0 70.00 48.0 - 28.00 - M10 M12 0.47 BT30 ER16X100 30 ER16 0.5 10.0 100.00 73.0 - 28.00 - M10 M12 0.61 BT30 ER20X 70 30 ER20 1.0 13.0 70.00 48.0 - 34.00 - M12 M12 0.51 BT30 ER25X 60 30 ER25 1.0 16.0 60.00 38.0 - 42.00 - M16 M12 0.46 BT30 ER32X 60 30 ER32 2.0 20.0 60.00 38.0 - 50.00 - M18X1.5 M12 0.42 BT40 ER11X100M <1> 40 ER11 0.5 7.0 100.00 73.0 - 16.00 - M6 M16 1.06 BT40 ER16X 70 <1> 40 ER16 0.5 10.0 70.00 43.0 - 28.00 - M12 M16 1.06 BT40 ER16X 70 B <1> 40 ER16 0.5 10.0 70.00 43.0 - 28.00 - M12 M16 1.11 BT40 ER16X100 <1> 40 ER16 0.5 10.0 100.00 73.0 - 28.00 - M12 M16 1.20 BT40 ER16X150 40 ER16 0.5 10.0 150.00 123.0 86.00 28.00 40.00 M12 M16 1.56 BT40 ER16X200 40 ER16 0.5 10.0 200.00 173.0 110.00 28.00 40.00 M10 M16 1.84 BT40 ER20X 70 <1> 40 ER20 1.0 13.0 70.00 43.0 - 34.00 - M12 M16 1.07 BT40 ER20X100 <1> 40 ER20 1.0 13.0 100.00 73.0 - 34.00 - M12 M16 1.27 BT40 ER20X120 40 ER20 1.0 13.0 120.00 93.0 - 34.00 - M12 M16 1.39 BT40 ER20X150 40 ER20 1.0 13.0 150.00 123.0 - 34.00 - M12 M16 1.61 BT40 ER25X 60 <1> 40 ER25 1.0 13.0 60.00 33.0 - 42.00 - M16 M16 1.00 BT40 ER25X100 <1> 40 ER25 1.0 16.0 100.00 73.0 - 42.00 - M16 M16 1.40 BT40 ER25X150 40 ER25 1.0 16.0 150.00 123.0 - 42.00 - M16 M16 2.07 BT40 ER32X 60 <1> 40 ER32 2.0 20.0 60.00 33.0 - 50.00 - M22X1.5 M16 0.90 BT40 ER32X100 <1> 40 ER32 2.0 20.0 100.00 73.0 - 50.00 - M22X1.5 M16 1.45 BT40 ER32X120 40 ER32 2.0 20.0 120.00 93.0 - 50.00 - M22X1.5 M16 1.74 BT40 ER32X150 40 ER32 2.0 20.0 150.00 123.0 - 50.00 - M22X1.5 M16 2.19 BT40 ER32X200 40 ER32 2.0 20.0 200.00 173.0 113.00 50.00 57.00 M22X1.5 M16 3.02 BT40 ER40X 80 <1> 40 ER40 3.0 26.0 80.00 53.0 - 63.00 - M28X1.5 M16 1.33 BT40 ER40X100 <1> 40 ER40 3.0 26.0 100.00 73.0 - 63.00 - M28X1.5 M16 1.32 BT40 ER40X150 40 ER40 3.0 26.0 150.00 123.0 - 63.00 - M28X1.5 M16 2.03 BT40 ER50X 90 <1> 40 ER50 10.0 34.0 90.00 63.0 - 78.00 - M28X1.5 M16 1.27 BT50 ER16X100 50 ER16 0.5 10.0 100.00 62.0 - 28.00 - M12 M24 3.70 BT50 ER16X125 50 ER16 0.5 10.0 125.00 87.0 - 28.00 - M12 M24 3.94 BT50 ER16X150 50 ER16 0.5 10.0 150.00 112.0 - 28.00 - M12 M24 3.99 BT50 ER16X200 50 ER16 0.5 10.0 200.00 162.0 85.00 28.00 40.00 M10 M24 4.51 BT50 ER20X100 50 ER20 1.0 10.0 100.00 62.0 - 34.00 - M12 M24 3.81 BT50 ER20X100 B 50 ER20 1.0 13.0 100.00 62.0 - 34.00 - M12 M24 3.78 BT50 ER20X125 50 ER20 1.0 13.0 125.00 87.0 - 34.00 - M12 M24 3.89 BT50 ER20X150 50 ER20 1.0 13.0 150.00 112.0 - 34.00 - M12 M24 4.06 BT50 ER20X200 50 ER20 1.0 13.0 200.00 162.0 85.00 34.00 50.00 M12 M24 5.04 BT50 ER25X100 50 ER25 1.0 16.0 100.00 62.0 - 42.00 - M16 M24 3.90 BT50 ER25X150 50 ER25 1.0 16.0 150.00 112.0 - 42.00 - M16 M24 4.31 BT50 ER25X200 50 ER25 1.0 16.0 200.00 162.0 87.00 42.00 55.00 M16 M24 5.29 BT50 ER32X100 50 ER32 2.0 20.0 100.00 62.0 - 50.00 - M22X1.5 M24 4.01 BT50 ER32X125 50 ER32 2.0 20.0 125.00 87.0 - 50.00 - M12 M24 4.24 BT50 ER32X150 50 ER32 2.0 20.0 150.00 112.0 - 50.00 - M22X1.5 M24 4.64 BT50 ER32X200 50 ER32 2.0 20.0 200.00 162.0 88.00 50.00 63.00 M22X1.5 M24 5.80 BT50 ER40X100 50 ER40 3.0 26.0 100.00 62.0 - 63.00 - M28X1.5 M24 4.03 BT50 ER40X150 50 ER40 3.0 26.0 150.00 112.0 - 63.00 - M28X1.5 M24 5.05 BT50 ER40X200 50 ER40 3.0 26.0 200.00 162.0 - 63.00 - M28X1.5 M24 6.23 BT50 ER50X100 50 ER50 3.0 26.0 100.00 62.0 - 78.00 - M36X1.5 M24 3.65 BT50 ER50X150 50 ER50 10.0 34.0 150.00 112.0 - 78.00 - M36X1.5 M24 5.50 B is the designation for coolant through flange. (1) Balanced to G2.5/20,000 RPM. 978-979 979-980 981 947-950 980 944-946 ISCAR
