907 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.903

Каталог ISCAR 2017 Ротационный инструмент Стр. 903 0907 ENG Lab2u

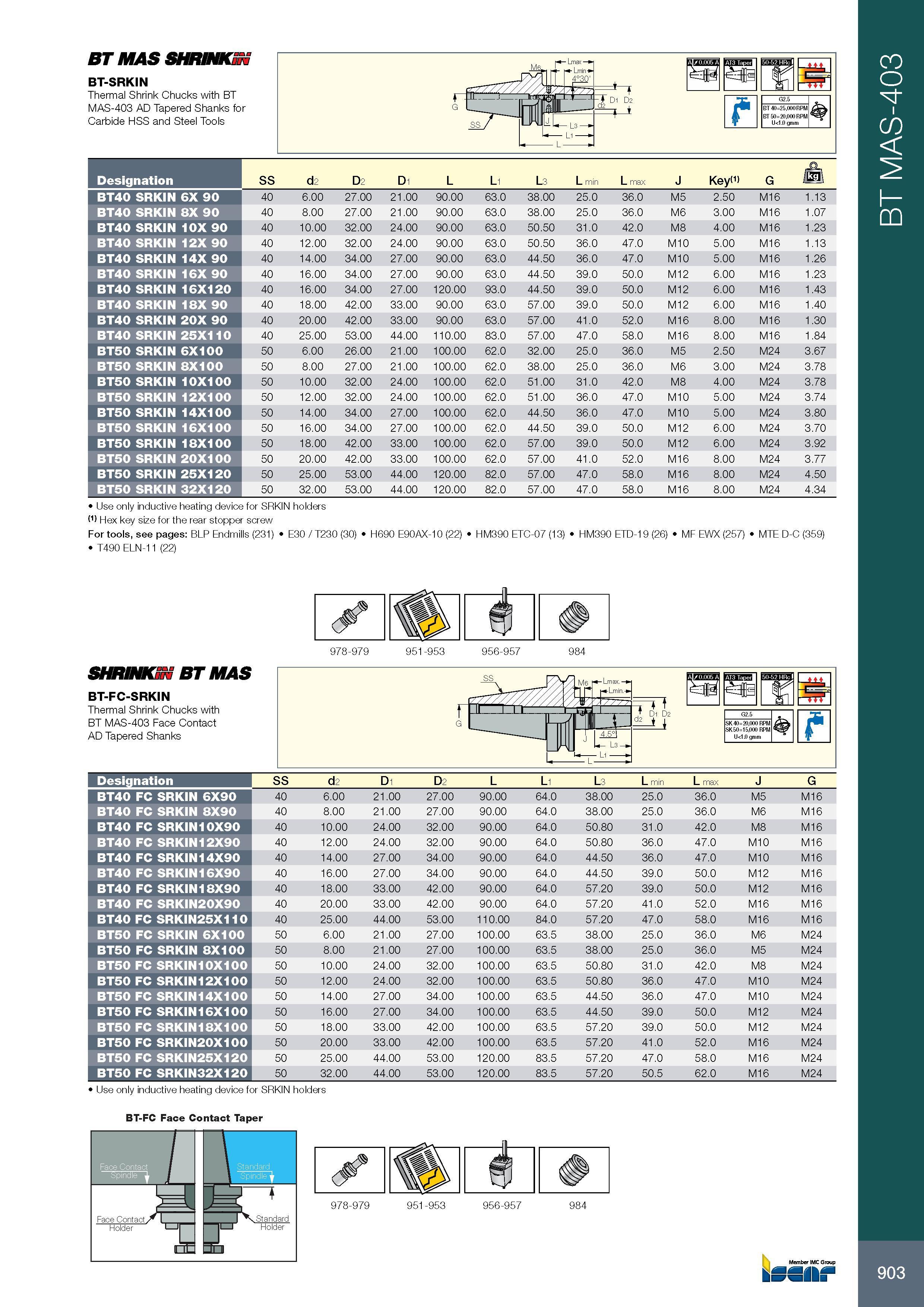

903 BT MAS SHRINKS, BT-SRKIN Thermal Shrink Chucks with BT MAS-403 AD Tapered Shanks for Carbide HSS and Steel Tools M6 Lmax JTr 4°3>0' f (jp-J- 1 - D1 D2 G &IL SS / L3 a L m AH (H G2.5 BT 40=25,000R BT 50= 20,000 R U<1.0 gmm PM Обозначение Designation SS d2 D2 D1 L L1 L3 L min L max J Key(1) G A BT40 SRKIN 6X 90 40 6.00 27.00 21.00 90.00 63.0 38.00 25.0 36.0 M5 2.50 M16 1.13 BT40 SRKIN 8X 90 40 8.00 27.00 21.00 90.00 63.0 38.00 25.0 36.0 M6 3.00 M16 1.07 BT40 SRKIN 10X 90 40 10.00 32.00 24.00 90.00 63.0 50.50 31.0 42.0 M8 4.00 M16 1.23 BT40 SRKIN 12X 90 40 12.00 32.00 24.00 90.00 63.0 50.50 36.0 47.0 M10 5.00 M16 1.13 BT40 SRKIN 14X 90 40 14.00 34.00 27.00 90.00 63.0 44.50 36.0 47.0 M10 5.00 M16 1.26 BT40 SRKIN 16X 90 40 16.00 34.00 27.00 90.00 63.0 44.50 39.0 50.0 M12 6.00 M16 1.23 BT40 SRKIN 16X120 40 16.00 34.00 27.00 120.00 93.0 44.50 39.0 50.0 M12 6.00 M16 1.43 BT40 SRKIN 18X 90 40 18.00 42.00 33.00 90.00 63.0 57.00 39.0 50.0 M12 6.00 M16 1.40 BT40 SRKIN 20X 90 40 20.00 42.00 33.00 90.00 63.0 57.00 41.0 52.0 M16 8.00 M16 1.30 BT40 SRKIN 25X110 40 25.00 53.00 44.00 110.00 83.0 57.00 47.0 58.0 M16 8.00 M16 1.84 BT50 SRKIN 6X100 50 6.00 26.00 21.00 100.00 62.0 32.00 25.0 36.0 M5 2.50 M24 3.67 BT50 SRKIN 8X100 50 8.00 27.00 21.00 100.00 62.0 38.00 25.0 36.0 M6 3.00 M24 3.78 BT50 SRKIN 10X100 50 10.00 32.00 24.00 100.00 62.0 51.00 31.0 42.0 M8 4.00 M24 3.78 BT50 SRKIN 12X100 50 12.00 32.00 24.00 100.00 62.0 51.00 36.0 47.0 M10 5.00 M24 3.74 BT50 SRKIN 14X100 50 14.00 34.00 27.00 100.00 62.0 44.50 36.0 47.0 M10 5.00 M24 3.80 BT50 SRKIN 16X100 50 16.00 34.00 27.00 100.00 62.0 44.50 39.0 50.0 M12 6.00 M24 3.70 BT50 SRKIN 18X100 50 18.00 42.00 33.00 100.00 62.0 57.00 39.0 50.0 M12 6.00 M24 3.92 BT50 SRKIN 20X100 50 20.00 42.00 33.00 100.00 62.0 57.00 41.0 52.0 M16 8.00 M24 3.77 BT50 SRKIN 25X120 50 25.00 53.00 44.00 120.00 82.0 57.00 47.0 58.0 M16 8.00 M24 4.50 BT50 SRKIN 32X120 50 32.00 53.00 44.00 120.00 82.0 57.00 47.0 58.0 M16 8.00 M24 4.34 Use only inductive heating device for SRKIN holders (1) Hex key size for the rear stopper screw For tools, see pages: BLP Endmills (231) E30 / T230 (30) H690 E90AX-10 (22) HM390 ETC-07 (13) HM390 ETD-19 (26) MF EWX (257) MTE D-C (359) T490 ELN-11 (22) 978-979 951-953 956-957 984 SHRINKiN BT MAS BT-FC-SRKIN Thermal Shrink Chucks with BT MAS-403 Face Contact AD Tapered Shanks SS d2 D1 D2 L L1 L3 L min L max J G BT40 FC SRKIN 6X90 40 6.00 21.00 27.00 90.00 64.0 38.00 25.0 36.0 M5 M16 BT40 FC SRKIN 8X90 40 8.00 21.00 27.00 90.00 64.0 38.00 25.0 36.0 M6 M16 BT40 FC SRKIN10X90 40 10.00 24.00 32.00 90.00 64.0 50.80 31.0 42.0 M8 M16 BT40 FC SRKIN12X90 40 12.00 24.00 32.00 90.00 64.0 50.80 36.0 47.0 M10 M16 BT40 FC SRKIN14X90 40 14.00 27.00 34.00 90.00 64.0 44.50 36.0 47.0 M10 M16 BT40 FC SRKIN16X90 40 16.00 27.00 34.00 90.00 64.0 44.50 39.0 50.0 M12 M16 BT40 FC SRKIN18X90 40 18.00 33.00 42.00 90.00 64.0 57.20 39.0 50.0 M12 M16 BT40 FC SRKIN20X90 40 20.00 33.00 42.00 90.00 64.0 57.20 41.0 52.0 M16 M16 BT40 FC SRKIN25X110 40 25.00 44.00 53.00 110.00 84.0 57.20 47.0 58.0 M16 M16 BT50 FC SRKIN 6X100 50 6.00 21.00 27.00 100.00 63.5 38.00 25.0 36.0 M6 M24 BT50 FC SRKIN 8X100 50 8.00 21.00 27.00 100.00 63.5 38.00 25.0 36.0 M5 M24 BT50 FC SRKIN10X100 50 10.00 24.00 32.00 100.00 63.5 50.80 31.0 42.0 M8 M24 BT50 FC SRKIN12X100 50 12.00 24.00 32.00 100.00 63.5 50.80 36.0 47.0 M10 M24 BT50 FC SRKIN14X100 50 14.00 27.00 34.00 100.00 63.5 44.50 36.0 47.0 M10 M24 BT50 FC SRKIN16X100 50 16.00 27.00 34.00 100.00 63.5 44.50 39.0 50.0 M12 M24 BT50 FC SRKIN18X100 50 18.00 33.00 42.00 100.00 63.5 57.20 39.0 50.0 M12 M24 BT50 FC SRKIN20X100 50 20.00 33.00 42.00 100.00 63.5 57.20 41.0 52.0 M16 M24 BT50 FC SRKIN25X120 50 25.00 44.00 53.00 120.00 83.5 57.20 47.0 58.0 M16 M24 BT50 FC SRKIN32X120 50 32.00 44.00 53.00 120.00 83.5 57.20 50.5 62.0 M16 M24 Use only inductive heating device for SRKIN holders BT-FC Face Contact Taper JK 1 w Face Contact Holder C3 Standard ip Holder 978-979 951-953 956-957 984 Member IMC Group BT MAS-403
