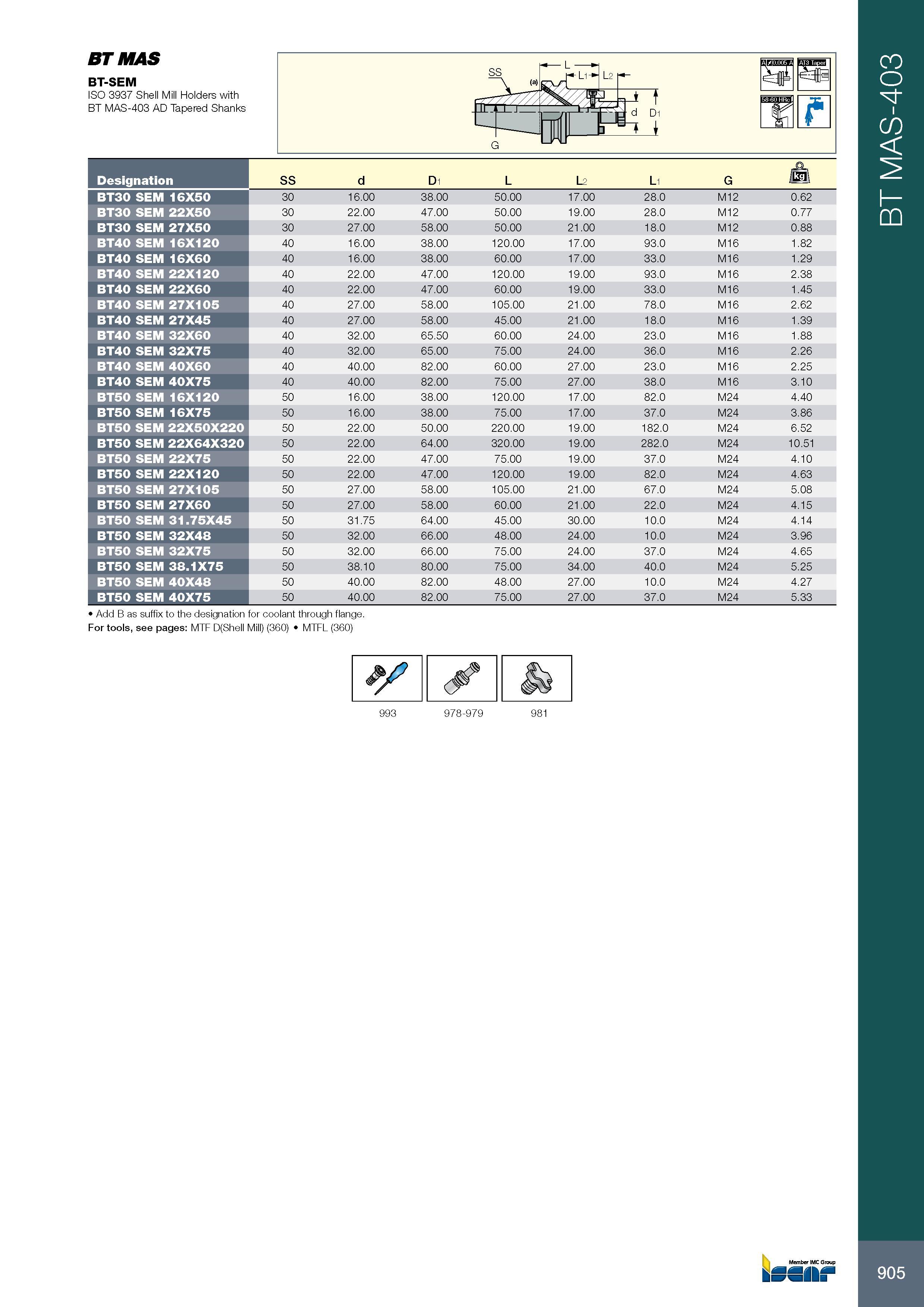

905 BT MAS BT-SEM ISO 3937 Shell Mill Holders with BT MAS-403 AD Tapered Shanks Обозначение Designation SS d D1 L L2 L1 G BT30 SEM 16X50 30 16.00 38.00 50.00 17.00 28.0 M12 0.62 BT30 SEM 22X50 30 22.00 47.00 50.00 19.00 28.0 M12 0.77 BT30 SEM 27X50 30 27.00 58.00 50.00 21.00 18.0 M12 0.88 BT40 SEM 16X120 40 16.00 38.00 120.00 17.00 93.0 M16 1.82 BT40 SEM 16X60 40 16.00 38.00 60.00 17.00 33.0 M16 1.29 BT40 SEM 22X120 40 22.00 47.00 120.00 19.00 93.0 M16 2.38 BT40 SEM 22X60 40 22.00 47.00 60.00 19.00 33.0 M16 1.45 BT40 SEM 27X105 40 27.00 58.00 105.00 21.00 78.0 M16 2.62 BT40 SEM 27X45 40 27.00 58.00 45.00 21.00 18.0 M16 1.39 BT40 SEM 32X60 40 32.00 65.50 60.00 24.00 23.0 M16 1.88 BT40 SEM 32X75 40 32.00 65.00 75.00 24.00 36.0 M16 2.26 BT40 SEM 40X60 40 40.00 82.00 60.00 27.00 23.0 M16 2.25 BT40 SEM 40X75 40 40.00 82.00 75.00 27.00 38.0 M16 3.10 BT50 SEM 16X120 50 16.00 38.00 120.00 17.00 82.0 M24 4.40 BT50 SEM 16X75 50 16.00 38.00 75.00 17.00 37.0 M24 3.86 BT50 SEM 22X50X220 50 22.00 50.00 220.00 19.00 182.0 M24 6.52 BT50 SEM 22X64X320 50 22.00 64.00 320.00 19.00 282.0 M24 10.51 BT50 SEM 22X75 50 22.00 47.00 75.00 19.00 37.0 M24 4.10 BT50 SEM 22X120 50 22.00 47.00 120.00 19.00 82.0 M24 4.63 BT50 SEM 27X105 50 27.00 58.00 105.00 21.00 67.0 M24 5.08 BT50 SEM 27X60 50 27.00 58.00 60.00 21.00 22.0 M24 4.15 BT50 SEM 31.75X45 50 31.75 64.00 45.00 30.00 10.0 M24 4.14 BT50 SEM 32X48 50 32.00 66.00 48.00 24.00 10.0 M24 3.96 BT50 SEM 32X75 50 32.00 66.00 75.00 24.00 37.0 M24 4.65 BT50 SEM 38.1X75 50 38.10 80.00 75.00 34.00 40.0 M24 5.25 BT50 SEM 40X48 50 40.00 82.00 48.00 27.00 10.0 M24 4.27 BT50 SEM 40X75 50 40.00 82.00 75.00 27.00 37.0 M24 5.33 Add B as suffix to the designation for coolant through flange. For tools, see pages: MTF D(Shell Mill) (360) MTFL (360) 993 978-979 981 BT MAS-403
