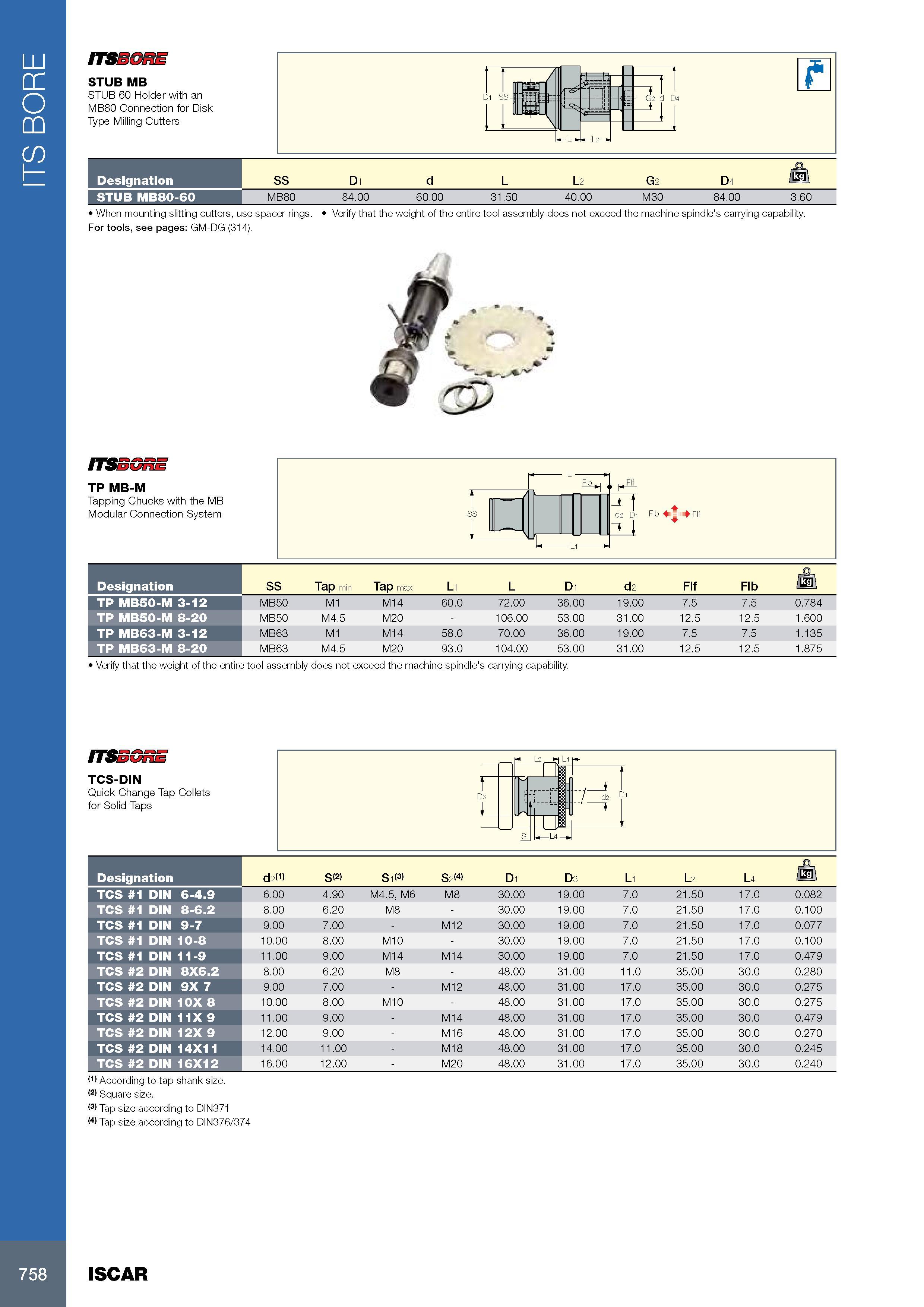

762 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.758

Каталог ISCAR 2017 Ротационный инструмент Стр. 758 0762 ENG Lab2u

ITS BORE ITSSGRE STUB MB STUB 60 Holder with an MB80 Connection for Disk Type Milling Cutters Обозначение Designation STUB MB80-60 SS D1 d L L2 G2 D4 MB80 84.00 60.00 31.50 40.00 M30 84.00 3.60 When mounting slitting cutters, use spacer rings. Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. For tools, see pages: GM-DG (314). ITSBGRE TP MB-M Tapping Chucks with the MB Modular Connection System Обозначение Designation TP MB50-M 3-12 TP MB50-M 8-20 TP MB63-M 3-12 TP MB63-M 8-20 SS Tap r L1 D1 d2 Flf Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. Flb MB50 M1 M14 60.0 72.00 36.00 19.00 7.5 7.5 0.784 MB50 M4.5 M20 - 106.00 53.00 31.00 12.5 12.5 1.600 MB63 M1 M14 58.0 70.00 36.00 19.00 7.5 7.5 1.135 MB63 M4.5 M20 93.0 104.00 53.00 31.00 12.5 12.5 1.875 ITSSGRE TCS-DIN Quick Change Tap Collets for Solid Taps Обозначение Designation d2<1) S(2) S1<3> S2<4) D1 D3 L1 L2 L4 o /kl TCS 1 DIN 6-4.9 6.00 4.90 M4.5, M6 M8 30.00 19.00 7.0 21.50 17.0 0.082 TCS 1 DIN 8-6.2 8.00 6.20 M8 - 30.00 19.00 7.0 21.50 17.0 0.100 TCS 1 DIN 9-7 9.00 7.00 - M12 30.00 19.00 7.0 21.50 17.0 0.077 TCS 1 DIN 10-8 10.00 8.00 M10 - 30.00 19.00 7.0 21.50 17.0 0.100 TCS 1 DIN 11-9 11.00 9.00 M14 M14 30.00 19.00 7.0 21.50 17.0 0.479 TCS 2 DIN 8X6.2 8.00 6.20 M8 - 48.00 31.00 11.0 35.00 30.0 0.280 TCS 2 DIN 9X 7 9.00 7.00 - M12 48.00 31.00 17.0 35.00 30.0 0.275 TCS 2 DIN 10X 8 10.00 8.00 M10 - 48.00 31.00 17.0 35.00 30.0 0.275 TCS 2 DIN 11X 9 11.00 9.00 - M14 48.00 31.00 17.0 35.00 30.0 0.479 TCS 2 DIN 12X 9 12.00 9.00 - M16 48.00 31.00 17.0 35.00 30.0 0.270 TCS 2 DIN 14X11 14.00 11.00 - M18 48.00 31.00 17.0 35.00 30.0 0.245 TCS 2 DIN 16X12 16.00 12.00 - M20 48.00 31.00 17.0 35.00 30.0 0.240 (1) According to tap shank size. (2) Square size. (3) Tap size according to DIN371 (4) Tap size according to DIN376/374 758 ISCAR
