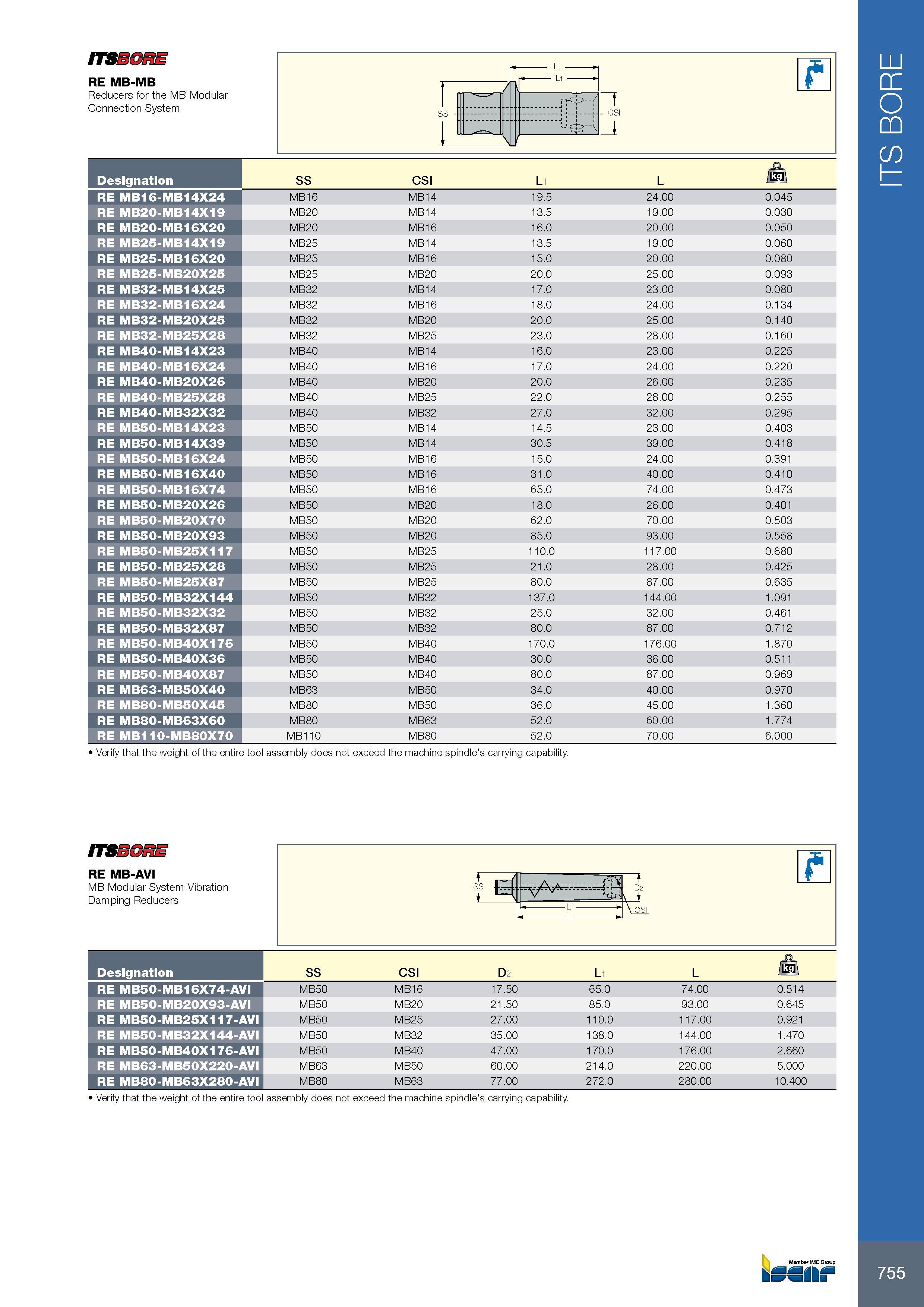

ITSSGRE RE MB-MB Reducers for the MB Modular Connection System L / t CS 1 \ 1 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. ITSSGRE RE MB-AVI MB Modular System Vibration Damping Reducers Обозначение Designation SS CSI L1 L RE MB16-MB14X24 MB16 MB14 19.5 24.00 0.045 RE MB20-MB14X19 MB20 MB14 13.5 19.00 0.030 RE MB20-MB16X20 MB20 MB16 16.0 20.00 0.050 RE MB25-MB14X19 MB25 MB14 13.5 19.00 0.060 RE MB25-MB16X20 MB25 MB16 15.0 20.00 0.080 RE MB25-MB20X25 MB25 MB20 20.0 25.00 0.093 RE MB32-MB14X25 MB32 MB14 17.0 23.00 0.080 RE MB32-MB16X24 MB32 MB16 18.0 24.00 0.134 RE MB32-MB20X25 MB32 MB20 20.0 25.00 0.140 RE MB32-MB25X28 MB32 MB25 23.0 28.00 0.160 RE MB40-MB14X23 MB40 MB14 16.0 23.00 0.225 RE MB40-MB16X24 MB40 MB16 17.0 24.00 0.220 RE MB40-MB20X26 MB40 MB20 20.0 26.00 0.235 RE MB40-MB25X28 MB40 MB25 22.0 28.00 0.255 RE MB40-MB32X32 MB40 MB32 27.0 32.00 0.295 RE MB50-MB14X23 MB50 MB14 14.5 23.00 0.403 RE MB50-MB14X39 MB50 MB14 30.5 39.00 0.418 RE MB50-MB16X24 MB50 MB16 15.0 24.00 0.391 RE MB50-MB16X40 MB50 MB16 31.0 40.00 0.410 RE MB50-MB16X74 MB50 MB16 65.0 74.00 0.473 RE MB50-MB20X26 MB50 MB20 18.0 26.00 0.401 RE MB50-MB20X70 MB50 MB20 62.0 70.00 0.503 RE MB50-MB20X93 MB50 MB20 85.0 93.00 0.558 RE MB50-MB25X117 MB50 MB25 110.0 117.00 0.680 RE MB50-MB25X28 MB50 MB25 21.0 28.00 0.425 RE MB50-MB25X87 MB50 MB25 80.0 87.00 0.635 RE MB50-MB32X144 MB50 MB32 137.0 144.00 1.091 RE MB50-MB32X32 MB50 MB32 25.0 32.00 0.461 RE MB50-MB32X87 MB50 MB32 80.0 87.00 0.712 RE MB50-MB40X176 MB50 MB40 170.0 176.00 1.870 RE MB50-MB40X36 MB50 MB40 30.0 36.00 0.511 RE MB50-MB40X87 MB50 MB40 80.0 87.00 0.969 RE MB63-MB50X40 MB63 MB50 34.0 40.00 0.970 RE MB80-MB50X45 MB80 MB50 36.0 45.00 1.360 RE MB80-MB63X60 MB80 MB63 52.0 60.00 1.774 RE MB110-MB80X70 MB110 MB80 52.0 70.00 6.000 Обозначение Designation SS CSI D2 L1 L RE MB50-MB16X74-AVI MB50 MB16 17.50 65.0 74.00 0.514 RE MB50-MB20X93-AVI MB50 MB20 21.50 85.0 93.00 0.645 RE MB50-MB25X117-AVI MB50 MB25 27.00 110.0 117.00 0.921 RE MB50-MB32X144-AVI MB50 MB32 35.00 138.0 144.00 1.470 RE MB50-MB40X176-AVI MB50 MB40 47.00 170.0 176.00 2.660 RE MB63-MB50X220-AVI MB63 MB50 60.00 214.0 220.00 5.000 RE MB80-MB63X280-AVI MB80 MB63 77.00 272.0 280.00 10.400 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. Member IMC Group kSSII t SS 755 ITS BORE
