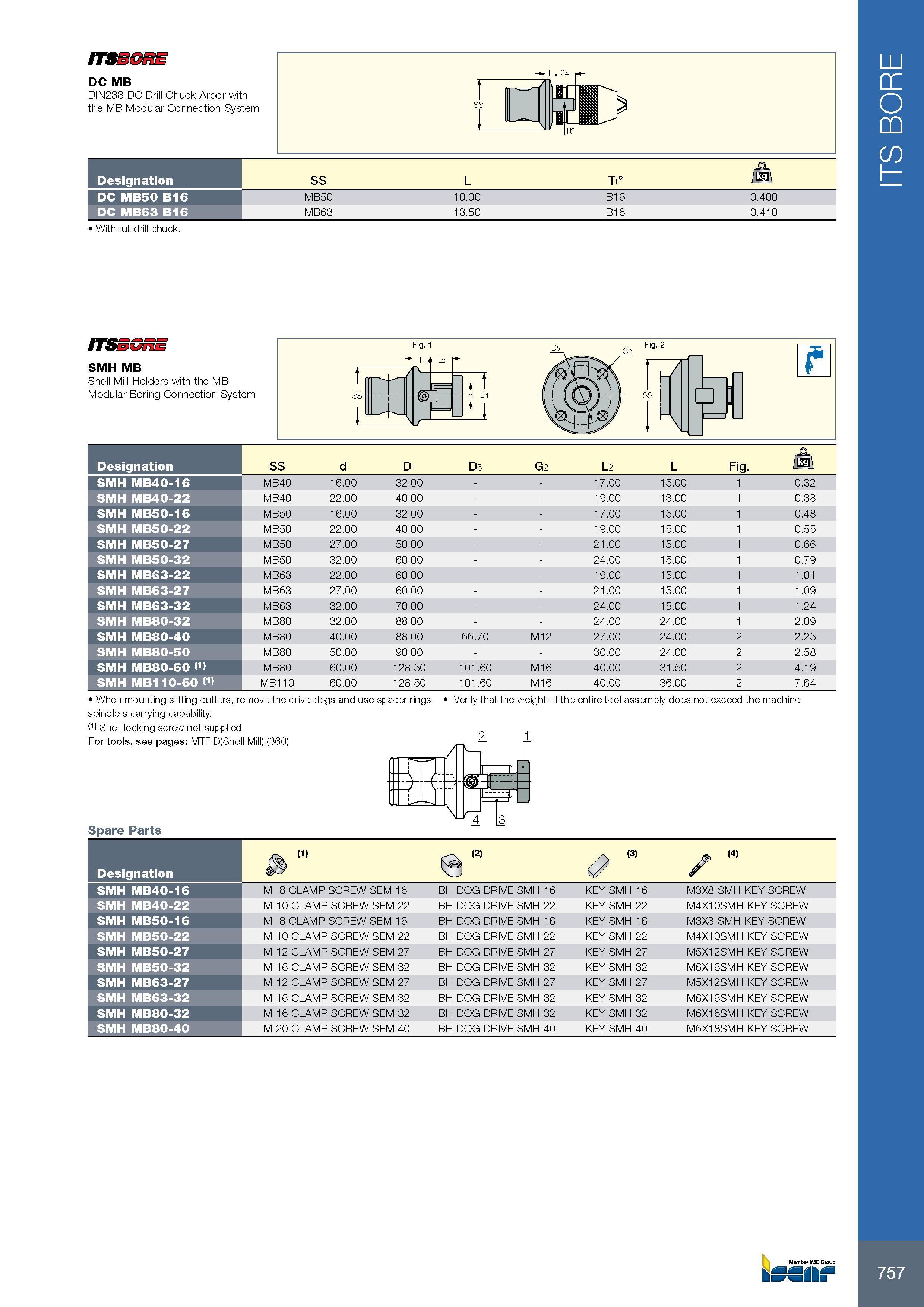

761 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.757

Каталог ISCAR 2017 Ротационный инструмент Стр. 757 0761 ENG Lab2u

ITSSGRE DC MB DIN238 DC Drill Chuck Arbor with the MB Modular Connection System Обозначение Designation SS L Tt° /kg\ DC MB50 B16 MB50 10.00 B16 0.400 DC MB63 B16 MB63 13.50 B16 0.410 Without drill chuck. SS ITSSGRE SMH MB Shell Mill Holders with the MB Modular Boring Connection System Обозначение Designation SS d D1 D5 G2 L2 L Fig. O Ikgp SMH MB40-16 MB40 16.00 32.00 17.00 15.00 1 0.32 SMH MB40-22 MB40 22.00 40.00 19.00 13.00 1 0.38 SMH MB50-16 MB50 16.00 32.00 17.00 15.00 1 0.48 SMH MB50-22 MB50 22.00 40.00 19.00 15.00 1 0.55 SMH MB50-27 MB50 27.00 50.00 21.00 15.00 1 0.66 SMH MB50-32 MB50 32.00 60.00 24.00 15.00 1 0.79 SMH MB63-22 MB63 22.00 60.00 19.00 15.00 1 1.01 SMH MB63-27 MB63 27.00 60.00 21.00 15.00 1 1.09 SMH MB63-32 MB63 32.00 70.00 24.00 15.00 1 1.24 SMH MB80-32 MB80 32.00 88.00 24.00 24.00 1 2.09 SMH MB80-40 MB80 40.00 88.00 66.70 M12 27.00 24.00 2 2.25 SMH MB80-50 MB80 50.00 90.00 30.00 24.00 2 2.58 SMH MB80-60 (1) MB80 60.00 128.50 101.60 M16 40.00 31.50 2 4.19 SMH MB110-60 (1) MB110 60.00 128.50 101.60 M16 40.00 36.00 2 7.64 When mounting slitting cutters, remove the drive dogs and use spacer rings. spindle's carrying capability. <1> Shell locking screw not supplied For tools, see pages: MTF D(Shell Mill) (360) Verify that the weight of the entire tool assembly does not exceed the machine Spare Parts Обозначение Designation (1) (2) 0 " / SMH MB40-16 M 8 CLAMP SCREW SEM 16 BH DOG DRIVE SMH 16 KEY SMH 16 M3X8 SMH KEY SCREW SMH MB40-22 M 10 CLAMP SCREW SEM 22 BH DOG DRIVE SMH 22 KEY SMH 22 M4X10SMH KEY SCREW SMH MB50-16 M 8 CLAMP SCREW SEM 16 BH DOG DRIVE SMH 16 KEY SMH 16 M3X8 SMH KEY SCREW SMH MB50-22 M 10 CLAMP SCREW SEM 22 BH DOG DRIVE SMH 22 KEY SMH 22 M4X10SMH KEY SCREW SMH MB50-27 M 12 CLAMP SCREW SEM 27 BH DOG DRIVE SMH 27 KEY SMH 27 M5X12SMH KEY SCREW SMH MB50-32 M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW SMH MB63-27 M 12 CLAMP SCREW SEM 27 BH DOG DRIVE SMH 27 KEY SMH 27 M5X12SMH KEY SCREW SMH MB63-32 M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW SMH MB80-32 M 16 CLAMP SCREW SEM 32 BH DOG DRIVE SMH 32 KEY SMH 32 M6X16SMH KEY SCREW SMH MB80-40 M 20 CLAMP SCREW SEM 40 BH DOG DRIVE SMH 40 KEY SMH 40 M6X18SMH KEY SCREW 757 ITS BORE
