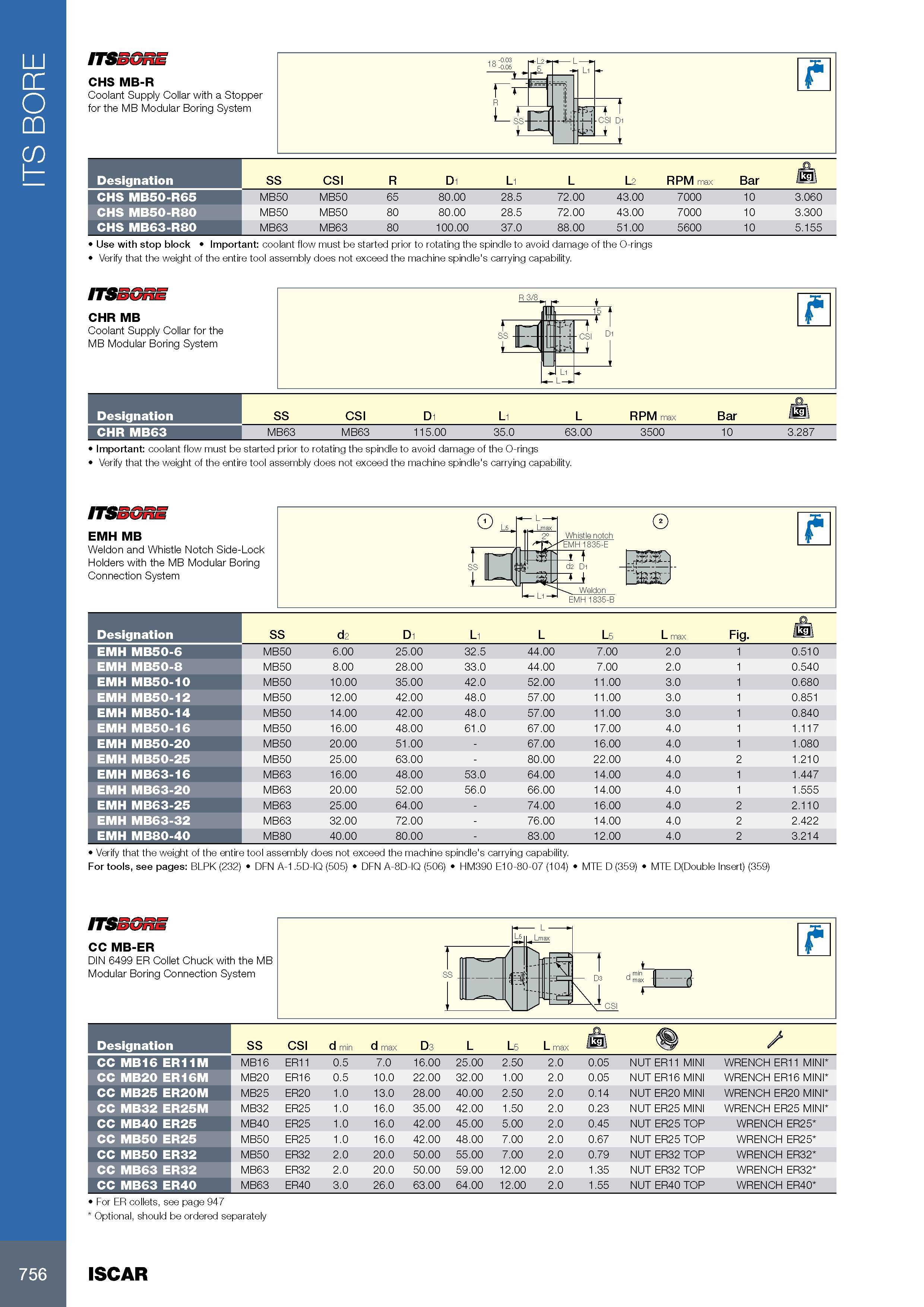

ITS BORE ITSSGRE CHS MB-R Coolant Supply Collar with a Stopper for the MB Modular Boring System Ft- 3 -L2 T L Li - rh 1 h sS “ 11 7 y u i R Обозначение Designation CHS MB50-R65 CHS MB50-R80 CHS MB63-R80 SS CSI R D1 L1 L L2 RPM max Bar MB50 MB50 65 80.00 28.5 72.00 43.00 7000 10 3.060 MB50 MB50 80 80.00 28.5 72.00 43.00 7000 10 3.300 MB63 MB63 80 100.00 37.0 88.00 51.00 5600 10 5.155 Use with stop block Important: coolant flow must be started prior to rotating the spindle to avoid damage of the O-rings Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. ITSSGRE CHR MB Coolant Supply Collar for the MB Modular Boring System r- 1 V5 t SS Irii t 1 SStzji I 1 J Li - L- Обозначение Designation CHR MB63 SS CSI D1 L1 RPM r Bar MB63 MB63 115.00 35.0 63.00 3500 10 3.287 Important: coolant flow must be started prior to rotating the spindle to avoid damage of the O-rings Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. L ITSSGRE EMH MB Weldon and Whistle Notch Side-Lock Holders with the MB Modular Boring Connection System r SS L Lmax Whistle notch 2° ’EMH i835-E OT" s t i Di d2 ll.- J \ L- Li-J Weldon EMH i835-B Обозначение Designation SS d2 D1 L1 L L5 L max Fig. Ml EMH MB50-6 MB50 6.00 25.00 32.5 44.00 7.00 2.0 1 0.510 EMH MB50-8 MB50 8.00 28.00 33.0 44.00 7.00 2.0 1 0.540 EMH MB50-10 MB50 10.00 35.00 42.0 52.00 11.00 3.0 1 0.680 EMH MB50-12 MB50 12.00 42.00 48.0 57.00 11.00 3.0 1 0.851 EMH MB50-14 MB50 14.00 42.00 48.0 57.00 11.00 3.0 1 0.840 EMH MB50-16 MB50 16.00 48.00 61.0 67.00 17.00 4.0 1 1.117 EMH MB50-20 MB50 20.00 51.00 - 67.00 16.00 4.0 1 1.080 EMH MB50-25 MB50 25.00 63.00 - 80.00 22.00 4.0 1.210 EMH MB63-16 MB63 16.00 48.00 53.0 64.00 14.00 4.0 1 1.447 EMH MB63-20 MB63 20.00 52.00 56.0 66.00 14.00 4.0 1 1.555 EMH MB63-25 MB63 25.00 64.00 - 74.00 16.00 4.0 2 2.110 EMH MB63-32 MB63 32.00 72.00 - 76.00 14.00 4.0 2 2.422 EMH MB80-40 MB80 40.00 80.00 - 83.00 12.00 4.0 2 3.214 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. For tools, see pages: BLPK (232) DFN A-1.5D-IQ (505) DFN A-8D-IQ (506) HM390 E10-80-07 (104) MTE D (359) MTE D(Double Insert) (359) CC MB-ER DIN 6499 ER Collet Chuck with the MB Modular Boring Connection System Обозначение Designation SS CSI d min d max D3 L L5 L max Ml / CC MB16 ER11M MB16 ER11 0.5 7.0 16.00 25.00 2.50 2.0 0.05 NUT ER11 MINI WRENCH ER11 MINI CC MB20 ER16M MB20 ER16 0.5 10.0 22.00 32.00 1.00 2.0 0.05 NUT ER16 MINI WRENCH ER16 MINI CC MB25 ER20M MB25 ER20 1.0 13.0 28.00 40.00 2.50 2.0 0.14 NUT ER20 MINI WRENCH ER20 MINI CC MB32 ER25M MB32 ER25 1.0 16.0 35.00 42.00 1.50 2.0 0.23 NUT ER25 MINI WRENCH ER25 MINI CC MB40 ER25 MB40 ER25 1.0 16.0 42.00 45.00 5.00 2.0 0.45 NUT ER25 TOP WRENCH ER25 CC MB50 ER25 MB50 ER25 1.0 16.0 42.00 48.00 7.00 2.0 0.67 NUT ER25 TOP WRENCH ER25 CC MB50 ER32 MB50 ER32 2.0 20.0 50.00 55.00 7.00 2.0 0.79 NUT ER32 TOP WRENCH ER32 CC MB63 ER32 MB63 ER32 2.0 20.0 50.00 59.00 12.00 2.0 1.35 NUT ER32 TOP WRENCH ER32 CC MB63 ER40 MB63 ER40 3.0 26.0 63.00 64.00 12.00 2.0 1.55 NUT ER40 TOP WRENCH ER40 For ER collets, see page 947 Optional, should be ordered separately 756 ISCAR
