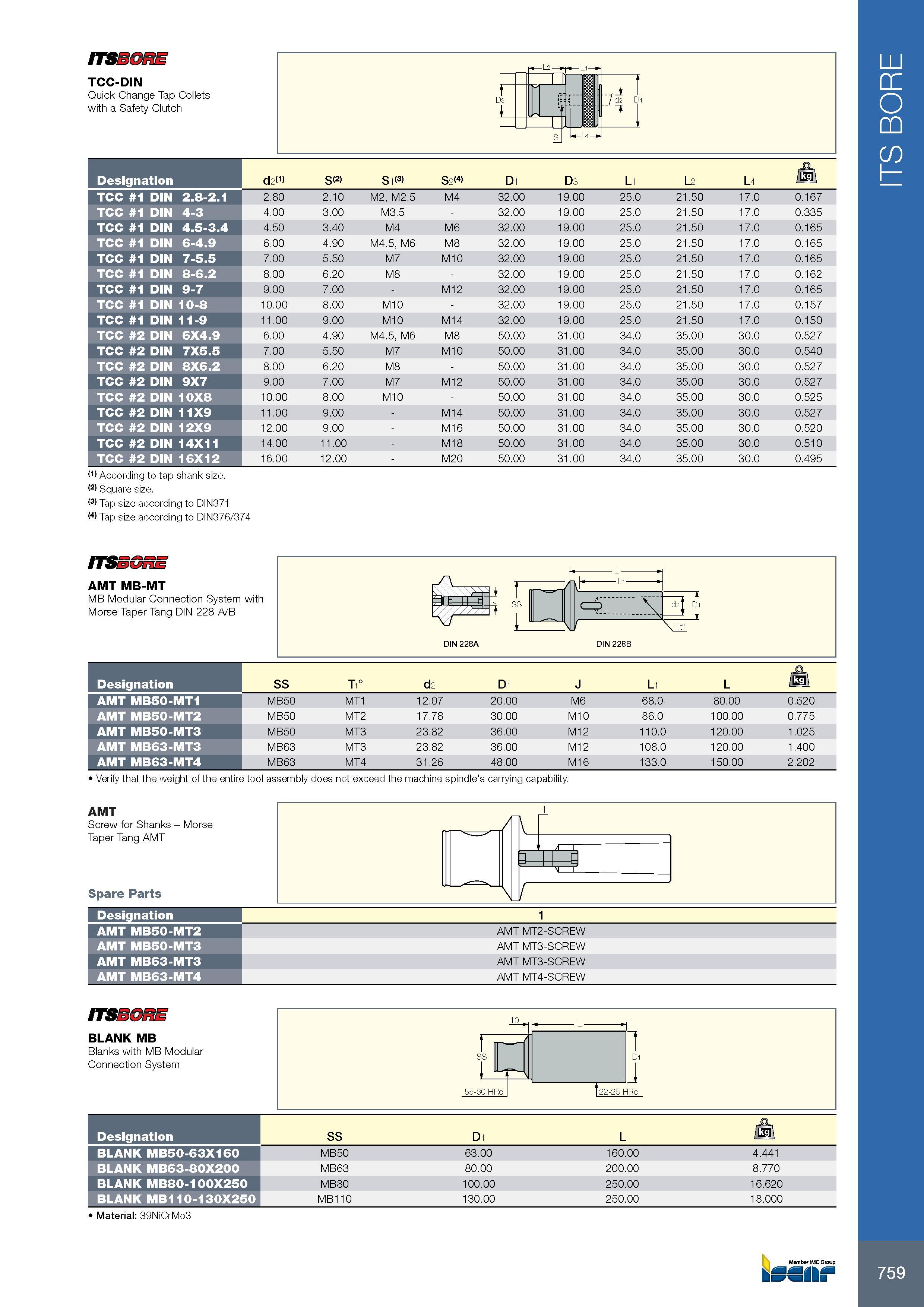

759 ITSSGRE TCC-DIN Quick Change Tap Collets with a Safety Clutch Обозначение Designation d2(1) S(2) S1<3) S2<4) D1 D3 L1 L2 L4 o /kp TCC 1 DIN 2.8-2.1 2.80 2.10 M2, M2.5 M4 32.00 19.00 25.0 21.50 17.0 0.167 TCC 1 DIN 4-3 4.00 3.00 M3.5 - 32.00 19.00 25.0 21.50 17.0 0.335 TCC 1 DIN 4.5-3.4 4.50 3.40 M4 M6 32.00 19.00 25.0 21.50 17.0 0.165 TCC 1 DIN 6-4.9 6.00 4.90 M4.5, M6 M8 32.00 19.00 25.0 21.50 17.0 0.165 TCC 1 DIN 7-5.5 7.00 5.50 M7 M10 32.00 19.00 25.0 21.50 17.0 0.165 TCC 1 DIN 8-6.2 8.00 6.20 M8 - 32.00 19.00 25.0 21.50 17.0 0.162 TCC 1 DIN 9-7 9.00 7.00 - M12 32.00 19.00 25.0 21.50 17.0 0.165 TCC 1 DIN 10-8 10.00 8.00 M10 - 32.00 19.00 25.0 21.50 17.0 0.157 TCC 1 DIN 11-9 11.00 9.00 M10 M14 32.00 19.00 25.0 21.50 17.0 0.150 TCC 2 DIN 6X4.9 6.00 4.90 M4.5, M6 M8 50.00 31.00 34.0 35.00 30.0 0.527 TCC 2 DIN 7X5.5 7.00 5.50 M7 M10 50.00 31.00 34.0 35.00 30.0 0.540 TCC 2 DIN 8X6.2 8.00 6.20 M8 - 50.00 31.00 34.0 35.00 30.0 0.527 TCC 2 DIN 9X7 9.00 7.00 M7 M12 50.00 31.00 34.0 35.00 30.0 0.527 TCC 2 DIN 10X8 10.00 8.00 M10 - 50.00 31.00 34.0 35.00 30.0 0.525 TCC 2 DIN 11X9 11.00 9.00 - M14 50.00 31.00 34.0 35.00 30.0 0.527 TCC 2 DIN 12X9 12.00 9.00 - M16 50.00 31.00 34.0 35.00 30.0 0.520 TCC 2 DIN 14X11 14.00 11.00 - M18 50.00 31.00 34.0 35.00 30.0 0.510 TCC 2 DIN 16X12 16.00 12.00 - M20 50.00 31.00 34.0 35.00 30.0 0.495 (1) According to tap shank size. (2) Square size. (3) Tap size according to DIN371 (4) Tap size according to DIN376/374 1TSSGRE AMT MB-MT MB Modular Connection System with Morse Taper Tang DIN 228 A/B Обозначение Designation SS Tt° d2 D1 J L1 L o AMT MB50-MT1 MB50 MT1 12.07 20.00 M6 68.0 80.00 0.520 AMT MB50-MT2 MB50 MT2 17.78 30.00 M10 86.0 100.00 0.775 AMT MB50-MT3 MB50 MT3 23.82 36.00 M12 110.0 120.00 1.025 AMT MB63-MT3 MB63 MT3 23.82 36.00 M12 108.0 120.00 1.400 AMT MB63-MT4 MB63 MT4 31.26 48.00 M16 133.0 150.00 2.202 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. AMT Screw for Shanks - Morse Taper Tang AMT Spare Parts Обозначение Designation AMT MB50-MT2 AMT MB50-MT3 AMT MB63-MT3 AMT MB63-MT4 AMT MT2-SCREW AMT MT3-SCREW AMT MT3-SCREW AMT MT4-SCREW ITSSGnE BLANK MB Blanks with MB Modular Connection System Обозначение Designation SS D1 L jO /jk \ BLANK MB50-63X160 MB50 63.00 160.00 4.441 BLANK MB63-80X200 MB63 80.00 200.00 8.770 BLANK MB80-100X250 MB80 100.00 250.00 16.620 BLANK MB110-130X250 MB110 130.00 250.00 18.000 Material: 39NiCrMo3 ITS BORE
