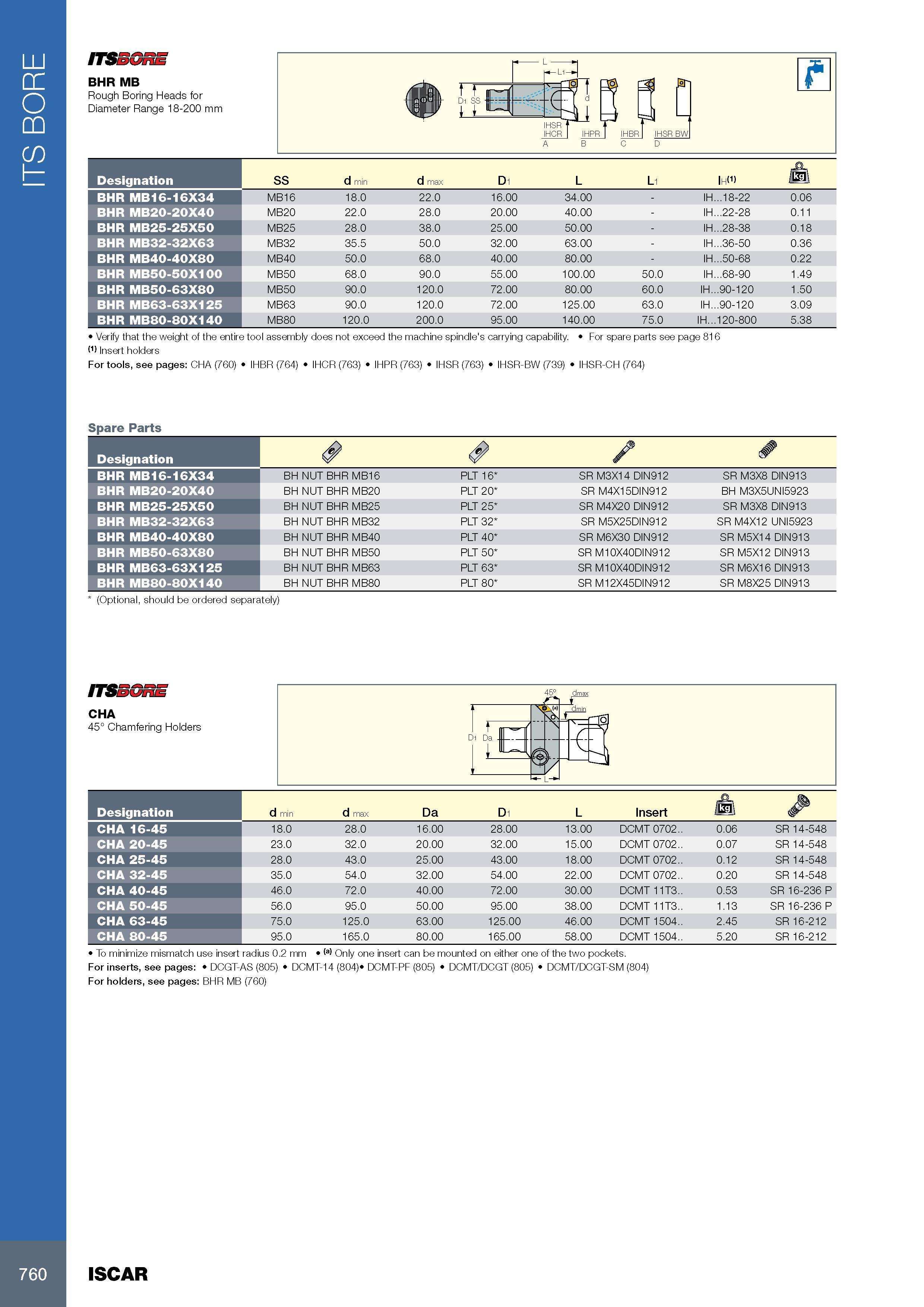

ITS BORE ITSSOnE BHR MB Rough Boring Heads for Diameter Range 18-200 mm + L1 T t jr n i \ Обозначение Designation SS d min d max D1 L L1 Ih<1> O) BHR MB16-16X34 MB16 18.0 22.0 16.00 34.00 - IH...18-22 0.06 BHR MB20-20X40 MB20 22.0 28.0 20.00 40.00 - IH...22-28 0.11 BHR MB25-25X50 MB25 28.0 38.0 25.00 50.00 - IH...28-38 0.18 BHR MB32-32X63 MB32 35.5 50.0 32.00 63.00 - IH...36-50 0.36 BHR MB40-40X80 MB40 50.0 68.0 40.00 80.00 - IH...50-68 0.22 BHR MB50-50X100 MB50 68.0 90.0 55.00 100.00 50.0 IH...68-90 1.49 BHR MB50-63X80 MB50 90.0 120.0 72.00 80.00 60.0 IH...90-120 1.50 BHR MB63-63X125 MB63 90.0 120.0 72.00 125.00 63.0 IH...90-120 3.09 BHR MB80-80X140 MB80 120.0 200.0 95.00 140.00 75.0 IH...120-800 5.38 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. For spare parts see page 816 Insert holders For tools, see pages: CHA (760) IHBR (764) IHCR (763) IHPR (763) IHSR (763) IHSR-BW (739) IHSR-CH (764) Spare Parts Обозначение Designation & & / BHR MB16-16X34 BH NUT BHR MB16 PLT 16 SR M3X14 DIN912 SR M3X8 DIN913 BHR MB20-20X40 BH NUT BHR MB20 PLT 20 SR M4X15DIN912 BH M3X5UNI5923 BHR MB25-25X50 BH NUT BHR MB25 PLT 25 SR M4X20 DIN912 SR M3X8 DIN913 BHR MB32-32X63 BH NUT BHR MB32 PLT 32 SR M5X25DIN912 SR M4X12 UNI5923 BHR MB40-40X80 BH NUT BHR MB40 PLT 40 SR M6X30 DIN912 SR M5X14 DIN913 BHR MB50-63X80 BH NUT BHR MB50 PLT 50 SR M10X40DIN912 SR M5X12 DIN913 BHR MB63-63X125 BH NUT BHR MB63 PLT 63 SR M10X40DIN912 SR M6X16 DIN913 BHR MB80-80X140 BH NUT BHR MB80 PLT 80 SR M12X45DIN912 SR M8X25 DIN913 (Optional, should be ordered separately) ITSSGRE CHA 45° Chamfering Holders Обозначение Designation d min d max Da D1 L Insert O /m CHA 16-45 18.0 28.0 16.00 28.00 13.00 DCMT 0702.. 0.06 SR 14-548 CHA 20-45 23.0 32.0 20.00 32.00 15.00 DCMT 0702.. 0.07 SR 14-548 CHA 25-45 28.0 43.0 25.00 43.00 18.00 DCMT 0702.. 0.12 SR 14-548 CHA 32-45 35.0 54.0 32.00 54.00 22.00 DCMT 0702.. 0.20 SR 14-548 CHA 40-45 46.0 72.0 40.00 72.00 30.00 DCMT 11T3.. 0.53 SR 16-236 P CHA 50-45 56.0 95.0 50.00 95.00 38.00 DCMT 11T3.. 1.13 SR 16-236 P CHA 63-45 75.0 125.0 63.00 125.00 46.00 DCMT 1504.. 2.45 SR 16-212 CHA 80-45 95.0 165.0 80.00 165.00 58.00 DCMT 1504.. 5.20 SR 16-212 To minimize mismatch use insert radius 0.2 mm Only one insert can be mounted on either one of the two pockets. For inserts, see pages: DCGT-AS (805) DCMT-14 (804) DCMT-PF (805) DCMT/DCGT (805) DCMT/DCGT-SM (804) For holders, see pages: BHR MB (760) 760 ISCAR
