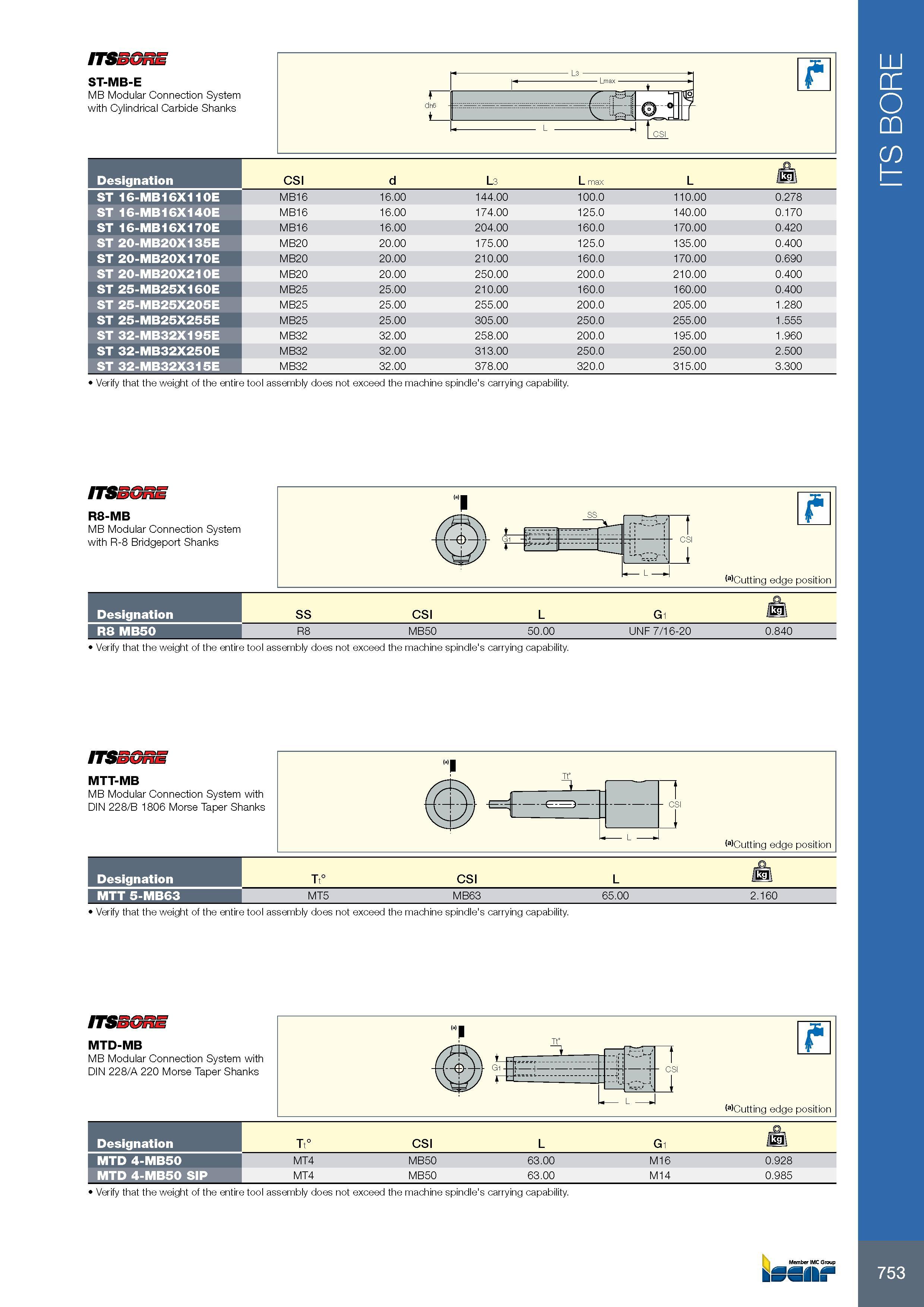

ITSSGRE ST-MB-E MB Modular Connection System with Cylindrical Carbide Shanks Обозначение Designation CSI d L3 L max L ST 16-MB16X110E MB16 16.00 144.00 100.0 110.00 0.278 ST 16-MB16X140E MB16 16.00 174.00 125.0 140.00 0.170 ST 16-MB16X170E MB16 16.00 204.00 160.0 170.00 0.420 ST 20-MB20X135E MB20 20.00 175.00 125.0 135.00 0.400 ST 20-MB20X170E MB20 20.00 210.00 160.0 170.00 0.690 ST 20-MB20X210E MB20 20.00 250.00 200.0 210.00 0.400 ST 25-MB25X160E MB25 25.00 210.00 160.0 160.00 0.400 ST 25-MB25X205E MB25 25.00 255.00 200.0 205.00 1.280 ST 25-MB25X255E MB25 25.00 305.00 250.0 255.00 1.555 ST 32-MB32X195E MB32 32.00 258.00 200.0 195.00 1.960 ST 32-MB32X250E MB32 32.00 313.00 250.0 250.00 2.500 ST 32-MB32X315E MB32 32.00 378.00 320.0 315.00 3.300 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. ITSSGRE R8-MB MB Modular Connection System with R-8 Bridgeport Shanks (a)Cutting edge position Обозначение Designation SS CSI L G1 R8 MB50 R8 MB50 50.00 UNF 7/16-20 0.840 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. ITSSGRE MTT-MB MB Modular Connection System with DIN 228/B 1806 Morse Taper Shanks (a)Cutting edge position Обозначение Designation Tt° CSI L ra MTT 5-MB63 MT5 MB63 65.00 2.160 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. ITSSGRE MTD-MB MB Modular Connection System with DIN 228/A 220 Morse Taper Shanks (a)Cutting edge position Обозначение Designation Tt° CSI L G1 Mil MTD 4-MB50 MT4 MB50 63.00 M16 0.928 MTD 4-MB50 SIP MT4 MB50 63.00 M14 0.985 Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. 753 ITS BORE
