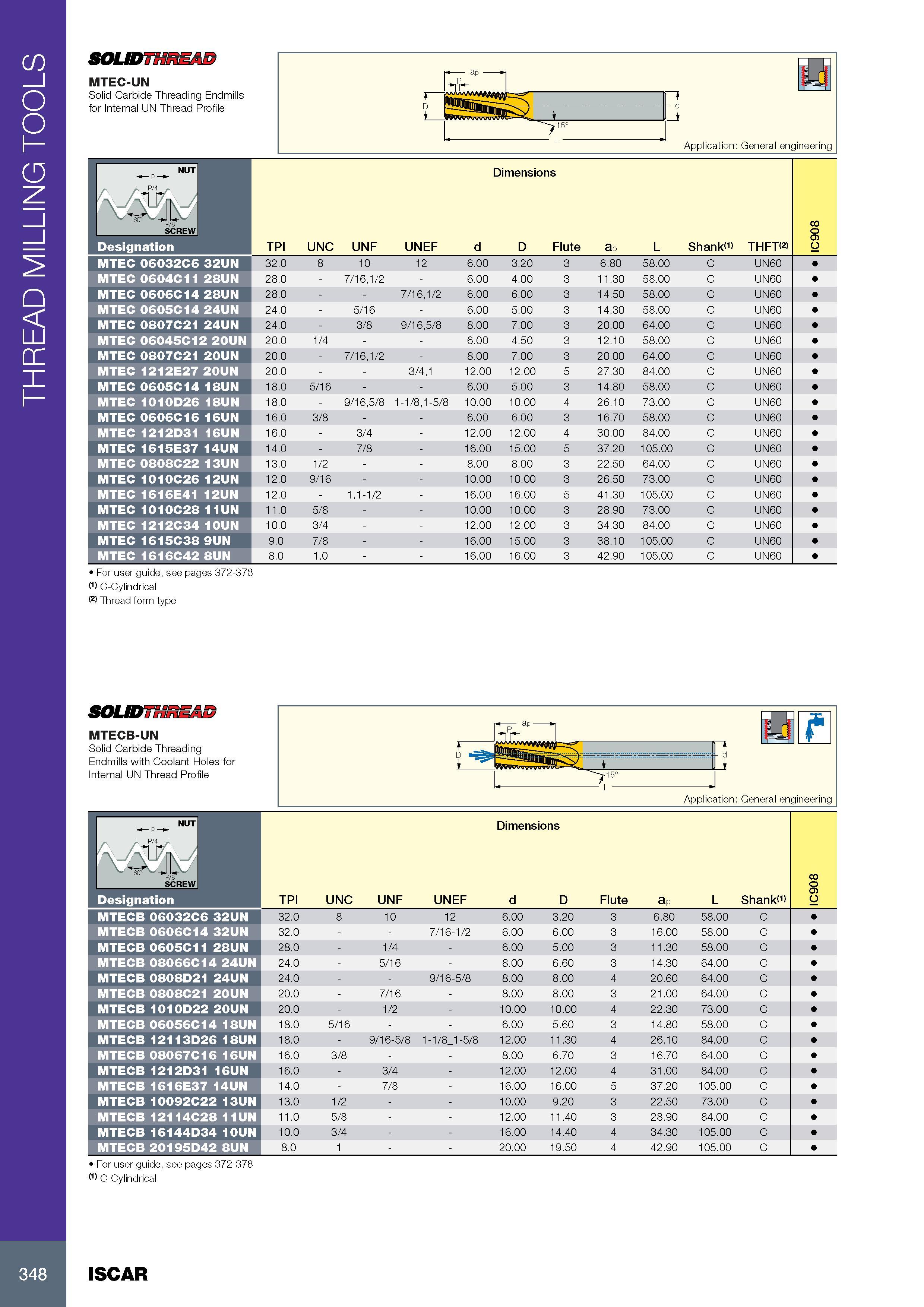

THREAD MILLING TOOLS SOLID7HREAD MTEC-UN Solid Carbide Threading Endmills for Internal UN Thread Profile MTEC 06032C6 32UN 32.0 8 10 12 6.00 3.20 3 6.80 58.00 C UN60 MTEC 0604C11 28UN 28.0 - 7/16,1/2 - 6.00 4.00 3 11.30 58.00 C UN60 MTEC 0606C14 28UN 28.0 7/16,1/2 6.00 6.00 3 14.50 58.00 C UN60 MTEC 0605C14 24UN 24.0 - 5/16 - 6.00 5.00 3 14.30 58.00 C UN60 MTEC 0807C21 24UN 24.0 - 3/8 9/16,5/8 8.00 7.00 3 20.00 64.00 C UN60 MTEC 06045C12 20UN 20.0 1/4 6.00 4.50 3 12.10 58.00 C UN60 MTEC 0807C21 20UN 20.0 - 7/16,1/2 - 8.00 7.00 3 20.00 64.00 C UN60 MTEC 1212E27 20UN 20.0 3/4,1 12.00 12.00 5 27.30 84.00 C UN60 MTEC 0605C14 18UN 18.0 5/16 6.00 5.00 3 14.80 58.00 C UN60 MTEC 1010D26 18UN 18.0 - 9/16,5/8 1-1/8,1-5/8 10.00 10.00 4 26.10 73.00 C UN60 MTEC 0606C16 16UN 16.0 3/8 6.00 6.00 3 16.70 58.00 C UN60 MTEC 1212D31 16UN 16.0 - 3/4 - 12.00 12.00 4 30.00 84.00 C UN60 MTEC 1615E37 14UN 14.0 - 7/8 - 16.00 15.00 5 37.20 105.00 C UN60 MTEC 0808C22 13UN 13.0 1/2 8.00 8.00 3 22.50 64.00 C UN60 MTEC 1010C26 12UN 12.0 9/16 10.00 10.00 3 26.50 73.00 C UN60 MTEC 1616E41 12UN 12.0 - 1,1-1/2 - 16.00 16.00 5 41.30 105.00 C UN60 MTEC 1010C28 11UN 11.0 5/8 10.00 10.00 3 28.90 73.00 C UN60 MTEC 1212C34 10UN 10.0 3/4 12.00 12.00 3 34.30 84.00 C UN60 MTEC 1615C38 9UN 9.0 7/8 16.00 15.00 3 38.10 105.00 C UN60 MTEC 1616C42 8UN 8.0 1.0 16.00 16.00 3 42.90 105.00 C UN60 For user guide, see pages 372-378 (1) C-Cylindrical (2) Thread form type SOUDTHREAD MTECB-UN Solid Carbide Threading Endmills with Coolant Holes for Internal UN Thread Profile IS 15° Application: General engineering Размеры в мм Dimensions Обозначение Designation TPI UNC UNF UNEF d D Flute ap L Shank 05 g MTECB 06032C6 32UN 32.0 8 10 12 6.00 3.20 3 6.80 58.00 C MTECB 0606C14 32UN 32.0 7/16-1/2 6.00 6.00 3 16.00 58.00 C MTECB 0605C11 28UN 28.0 - 1/4 - 6.00 5.00 3 11.30 58.00 C MTECB 08066C14 24UN 24.0 - 5/16 - 8.00 6.60 3 14.30 64.00 C MTECB 0808D21 24UN 24.0 9/16-5/8 8.00 8.00 4 20.60 64.00 C MTECB 0808C21 20UN 20.0 - 7/16 - 8.00 8.00 3 21.00 64.00 C MTECB 1010D22 20UN 20.0 - 1/2 - 10.00 10.00 4 22.30 73.00 C MTECB 06056C14 18UN 18.0 5/16 6.00 5.60 3 14.80 58.00 C MTECB 12113D26 18UN 18.0 - 9/16-5/8 1-1/8 1-5/8 12.00 11.30 4 26.10 84.00 C MTECB 08067C16 16UN 16.0 3/8 8.00 6.70 3 16.70 64.00 C MTECB 1212D31 16UN 16.0 - 3/4 - 12.00 12.00 4 31.00 84.00 C MTECB 1616E37 14UN 14.0 - 7/8 - 16.00 16.00 5 37.20 105.00 C MTECB 10092C22 13UN 13.0 1/2 10.00 9.20 3 22.50 73.00 C MTECB 12114C28 11UN 11.0 5/8 12.00 11.40 3 28.90 84.00 C MTECB 16144D34 10UN 10.0 3/4 16.00 14.40 4 34.30 105.00 C MTECB 20195D42 8UN 8.0 1 20.00 19.50 4 42.90 105.00 C For user guide, see pages 372-378 (1) C-Cylindrical 348 ISCAR
