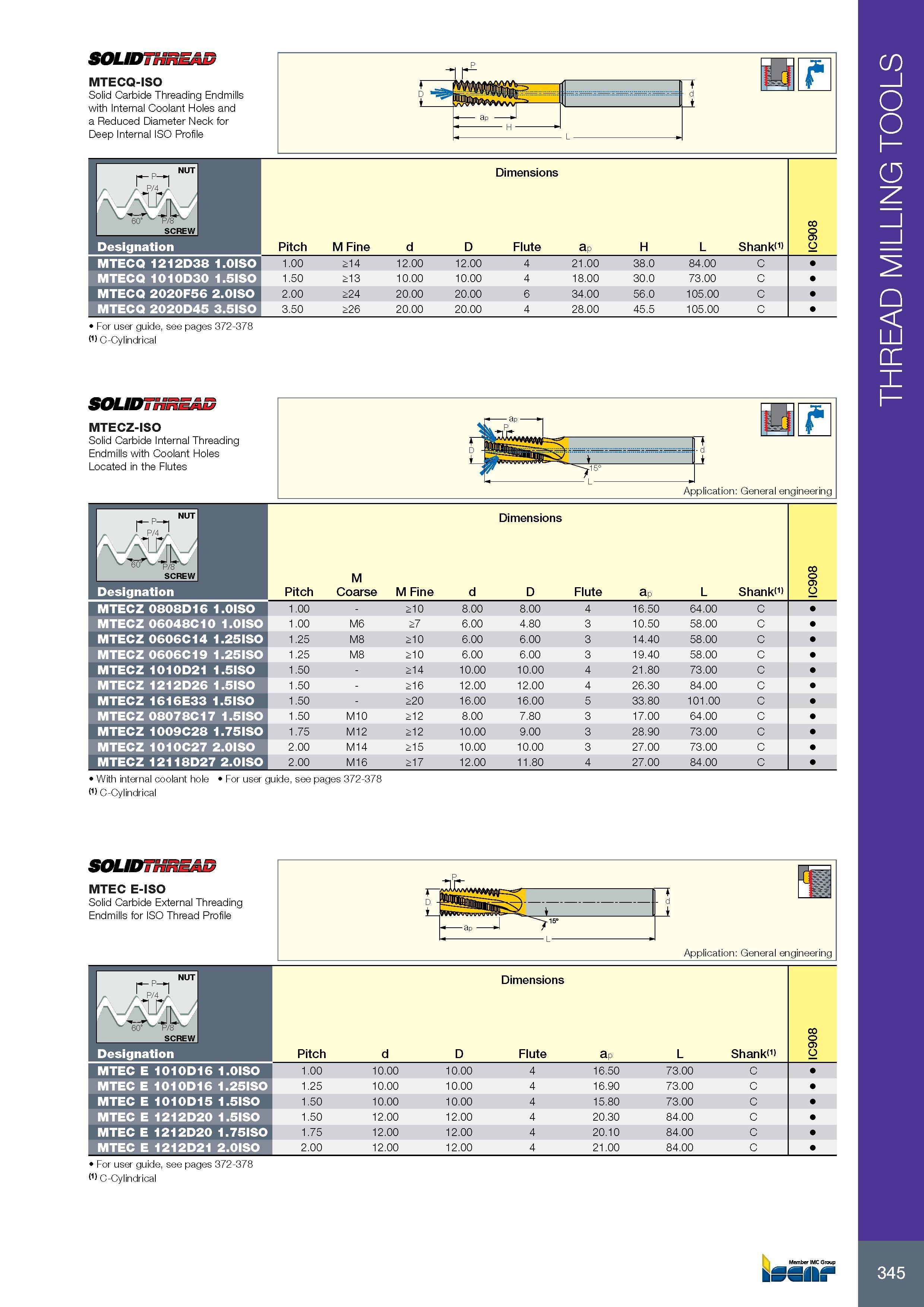

SOUDTHRSAD MTECQ-ISO Solid Carbide Threading Endmills with Internal Coolant Holes and a Reduced Diameter Neck for Deep Internal ISO Profile usa Pitch M Fine Размеры в мм Dimensions Flute ap Shank(1) MTECQ 1212D38 I.OISO 1.00 >14 12.00 12.00 4 21.00 38.0 84.00 C MTECQ 1010D30 1.5ISO 1.50 >13 10.00 10.00 4 18.00 30.0 73.00 C MTECQ 2020F56 2.OISO 2.00 >24 20.00 20.00 6 34.00 56.0 105.00 C MTECQ 2020D45 3.5ISO 3.50 >26 20.00 20.00 4 28.00 45.5 105.00 C 8 0 9 C For user guide, see pages 372-378 (1) C-Cylindrical SOUDTHREAB MTECZ-ISO Solid Carbide Internal Threading Endmills with Coolant Holes Located in the Flutes Application: General engineering NUT rP Размеры в мм Dimensions IC908 A SCREW Pitch M Coarse M Fine d D Flute ap L Shank Обозначение Designation MTECZ 0808D16 1.0ISO 1.00 - >10 8.00 8.00 4 16.50 64.00 C MTECZ 06048C10 1.0ISO 1.00 M6 >7 6.00 4.80 3 10.50 58.00 C MTECZ 0606C14 1.25ISO 1.25 M8 >10 6.00 6.00 3 14.40 58.00 C MTECZ 0606C19 1.25ISO 1.25 M8 >10 6.00 6.00 3 19.40 58.00 C MTECZ 1010D21 1.5ISO 1.50 - >14 10.00 10.00 4 21.80 73.00 C MTECZ 1212D26 1.5ISO 1.50 - >16 12.00 12.00 4 26.30 84.00 C MTECZ 1616E33 1.5ISO 1.50 - >20 16.00 16.00 5 33.80 101.00 C MTECZ 08078C17 1.5ISO 1.50 M10 >12 8.00 7.80 3 17.00 64.00 C MTECZ 1009C28 1.75ISO 1.75 M12 >12 10.00 9.00 3 28.90 73.00 C MTECZ 1010C27 2.0ISO 2.00 M14 >15 10.00 10.00 3 27.00 73.00 C MTECZ 12118D27 2.0ISO 2.00 M16 >17 12.00 11.80 4 27.00 84.00 C With internal coolant hole For user guide, see pages 372-378 (1) C-Cylindrical SOLID7H MTEC E-ISO Solid Carbide External Threading Endmills for ISO Thread Profile Application: General engineering 1 NUT r PPH Размеры в мм Dimensions IC908 SCREW Pitch d D Flute ap L Shank Обозначение Designation MTEC E 1010D16 1.0ISO 1.00 10.00 10.00 4 16.50 73.00 C MTEC E 1010D16 1.25ISO 1.25 10.00 10.00 4 16.90 73.00 C MTEC E 1010D15 1.5ISO 1.50 10.00 10.00 4 15.80 73.00 C MTEC E 1212D20 1.5ISO 1.50 12.00 12.00 4 20.30 84.00 C MTEC E 1212D20 1.75ISO 1.75 12.00 12.00 4 20.10 84.00 C MTEC E 1212D21 2.0ISO 2.00 12.00 12.00 4 21.00 84.00 C For user guide, see pages 372-378 (1) C-Cylindrical Member IMC Group kSSII t H L d D H L 345 THREAD MILLING TOOLS
