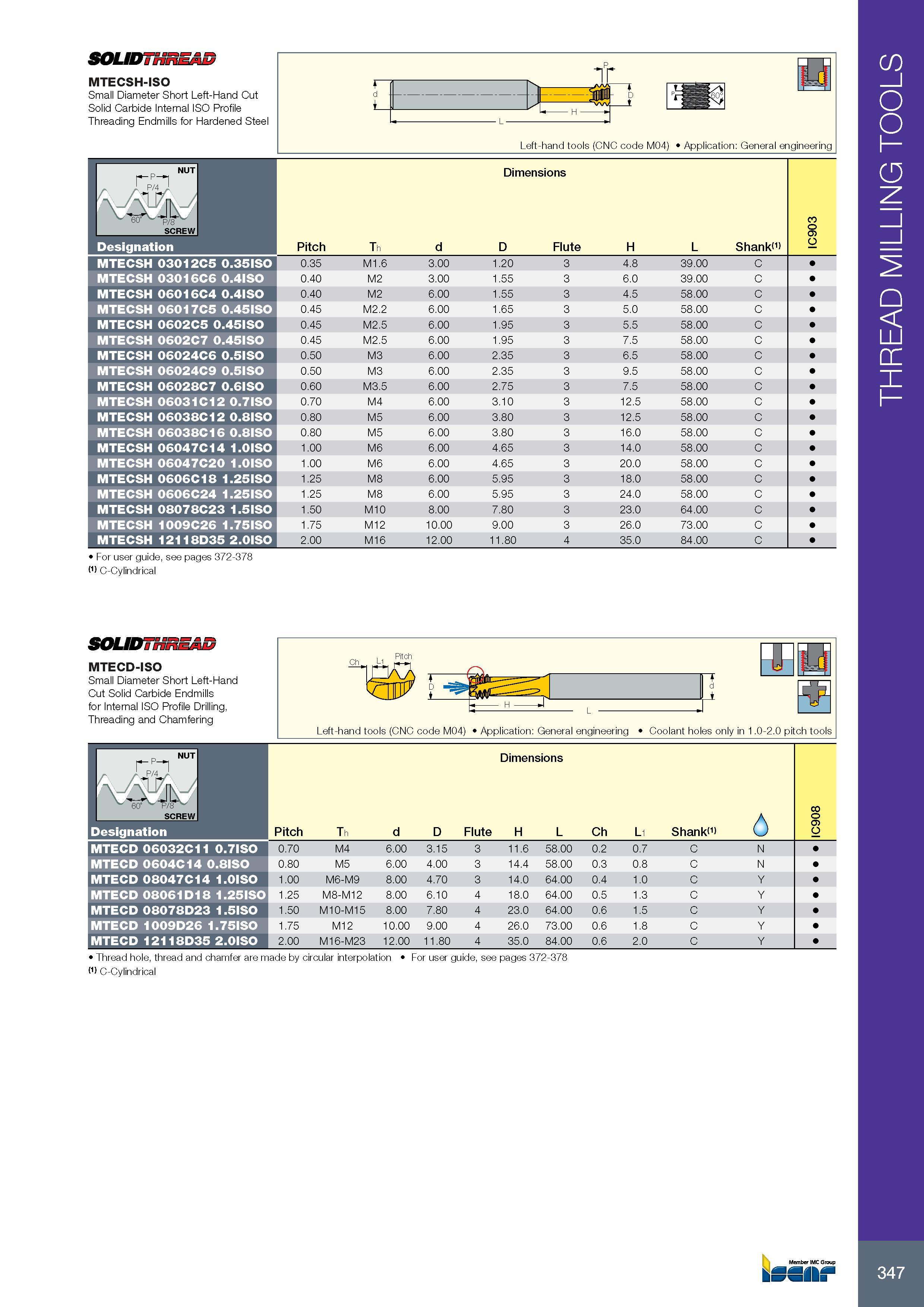

SOUDTHREAD MTECSH-ISO Small Diameter Short Left-Hand Cut Solid Carbide Internal ISO Profile Threading Endmills for Hardened Steel Left-hand tools (CNC code M04) Application: General engineering rPn 1 P/4 1 Размеры в мм Dimensions Обозначение Designation Pitch Th d D Flute H L Shank IC MTECSH 03012C5 0.35ISO 0.35 M1.6 3.00 1.20 3 4.8 39.00 C MTECSH 03016C6 0.4ISO 0.40 M2 3.00 1.55 3 6.0 39.00 C MTECSH 06016C4 0.4IS0 0.40 M2 6.00 1.55 3 4.5 58.00 C MTECSH 06017C5 0.45IS0 0.45 M2.2 6.00 1.65 3 5.0 58.00 C MTECSH 0602C5 0.45IS0 0.45 M2.5 6.00 1.95 3 5.5 58.00 C MTECSH 0602C7 0.45IS0 0.45 M2.5 6.00 1.95 3 7.5 58.00 C MTECSH 06024C6 0.5IS0 0.50 M3 6.00 2.35 3 6.5 58.00 C MTECSH 06024C9 0.5IS0 0.50 M3 6.00 2.35 3 9.5 58.00 C MTECSH 06028C7 0.6IS0 0.60 M3.5 6.00 2.75 3 7.5 58.00 C MTECSH 06031C12 0.7IS0 0.70 M4 6.00 3.10 3 12.5 58.00 C MTECSH 06038C12 0.8IS0 0.80 M5 6.00 3.80 3 12.5 58.00 C MTECSH 06038C16 0.8IS0 0.80 M5 6.00 3.80 3 16.0 58.00 C MTECSH 06047C14 1.0IS0 1.00 M6 6.00 4.65 3 14.0 58.00 C MTECSH 06047C20 1.0IS0 1.00 M6 6.00 4.65 3 20.0 58.00 C MTECSH 0606C18 1.25IS0 1.25 M8 6.00 5.95 3 18.0 58.00 C MTECSH 0606C24 1.25IS0 1.25 M8 6.00 5.95 3 24.0 58.00 C MTECSH 08078C23 1.5IS0 1.50 M10 8.00 7.80 3 23.0 64.00 C MTECSH 1009C26 1.75IS0 1.75 M12 10.00 9.00 3 26.0 73.00 C MTECSH 12118D35 2.0IS0 2.00 M16 12.00 11.80 4 35.0 84.00 C co 0 For user guide, see pages 372-378 (1) C-Cylindrical SOLIDTH MTECD-ISO Small Diameter Short Left-Hand Cut Solid Carbide Endmills for Internal ISO Profile Drilling, Threading and Chamfering -T D d j u 1 L RJ Left-hand tools (CNC code M04) Application: General engineering Coolant holes only in 1.0-2.0 pitch tools i NUT Размеры в мм Dimensions IC908 Mi SCREW Pitch Th d D Flute H L Ch L1 Shank 6 Обозначение Designation MTECD 06032C11 0.7IS0 0.70 M4 6.00 3.15 3 11.6 58.00 0.2 0.7 C N MTECD 0604C14 0.8IS0 0.80 M5 6.00 4.00 3 14.4 58.00 0.3 0.8 C N MTECD 08047C14 1.0IS0 1.00 M6-M9 8.00 4.70 3 14.0 64.00 0.4 1.0 C Y MTECD 08061D18 1.25IS0 1.25 M8-M12 8.00 6.10 4 18.0 64.00 0.5 1.3 C Y MTECD 08078D23 1.5IS0 1.50 M10-M15 8.00 7.80 4 23.0 64.00 0.6 1.5 C Y MTECD 1009D26 1.75IS0 1.75 M12 10.00 9.00 4 26.0 73.00 0.6 1.8 C Y MTECD 12118D35 2.0IS0 2.00 M16-M23 12.00 11.80 4 35.0 84.00 0.6 2.0 C Y Thread hole, thread and chamfer are made by circular interpolation For user guide, see pages 372-378 (1) C-Cylindrical Member IMC Group kSSII t NUT Pitch Ch 347 THREAD MILLING TOOLS
