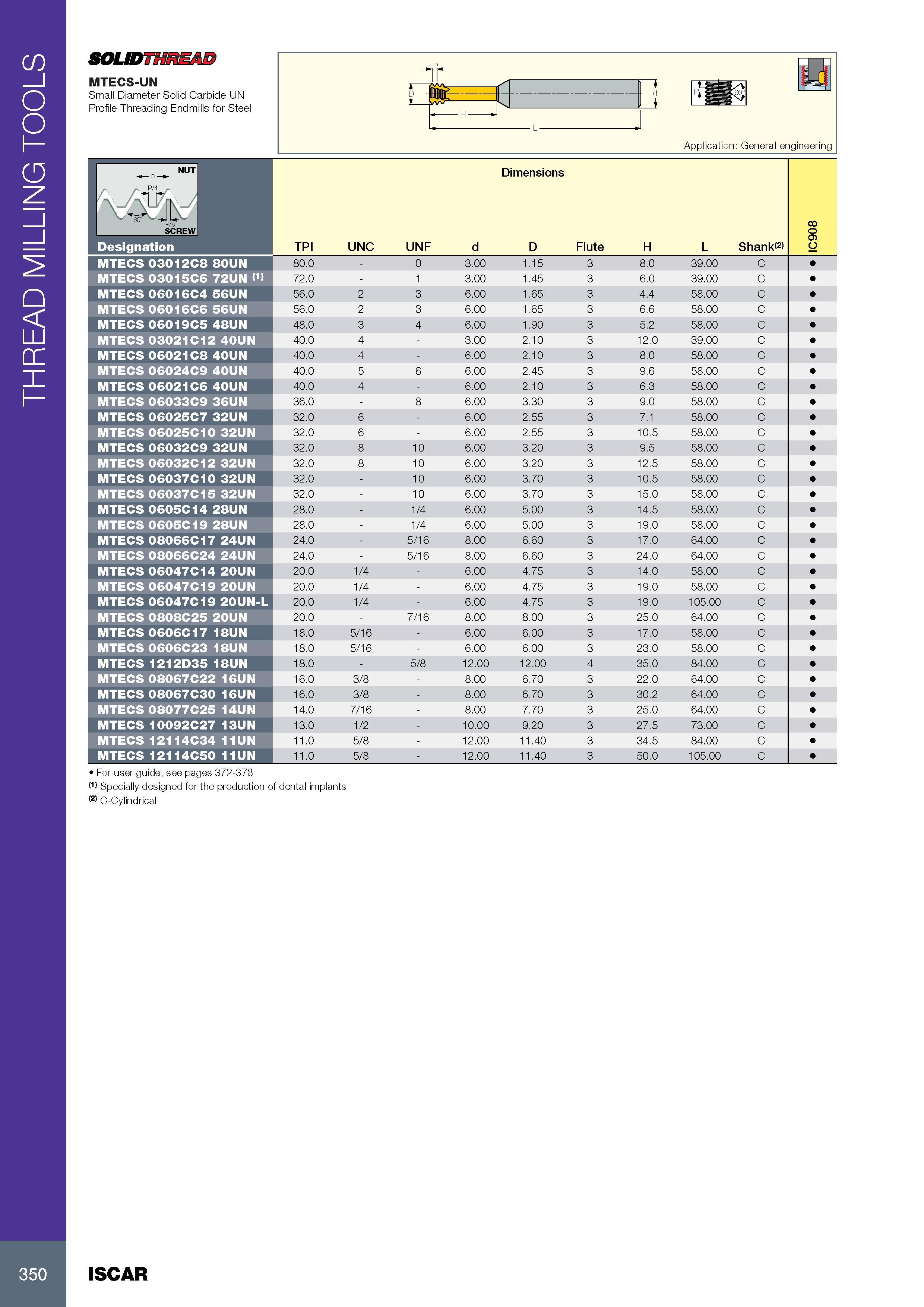

THREAD MILLING TOOLS SOUDTHREAD MTECS-UN Small Diameter Solid Carbide UN Profile Threading Endmills for Steel nr n Hfr U D Bjj -1 Application: General engineering rPn Размеры в мм Dimensions Обозначение Designation TPI UNC UNF d D Flute H L Shank<2> 9 IC MTECS 03012C8 80UN 80.0 - 0 3.00 1.15 3 8.0 39.00 C MTECS 03015C6 72UN <1> 72.0 - 1 3.00 1.45 3 6.0 39.00 C MTECS 06016C4 56UN 56.0 2 3 6.00 1.65 3 4.4 58.00 C MTECS 06016C6 56UN 56.0 2 3 6.00 1.65 3 6.6 58.00 C MTECS 06019C5 48UN 48.0 3 4 6.00 1.90 3 5.2 58.00 C MTECS 03021C12 40UN 40.0 4 - 3.00 2.10 3 12.0 39.00 C MTECS 06021C8 40UN 40.0 4 - 6.00 2.10 3 8.0 58.00 C MTECS 06024C9 40UN 40.0 5 6 6.00 2.45 3 9.6 58.00 C MTECS 06021C6 40UN 40.0 4 - 6.00 2.10 3 6.3 58.00 C MTECS 06033C9 36UN 36.0 - 8 6.00 3.30 3 9.0 58.00 C MTECS 06025C7 32UN 32.0 6 - 6.00 2.55 3 7.1 58.00 C MTECS 06025C10 32UN 32.0 6 - 6.00 2.55 3 10.5 58.00 C MTECS 06032C9 32UN 32.0 8 10 6.00 3.20 3 9.5 58.00 C MTECS 06032C12 32UN 32.0 8 10 6.00 3.20 3 12.5 58.00 C MTECS 06037C10 32UN 32.0 - 10 6.00 3.70 3 10.5 58.00 C MTECS 06037C15 32UN 32.0 - 10 6.00 3.70 3 15.0 58.00 C MTECS 0605C14 28UN 28.0 - 1/4 6.00 5.00 3 14.5 58.00 C MTECS 0605C19 28UN 28.0 - 1/4 6.00 5.00 3 19.0 58.00 C MTECS 08066C17 24UN 24.0 - 5/16 8.00 6.60 3 17.0 64.00 C MTECS 08066C24 24UN 24.0 - 5/16 8.00 6.60 3 24.0 64.00 C MTECS 06047C14 20UN 20.0 1/4 - 6.00 4.75 3 14.0 58.00 C MTECS 06047C19 20UN 20.0 1/4 - 6.00 4.75 3 19.0 58.00 C MTECS 06047C19 20UN-L 20.0 1/4 - 6.00 4.75 3 19.0 105.00 C MTECS 0808C25 20UN 20.0 - 7/16 8.00 8.00 3 25.0 64.00 C MTECS 0606C17 18UN 18.0 5/16 - 6.00 6.00 3 17.0 58.00 C MTECS 0606C23 18UN 18.0 5/16 - 6.00 6.00 3 23.0 58.00 C MTECS 1212D35 18UN 18.0 - 5/8 12.00 12.00 4 35.0 84.00 C MTECS 08067C22 16UN 16.0 3/8 - 8.00 6.70 3 22.0 64.00 C MTECS 08067C30 16UN 16.0 3/8 - 8.00 6.70 3 30.2 64.00 C MTECS 08077C25 14UN 14.0 7/16 - 8.00 7.70 3 25.0 64.00 C MTECS 10092C27 13UN 13.0 1/2 - 10.00 9.20 3 27.5 73.00 C MTECS 12114C34 11UN 11.0 5/8 - 12.00 11.40 3 34.5 84.00 C MTECS 12114C50 11UN 11.0 5/8 - 12.00 11.40 3 50.0 105.00 C For user guide, see pages 372-378 i1) Specially designed for the production of dental implants (2) C-Cylindrical P H L 350 ISCAR
