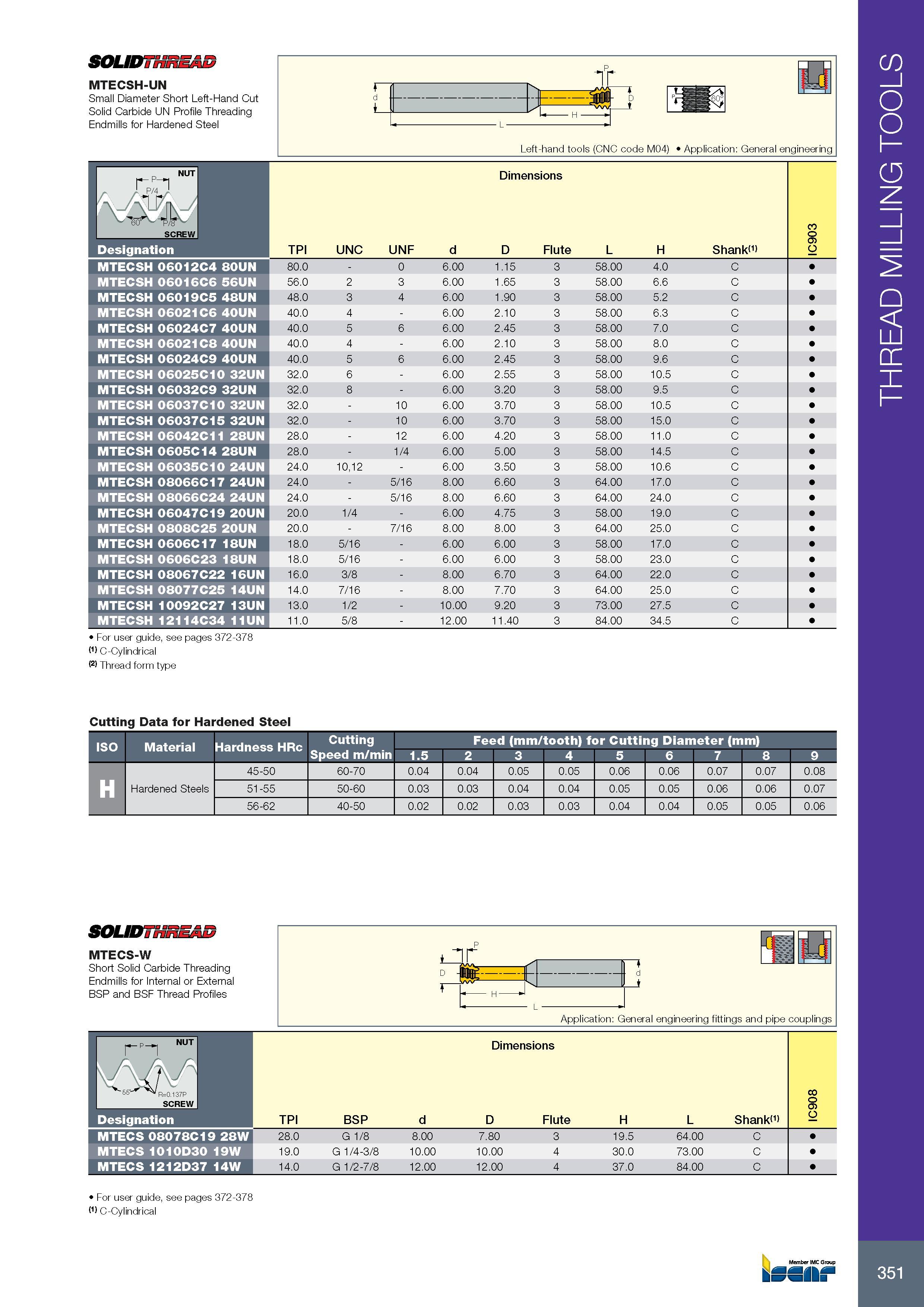

SOUDTHREAD MTECSH-UN Small Diameter Short Left-Hand Cut Solid Carbide UN Profile Threading Endmills for Hardened Steel Ts lr Left-hand tools (CNC code M04) Application: General engineering Размеры в мм Dimensions Обозначение Designation TPI UNC UNF d D Flute L H Shank 9 IC MTECSH 06012C4 80UN 80.0 - 0 6.00 1.15 3 58.00 4.0 C MTECSH 06016C6 56UN 56.0 2 3 6.00 1.65 3 58.00 6.6 C MTECSH 06019C5 48UN 48.0 3 4 6.00 1.90 3 58.00 5.2 C MTECSH 06021C6 40UN 40.0 4 - 6.00 2.10 3 58.00 6.3 C MTECSH 06024C7 40UN 40.0 5 6 6.00 2.45 3 58.00 7.0 C MTECSH 06021C8 40UN 40.0 4 - 6.00 2.10 3 58.00 8.0 C MTECSH 06024C9 40UN 40.0 5 6 6.00 2.45 3 58.00 9.6 C MTECSH 06025C10 32UN 32.0 6 - 6.00 2.55 3 58.00 10.5 C MTECSH 06032C9 32UN 32.0 8 - 6.00 3.20 3 58.00 9.5 C MTECSH 06037C10 32UN 32.0 - 10 6.00 3.70 3 58.00 10.5 C MTECSH 06037C15 32UN 32.0 - 10 6.00 3.70 3 58.00 15.0 C MTECSH 06042C11 28UN 28.0 - 12 6.00 4.20 3 58.00 11.0 C MTECSH 0605C14 28UN 28.0 - 1/4 6.00 5.00 3 58.00 14.5 C MTECSH 06035C10 24UN 24.0 10,12 - 6.00 3.50 3 58.00 10.6 C MTECSH 08066C17 24UN 24.0 - 5/16 8.00 6.60 3 64.00 17.0 C MTECSH 08066C24 24UN 24.0 - 5/16 8.00 6.60 3 64.00 24.0 C MTECSH 06047C19 20UN 20.0 1/4 - 6.00 4.75 3 58.00 19.0 C MTECSH 0808C25 20UN 20.0 - 7/16 8.00 8.00 3 64.00 25.0 C MTECSH 0606C17 18UN 18.0 5/16 - 6.00 6.00 3 58.00 17.0 C MTECSH 0606C23 18UN 18.0 5/16 - 6.00 6.00 3 58.00 23.0 C MTECSH 08067C22 16UN 16.0 3/8 - 8.00 6.70 3 64.00 22.0 C MTECSH 08077C25 14UN 14.0 7/16 - 8.00 7.70 3 64.00 25.0 C MTECSH 10092C27 13UN 13.0 1/2 - 10.00 9.20 3 73.00 27.5 C MTECSH12114C34 11UN 11.0 5/8 - 12.00 11.40 3 84.00 34.5 C For user guide, see pages 372-378 (1) C-Cylindrical (2) Thread form type L Cutting Data for Hardened Steel Cutting Feed (mm/tooth) for Cutting Diameter (mm) Speed m/min 1.5 2 3 4 5 6 7 8 9 45-50 60-70 0.04 0.04 0.05 0.05 0.06 0.06 0.07 0.07 0.08 Hardened Steels 51-55 50-60 0.03 0.03 0.04 0.04 0.05 0.05 0.06 0.06 0.07 56-62 40-50 0.02 0.02 0.03 0.03 0.04 0.04 0.05 0.05 0.06 SOUDTHREAD MTECS-W Short Solid Carbide Threading Endmills for Internal or External BSP and BSF Thread Profiles nut Размеры в мм Dimensions 66' VR=o.137p SCREW IC908 Обозначение Designation TPI BSP d D Flute H L Shank MTECS 08078C19 28W 28.0 G 1/8 8.00 7.80 3 19.5 64.00 C MTECS 1010D30 19W 19.0 G 1/4-3/8 10.00 10.00 4 30.0 73.00 C MTECS 1212D37 14W 14.0 G 1/2-7/8 12.00 12.00 4 37.0 84.00 C For user guide, see pages 372-378 (1) C-Cylindrical 351 THREAD MILLING TOOLS
