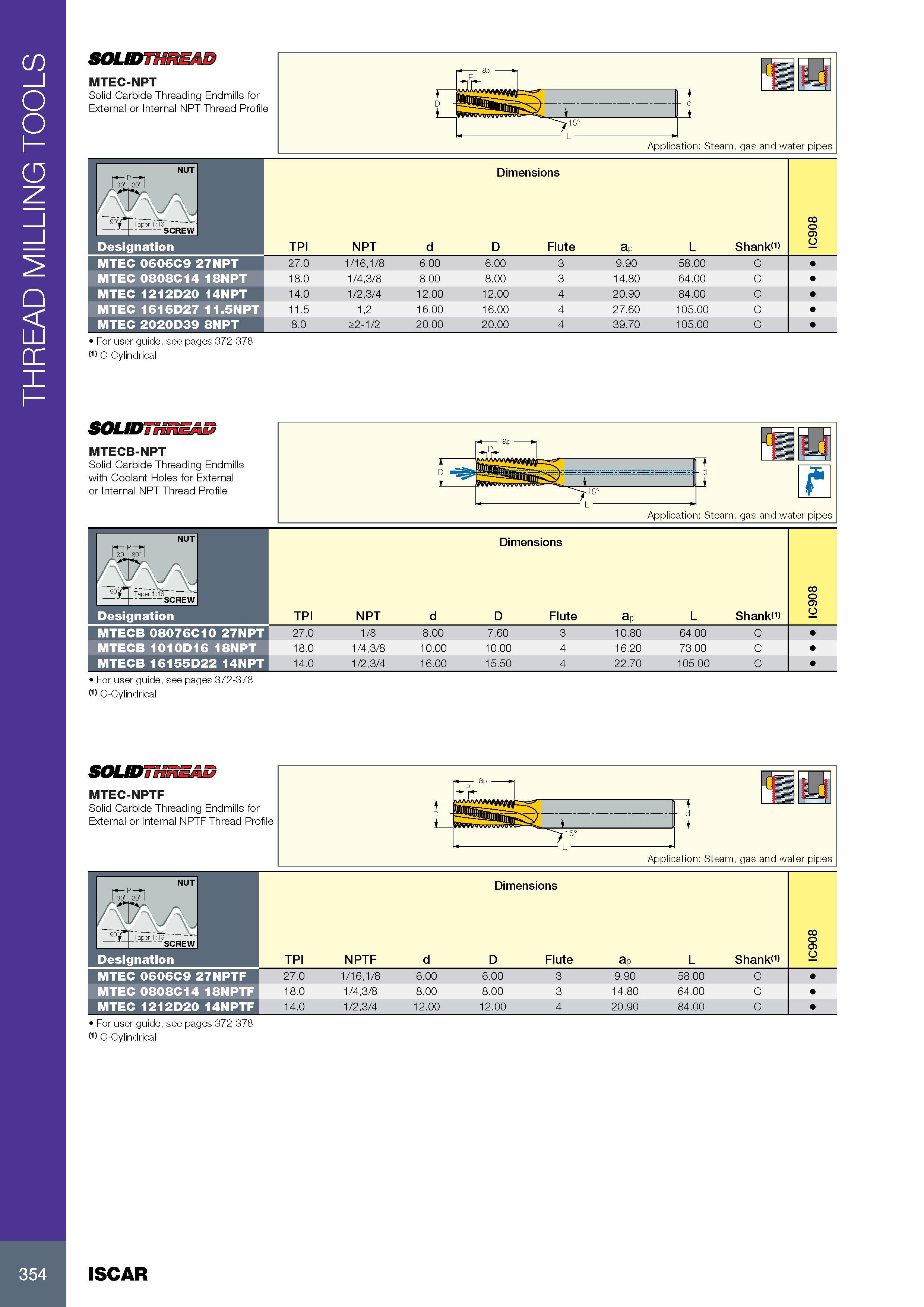

THREAD MILLING TOOLS SOUDTHREAD MTEC-NPT Solid Carbide Threading Endmills for External or Internal NPT Thread Profile ap j D d t L Application: Steam, gas and water pipes r l/v vi 90 p Taper 1:16 -SCREW Размеры в мм Dimensions Обозначение Designation TPI NPT d D Flute ap L Shank IC MTEC 0606C9 27NPT 27.0 1/16,1/8 6.00 6.00 3 9.90 58.00 C MTEC 0808C14 18NPT 18.0 1/4,3/8 8.00 8.00 3 14.80 64.00 C MTEC 1212D20 14NPT 14.0 1/2,3/4 12.00 12.00 4 20.90 84.00 C MTEC 1616D27 11.5NPT 11.5 1,2 16.00 16.00 4 27.60 105.00 C MTEC 2020D39 8NPT 8.0 >2-1/2 20.00 20.00 4 39.70 105.00 C For user guide, see pages 372-378 8 0 9 (1) C-Cylindrical SOUDTHREAD MTECB-NPT Solid Carbide Threading Endmills with Coolant Holes for External or Internal NPT Thread Profile Application: Steam, gas and water pipes i NUT p-P-1 1 30° 30° 1 Размеры в мм Dimensions 9°n Tape 1: SCREW co 0 9 IC Обозначение Designation TPI NPT d D Flute ap L Shanks MTECB 08076C10 27NPT 27.0 1/8 8.00 7.60 3 10.80 64.00 C MTECB 1010D16 18NPT 18.0 1/4,3/8 10.00 10.00 4 16.20 73.00 C MTECB 16155D22 14NPT 14.0 1/2,3/4 16.00 15.50 4 22.70 105.00 C For user guide, see pages 372-378 (1) C-Cylindrical SOUDTHREAD MTEC-NPTF Solid Carbide Threading Endmills for External or Internal NPTF Thread Profile NUT 1 30° 30° 1 Размеры в мм Dimensions 90j TTape 1: H SCREW co 0 9 IC Обозначение Designation TPI NPTF d D Flute ap L Shank MTEC 0606C9 27NPTF 27.0 1/16,1/8 6.00 6.00 3 9.90 58.00 C MTEC 0808C14 18NPTF 18.0 1/4,3/8 8.00 8.00 3 14.80 64.00 C MTEC 1212D20 14NPTF 14.0 1/2,3/4 12.00 12.00 4 20.90 84.00 C For user guide, see pages 372-378 (1) C-Cylindrical 354 ISCAR
