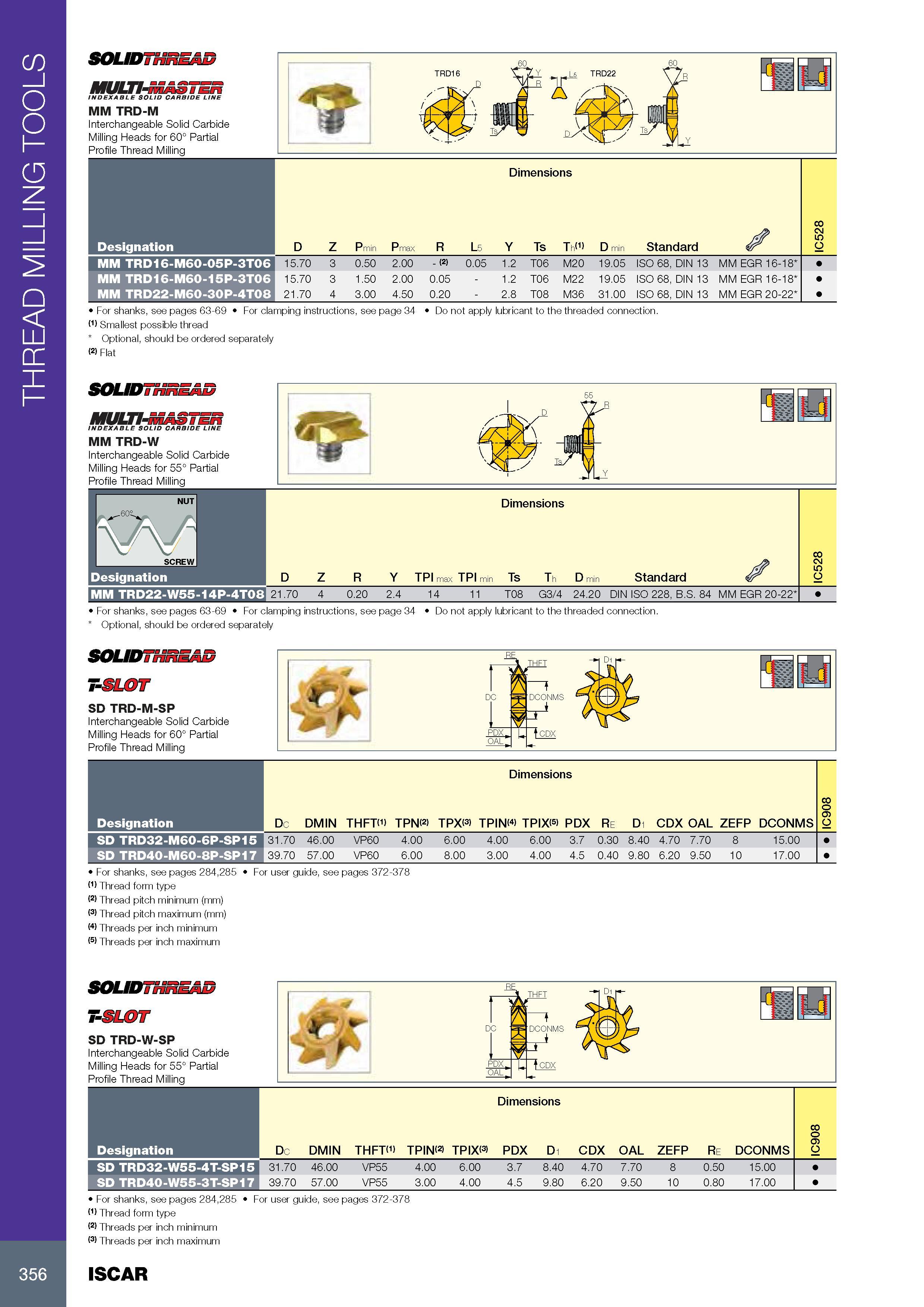

THREAD MILLING TOOLS 356 SOUDTHRk MULT/-, INDEXABLE SOLID CARBIDE LINE MM TRD-M Interchangeable Solid Carbide Milling Heads for 60° Partial Profile Thread Milling Y L5 TRD22 R 11 R A /"tN Размеры в мм Dimensions Обозначение Designation D Z Pmin Pmax R L5 Y Ts T hL1) D min Standard IC528 MM TRD16-M60-05P-3T06 15.70 3 0.50 2.00 - (2) 0.05 1.2 T06 M20 19.05 ISO 68, DIN 13 MM EGR 16-18 MM TRD16-M60-15P-3T06 15.70 3 1.50 2.00 0.05 - 1.2 T06 M22 19.05 ISO 68, DIN 13 MM EGR 16-18 MM TRD22-M60-30P-4T08 21.70 4 3.00 4.50 0.20 - 2.8 T08 M36 31.00 ISO 68, DIN 13 MM EGR 20-22 For shanks, see pages 63-69 For clamping instructions, see page 34 Do not apply lubricant to the threaded connection. (1) Smallest possible thread Optional, should be ordered separately (2) Flat 60 SOLID MULTI-, INDEXABLE SOLID CARBIDE LINE MM TRD-W Interchangeable Solid Carbide Milling Heads for 55° Partial Profile Thread Milling Размеры в мм Dimensions D Z R Y TPI max TPI min Ts Th D min Standard IC528 21.70 4 0.20 2.4 14 11 T08 G3/4 24.20 DIN ISO 228, B.S. 84 MM EGR 20-22 For shanks, see pages 63-69 For clamping instructions, see page 34 Do not apply lubricant to the threaded connection. Optional, should be ordered separately SOLIDTHnEAD T-SLOT SD TRD-M-SP Interchangeable Solid Carbide Milling Heads for 60° Partial Profile Thread Milling Размеры в мм Dimensions Обозначение Designation Dc DMIN THFTM) TPN(2) TPX(3) TPIN(4) TPIX(5) PDX Re D1 CDX OAL ZEFP DCONMS IC908 SD TRD32-M60-6P-SP15 31.70 46.00 VP60 4.00 6.00 4.00 6.00 3.7 0.30 8.40 4.70 7.70 8 15.00 SD TRD40-M60-8P-SP17 39.70 57.00 VP60 6.00 8.00 3.00 4.00 4.5 0.40 9.80 6.20 9.50 10 17.00 For shanks, see pages 284,285 For user guide, see pages 372-378 L1) Thread form type (2) Thread pitch minimum (mm) (3) Thread pitch maximum (mm) (4) Threads per inch minimum (5) Threads per inch maximum 55 SOLIDTHREAD T-SLOT SD TRD-W-SP Interchangeable Solid Carbide Milling Heads for 55° Partial Profile Thread Milling Размеры в мм Dimensions Обозначение Designation Dc DMIN THFTL1) (2) IN( PI T TPIXL3) PDX D1 CDX OAL ZEFP Re DCONMS IC908 SD TRD32-W55-4T-SP15 31.70 46.00 VP55 4.00 6.00 3.7 8.40 4.70 7.70 8 0.50 15.00 SD TRD40-W55-3T-SP17 39.70 57.00 VP55 3.00 4.00 4.5 9.80 6.20 9.50 10 0.80 17.00 For shanks, see pages 284,285 For user guide, see pages 372-378 L1) Thread form type L2) Threads per inch minimum (3) Threads per inch maximum ISCAR
