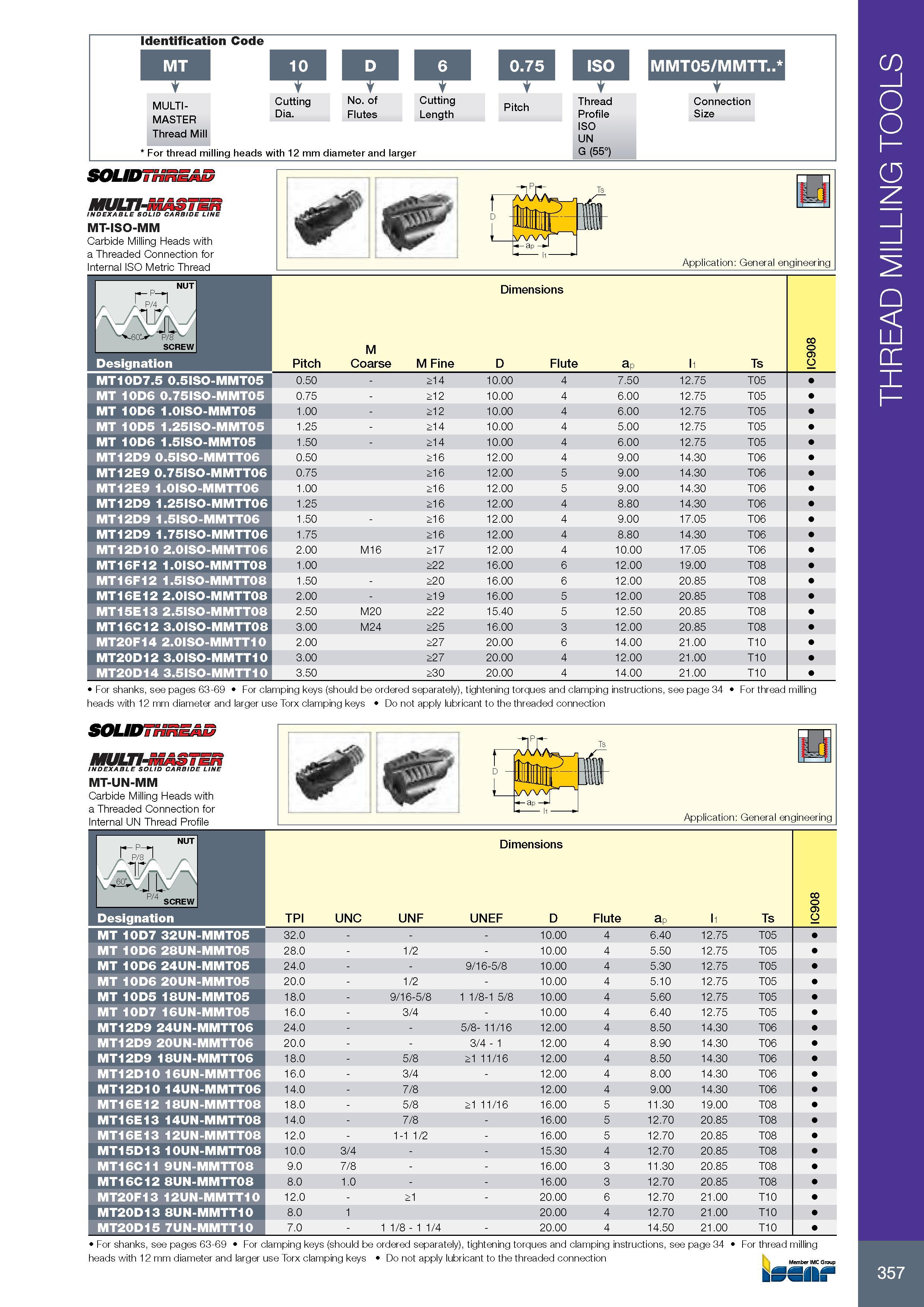

Identification Code MT 10 6 1 0.75 1 ISO 1mMT05/MMTT.. B t y t 1 V 1 MULTIMASTER Thread Mill Cutting Dia. No. of Cutting Flutes Length Pitch Thread Profile Connection Size ISO UN For thread milling heads with 12 mm diameter and larger G (55°) SOUDTt MULTI-i INDEXABLE SOLID CARBIDE LINE MT-ISO-MM Carbide Milling Heads with a Threaded Connection for Internal ISO Metric Thread Application: General engineering Размеры в мм Dimensions Обозначение Designation Pitch Coarse M Fine D Flute ap l1 Ts 05 o MT10D7.5 0.5ISO-MMT05 0.50 - >14 10.00 4 7.50 12.75 T05 MT 10D6 0.75ISO-MMT05 0.75 - >12 10.00 4 6.00 12.75 T05 MT 10D6 1.0IS0-MMT05 1.00 - >12 10.00 4 6.00 12.75 T05 MT 10D5 1.25IS0-MMT05 1.25 - >14 10.00 4 5.00 12.75 T05 MT 10D6 1.5IS0-MMT05 1.50 - >14 10.00 4 6.00 12.75 T05 MT12D9 0.5IS0-MMTT06 0.50 >16 12.00 4 9.00 14.30 T06 MT12E9 0.75IS0-MMTT06 0.75 >16 12.00 5 9.00 14.30 T06 MT12E9 1.0IS0-MMTT06 1.00 >16 12.00 5 9.00 14.30 T06 MT12D9 1.25IS0-MMTT06 1.25 >16 12.00 4 8.80 14.30 T06 MT12D9 1.5IS0-MMTT06 1.50 - >16 12.00 4 9.00 17.05 T06 MT12D9 1.75IS0-MMTT06 1.75 >16 12.00 4 8.80 14.30 T06 MT12D10 2.0IS0-MMTT06 2.00 M16 >17 12.00 4 10.00 17.05 T06 MT16F12 1.0IS0-MMTT08 1.00 >22 16.00 6 12.00 19.00 T08 MT16F12 1.5IS0-MMTT08 1.50 - >20 16.00 6 12.00 20.85 T08 MT16E12 2.0IS0-MMTT08 2.00 - >19 16.00 5 12.00 20.85 T08 MT15E13 2.5IS0-MMTT08 2.50 M20 >22 15.40 5 12.50 20.85 T08 MT16C12 3.0IS0-MMTT08 3.00 M24 >25 16.00 3 12.00 20.85 T08 MT20F14 2.0IS0-MMTT10 2.00 >27 20.00 6 14.00 21.00 T10 MT20D12 3.0IS0-MMTT10 3.00 >27 20.00 4 12.00 21.00 T10 MT20D14 3.5IS0-MMTT10 3.50 >30 20.00 4 14.00 21.00 T10 co For shanks, see pages 63-69 heads with 12 mm diameter and SOLIDTi MULTI-i INDEXABLE SOLID CARBIDE LINE MT-UN-MM Carbide Milling Heads with a Threaded Connection for Internal UN Thread Profile For clamping keys (should be ordered separately), tightening torques and clamping instructions, see page 34 For thread milling larger use Torx clamping keys Do not apply lubricant to the threaded connection Application: General engineering Размеры в мм Dimensions Обозначение Designation TPI UNC UNF UNEF D Flute ap l1 Ts 05 o MT 10D7 32UN-MMT05 32.0 - 10.00 4 6.40 12.75 T05 MT 10D6 28UN-MMT05 28.0 - 1/2 - 10.00 4 5.50 12.75 T05 MT 10D6 24UN-MMT05 24.0 9/16-5/8 10.00 4 5.30 12.75 T05 MT 10D6 20UN-MMT05 20.0 - 1/2 - 10.00 4 5.10 12.75 T05 MT 10D5 18UN-MMT05 18.0 - 9/16-5/8 1 1/8-1 5/8 10.00 4 5.60 12.75 T05 MT 10D7 16UN-MMT05 16.0 - 3/4 - 10.00 4 6.40 12.75 T05 MT12D9 24UN-MMTT06 24.0 5/8- 11/16 12.00 4 8.50 14.30 T06 MT12D9 20UN-MMTT06 20.0 3/4 - 1 12.00 4 8.90 14.30 T06 MT12D9 18UN-MMTT06 18.0 - 5/8 >1 11/16 12.00 4 8.50 14.30 T06 MT12D10 16UN-MMTT06 16.0 - 3/4 - 12.00 4 8.00 14.30 T06 MT12D10 14UN-MMTT06 14.0 - 7/8 12.00 4 9.00 14.30 T06 MT16E12 18UN-MMTT08 18.0 - 5/8 >1 11/16 16.00 5 11.30 19.00 T08 MT16E13 14UN-MMTT08 14.0 - 7/8 - 16.00 5 12.70 20.85 T08 MT16E13 12UN-MMTT08 12.0 - 1-1 1/2 - 16.00 5 12.70 20.85 T08 MT15D13 10UN-MMTT08 10.0 3/4 15.30 4 12.70 20.85 T08 MT16C11 9UN-MMTT08 9.0 7/8 16.00 3 11.30 20.85 T08 MT16C12 8UN-MMTT08 8.0 1.0 16.00 3 12.70 20.85 T08 MT20F13 12UN-MMTT10 12.0 - >1 - 20.00 6 12.70 21.00 T10 MT20D13 8UN-MMTT10 8.0 1 20.00 4 12.70 21.00 T10 MT20D15 7UN-MMTT10 7.0 - 1 1/8 - 1 1/4 - 20.00 4 14.50 21.00 T10 For shanks, see pages 63-69 heads with 12 mm diameter and For clamping keys (should be ordered separately), tightening torques and clamping instructions, see page 34 larger use Torx clamping keys Do not apply lubricant to the threaded connection For thread milling Member IMC Group kSSIIf 357 THREAD MILLING TOOLS
