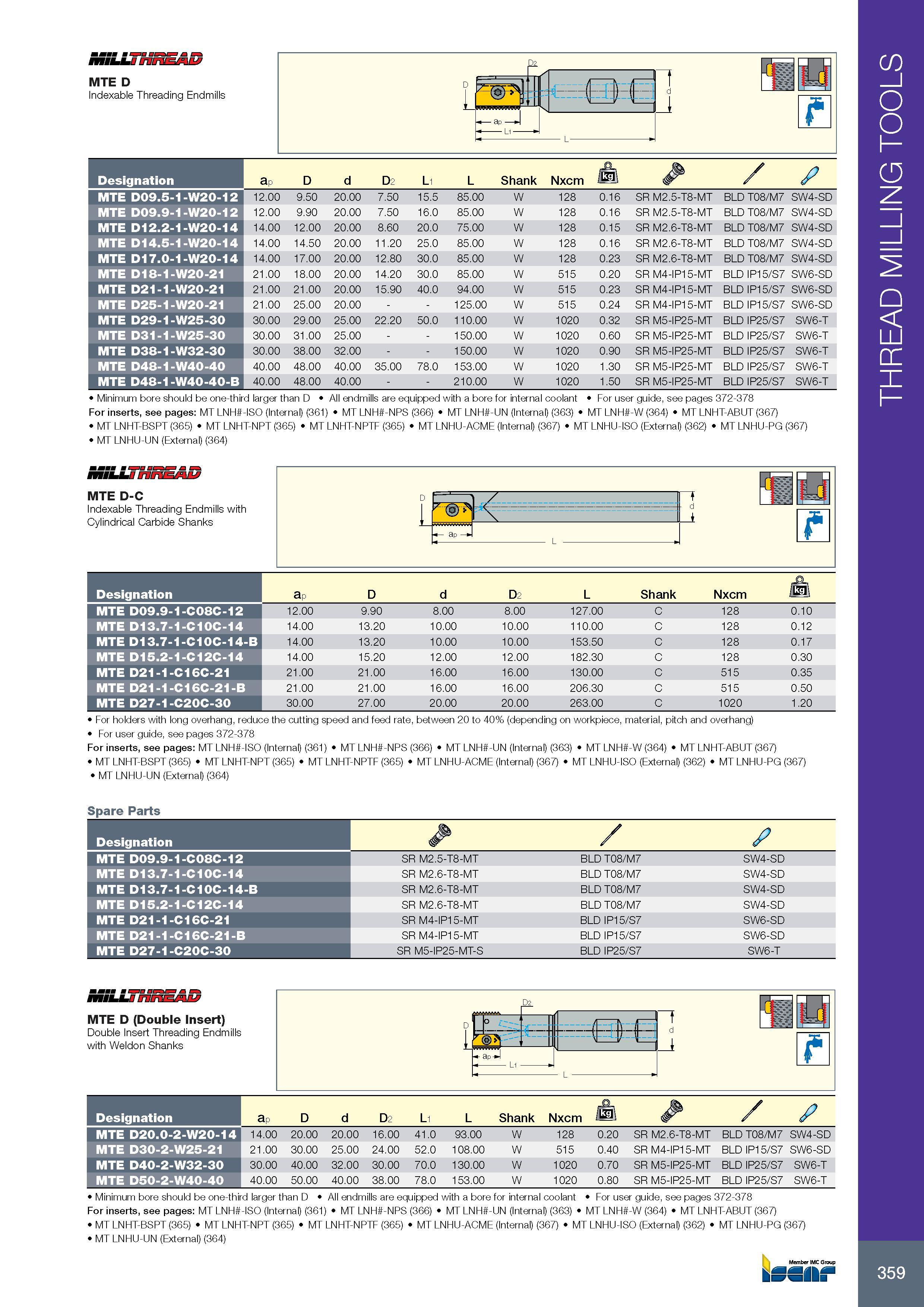

359 MiLLfflmlttSjAn MTE D Indexable Threading Endmills Обозначение Designation ap D d D2 L1 L Shank Nxcm / z7 MTE D09.5-1-W20-12 12.00 9.50 20.00 7.50 15.5 85.00 W 128 0.16 SR M2.5-T8-MT BLD T08/M7 SW4-SD MTE D09.9-1-W20-12 12.00 9.90 20.00 7.50 16.0 85.00 W 128 0.16 SR M2.5-T8-MT BLD T08/M7 SW4-SD MTE D12.2-1-W20-14 14.00 12.00 20.00 8.60 20.0 75.00 W 128 0.15 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D14.5-1-W20-14 14.00 14.50 20.00 11.20 25.0 85.00 W 128 0.16 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D17.0-1-W20-14 14.00 17.00 20.00 12.80 30.0 85.00 W 128 0.23 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D18-1-W20-21 21.00 18.00 20.00 14.20 30.0 85.00 W 515 0.20 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D21-1-W20-21 21.00 21.00 20.00 15.90 40.0 94.00 W 515 0.23 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D25-1-W20-21 21.00 25.00 20.00 125.00 W 515 0.24 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D29-1-W25-30 30.00 29.00 25.00 22.20 50.0 110.00 W 1020 0.32 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D31-1-W25-30 30.00 31.00 25.00 150.00 W 1020 0.60 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D38-1-W32-30 30.00 38.00 32.00 150.00 W 1020 0.90 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D48-1-W40-40 40.00 48.00 40.00 35.00 78.0 153.00 W 1020 1.30 SR M5-IP25-MT BLD IP25/S7 SW6-T MTE D48-1-W40-40-B 40.00 48.00 40.00 210.00 W 1020 1.50 SR M5-IP25-MT BLD IP25/S7 SW6-T Minimum bore should be one-third larger than D All endmills are equipped with a bore for internal coolant For user guide, see pages 372-378 For inserts, see pages: MT LNH -ISO (Internal) (361) MT LNH -NPS (366) MT LNH -UN (Internal) (363) MT LNH -W (364) MT LNHT-ABUT (367) MT LNHT-BSPT (365) MT LNHT-NPT (365) MT LNHT-NPTF (365) MT LNHU-ACME (Internal) (367) MT LNHU-ISO (External) (362) MT LNHU-PG (367) MT LNHU-UN (External) (364) MTE D-C Indexable Threading Endmills with Cylindrical Carbide Shanks Обозначение Designation ap D d D2 L Shank Nxcm ra MTE D09.9-1-C08C-12 12.00 9.90 8.00 8.00 127.00 C 128 0.10 MTE D13.7-1-C10C-14 14.00 13.20 10.00 10.00 110.00 C 128 0.12 MTE D13.7-1-C10C-14-B 14.00 13.20 10.00 10.00 153.50 C 128 0.17 MTE D15.2-1-C12C-14 14.00 15.20 12.00 12.00 182.30 C 128 0.30 MTE D21-1-C16C-21 21.00 21.00 16.00 16.00 130.00 C 515 0.35 MTE D21-1-C16C-21-B 21.00 21.00 16.00 16.00 206.30 C 515 0.50 MTE D27-1-C20C-30 30.00 27.00 20.00 20.00 263.00 C 1020 1.20 For holders with long overhang, reduce the cutting speed and feed rate, between 20 to 40% (depending on workpiece, material, pitch and overhang) For user guide, see pages 372-378 For inserts, see pages: MT LNH -ISO (Internal) (361) MT LNH -NPS (366) MT LNH -UN (Internal) (363) MT LNH -W (364) MT LNHT-ABUT (367) MT LNHT-BSPT (365) MT LNHT-NPT (365) MT LNHT-NPTF (365) MT LNHU-ACME (Internal) (367) MT LNHU-ISO (External) (362) MT LNHU-PG (367) MT LNHU-UN (External) (364) Spare Parts Обозначение Designation & / MTE D09.9-1-C08C-12 SR M2.5-T8-MT BLD T08/M7 SW4-SD MTE D13.7-1-C10C-14 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D13.7-1-C10C-14-B SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D15.2-1-C12C-14 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D21-1-C16C-21 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D21-1-C16C-21-B SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D27-1-C20C-30 SR M5-IP25-MT-S BLD IP25/S7 SW6-T MTE D (Double Insert) Double Insert Threading Endmills with Weldon Shanks Обозначение Designation MTE D20.0-2-W20-14 MTE D30-2-W25-21 MTE D40-2-W32-30 MTE D50-2-W40-40 ap D d D2 L1 L Shank Nxcm / 14.00 20.00 20.00 16.00 41.0 93.00 W 128 0.20 SR M2.6-T8-MT BLD T08/M7 SW4-SD 21.00 30.00 25.00 24.00 52.0 108.00 W 515 0.40 SR M4-IP15-MT BLD IP15/S7 SW6-SD 30.00 40.00 32.00 30.00 70.0 130.00 W 1020 0.70 SR M5-IP25-MT BLD IP25/S7 SW6-T 40.00 50.00 40.00 38.00 78.0 153.00 W 1020 0.80 SR M5-IP25-MT BLD IP25/S7 SW6-T Minimum bore should be one-third larger than D All endmills are equipped with a bore for internal coolant For user guide, see pages 372-378 For inserts, see pages: MT LNH -ISO (Internal) (361) MT LNH -NPS (366) MT LNH -UN (Internal) (363) MT LNH -W (364) MT LNHT-ABUT (367) MT LNHT-BSPT (365) MT LNHT-NPT (365) MT LNHT-NPTF (365) MT LNHU-ACME (Internal) (367) MT LNHU-ISO (External) (362) MT LNHU-PG (367) MT LNHU-UN (External) (364) Member IMC Group THREAD MILLING TOOLS
