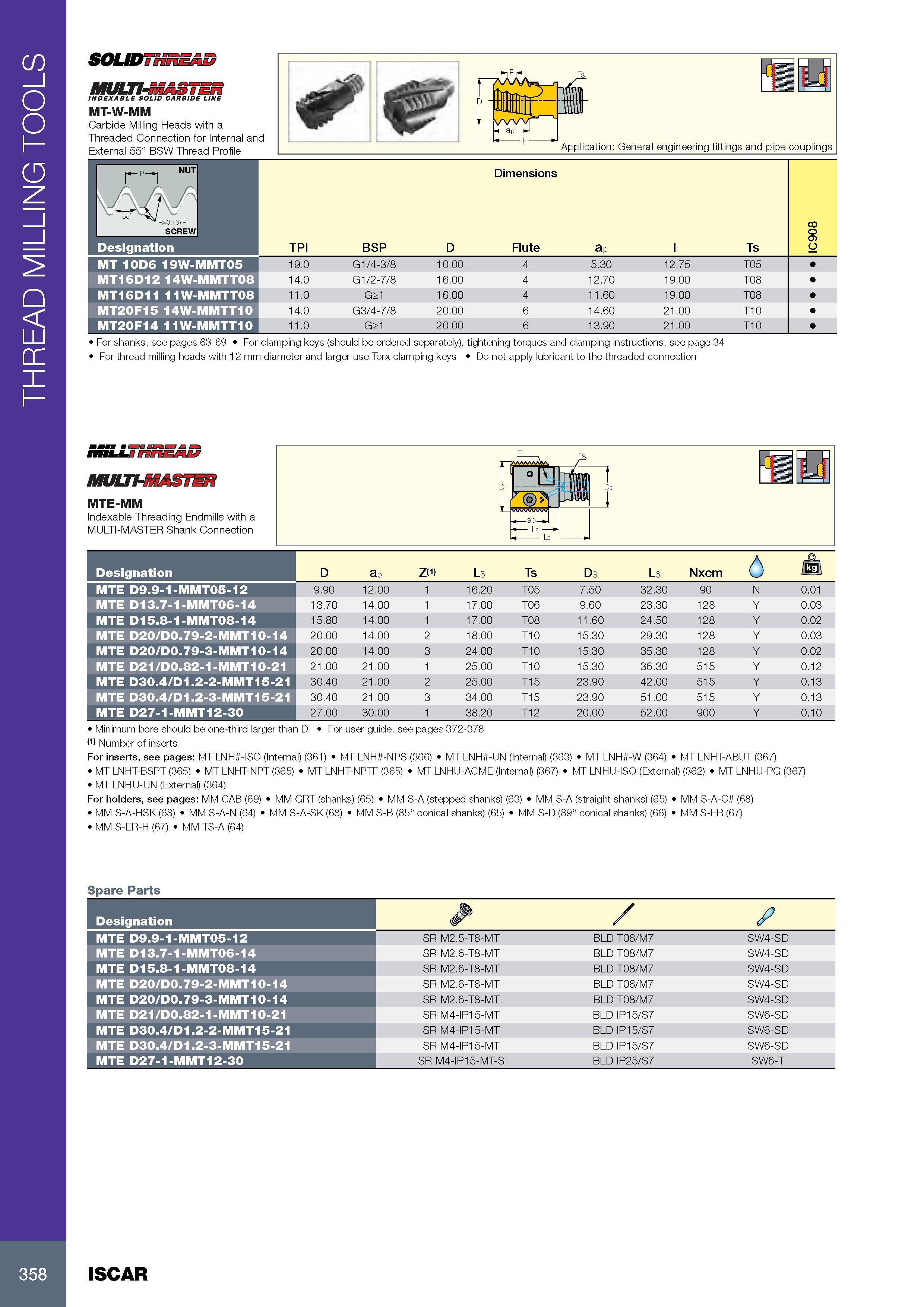

THREAD MILLING TOOLS SOUDTHi MULTI- INDEXABLE SOLID CARBIDE LINE MT-W-MM Carbide Milling Heads with a Threaded Connection for Internal and External 55° BSW Thread Profile Application: General engineering fittings and pipe couplings nut rpn Размеры в мм Dimensions 55 =0.137P SCREW co 0 9 IC Обозначение Designation TPI BSP D Flute ap l1 Ts MT 10D6 19W-MMT05 19.0 G1/4-3/8 10.00 4 5.30 12.75 T05 MT16D12 14W-MMTT08 14.0 G1/2-7/8 16.00 4 12.70 19.00 T08 MT16D11 11W-MMTT08 11.0 G>1 16.00 4 11.60 19.00 T08 MT20F15 14W-MMTT10 14.0 G3/4-7/8 20.00 6 14.60 21.00 T10 MT20F14 11W-MMTT10 11.0 G>1 20.00 6 13.90 21.00 T10 For shanks, see pages 63-69 For clamping keys (should be ordered separately), tightening torques and clamping instructions, see page 34 For thread milling heads with 12 mm diameter and larger use Torx clamping keys Do not apply lubricant to the threaded connection miUUD MULTI-MASTER MTE-MM Indexable Threading Endmills with a MULTI-MASTER Shank Connection Minimum bore should be one-third larger than D For user guide, see pages 372-378 (1) Number of inserts For inserts, see pages: MT LNH -ISO (Internal) (361) MT LNH -NPS (366) MT LNH -UN (Internal) (363) MT LNH -W (364) MT LNHT-ABUT (367) MT LNHT-BSPT (365) MT LNHT-NPT (365) MT LNHT-NPTF (365) MT LNHU-ACME (Internal) (367) MT LNHU-ISO (External) (362) MT LNHU-PG MT LNHU-UN (External) (364) For holders, see pages: MM CAB (69) MM GRT (shanks) (65) MM S-A (stepped shanks) (63) MM S-A (straight shanks) (65) MM S-A-C (68) MM S-A-HSK (68) MM S-A-N (64) MM S-A-SK (68) MM S-B (85° conical shanks) (65) MM S-D (89° conical shanks) (66) MM S-ER (67) MM S-ER-H (67) MM TS-A (64) Обозначение Designation D ap Z(1) L5 Ts D 3 L6 Nxcm
