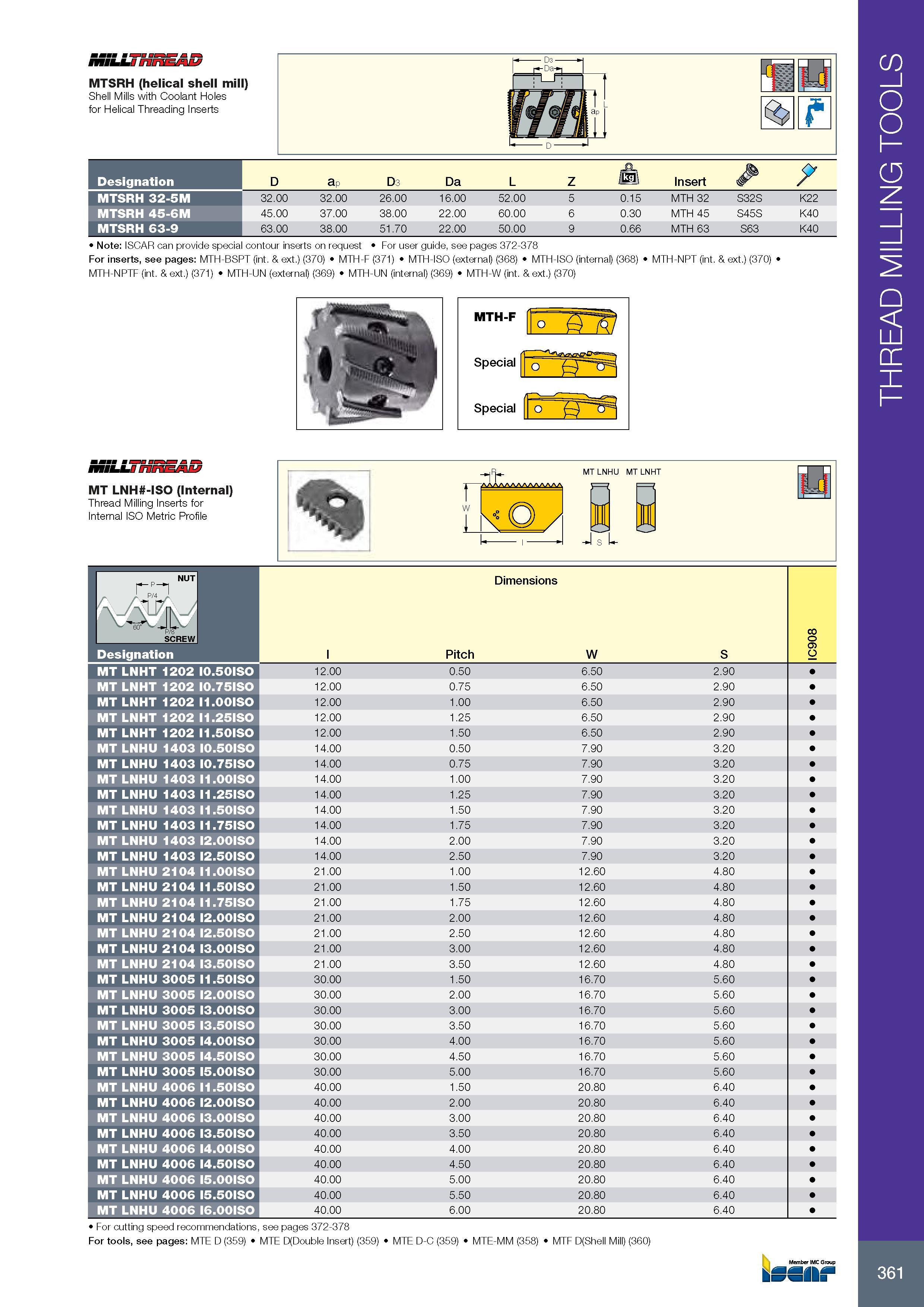

MTSRH (helical shell mill) Shell Mills with Coolant Holes for Helical Threading Inserts Обозначение Designation D ap D3 Da L Z o /kp Insert MTSRH 32-5M 32.00 32.00 26.00 16.00 52.00 5 0.15 MTH 32 S32S K22 MTSRH 45-6M 45.00 37.00 38.00 22.00 60.00 6 0.30 MTH 45 S45S K40 MTSRH 63-9 63.00 38.00 51.70 22.00 50.00 9 0.66 MTH 63 S63 K40 Note: ISCAR can provide special contour inserts on request For user guide, see pages 372-378 For inserts, see pages: MTH-BSPT (int. & ext.) (370) MTH-F (371) MTH-ISO (external) (368) MTH-ISO (internal) (368) MTH-NPT (int. & ext.) (370) MTH-NPTF (int. & ext.) (371) MTH-UN (external) (369) MTH-UN (internal) (369) MTH-W (int. & ext.) (370) MT LNH -ISO (Internal) Thread Milling Inserts for Internal ISO Metric Profile MT LNHU MT LNHT /VWWVWVWVSA S Рекомендации по выбору скорости резания при обработке на станке см. For cutting speed recommendations, see pages 372-378 For tools, see pages: MTE D (359) MTE D(Double Insert) (359) 1 MTE D-C (359) MTE-MM (358) MTF D(Shell Mill) (360) NUT rpm Размеры в мм Dimensions SCREW l Pitch W S IC908 Обозначение Designation MT LNHT 1202 I0.50IS0 12.00 0.50 6.50 2.90 MT LNHT 1202 I0.75IS0 12.00 0.75 6.50 2.90 MT LNHT 1202 I1.00IS0 12.00 1.00 6.50 2.90 MT LNHT 1202 I1.25IS0 12.00 1.25 6.50 2.90 MT LNHT 1202 I1.50IS0 12.00 1.50 6.50 2.90 MT LNHU 1403 I0.50IS0 14.00 0.50 7.90 3.20 MT LNHU 1403 I0.75IS0 14.00 0.75 7.90 3.20 MT LNHU 1403 I1.00IS0 14.00 1.00 7.90 3.20 MT LNHU 1403 I1.25IS0 14.00 1.25 7.90 3.20 MT LNHU 1403 I1.50IS0 14.00 1.50 7.90 3.20 MT LNHU 1403 I1.75IS0 14.00 1.75 7.90 3.20 MT LNHU 1403 I2.00IS0 14.00 2.00 7.90 3.20 MT LNHU 1403 I2.50IS0 14.00 2.50 7.90 3.20 MT LNHU 2104 I1.00IS0 21.00 1.00 12.60 4.80 MT LNHU 2104 I1.50IS0 21.00 1.50 12.60 4.80 MT LNHU 2104 I1.75IS0 21.00 1.75 12.60 4.80 MT LNHU 2104 I2.00IS0 21.00 2.00 12.60 4.80 MT LNHU 2104 I2.50IS0 21.00 2.50 12.60 4.80 MT LNHU 2104 I3.00IS0 21.00 3.00 12.60 4.80 MT LNHU 2104 I3.50IS0 21.00 3.50 12.60 4.80 MT LNHU 3005 I1.50IS0 30.00 1.50 16.70 5.60 MT LNHU 3005 I2.00IS0 30.00 2.00 16.70 5.60 MT LNHU 3005 I3.00IS0 30.00 3.00 16.70 5.60 MT LNHU 3005 I3.50IS0 30.00 3.50 16.70 5.60 MT LNHU 3005 I4.00IS0 30.00 4.00 16.70 5.60 MT LNHU 3005 I4.50IS0 30.00 4.50 16.70 5.60 MT LNHU 3005 I5.00IS0 30.00 5.00 16.70 5.60 MT LNHU 4006 I1.50IS0 40.00 1.50 20.80 6.40 MT LNHU 4006 I2.00IS0 40.00 2.00 20.80 6.40 MT LNHU 4006 I3.00IS0 40.00 3.00 20.80 6.40 MT LNHU 4006 I3.50IS0 40.00 3.50 20.80 6.40 MT LNHU 4006 I4.00IS0 40.00 4.00 20.80 6.40 MT LNHU 4006 I4.50IS0 40.00 4.50 20.80 6.40 MT LNHU 4006 I5.00IS0 40.00 5.00 20.80 6.40 MT LNHU 4006 I5.50IS0 40.00 5.50 20.80 6.40 MT LNHU 4006 I6.00IS0 40.00 6.00 20.80 6.40 Member IMC Group W 361 THREAD MILLING TOOLS
