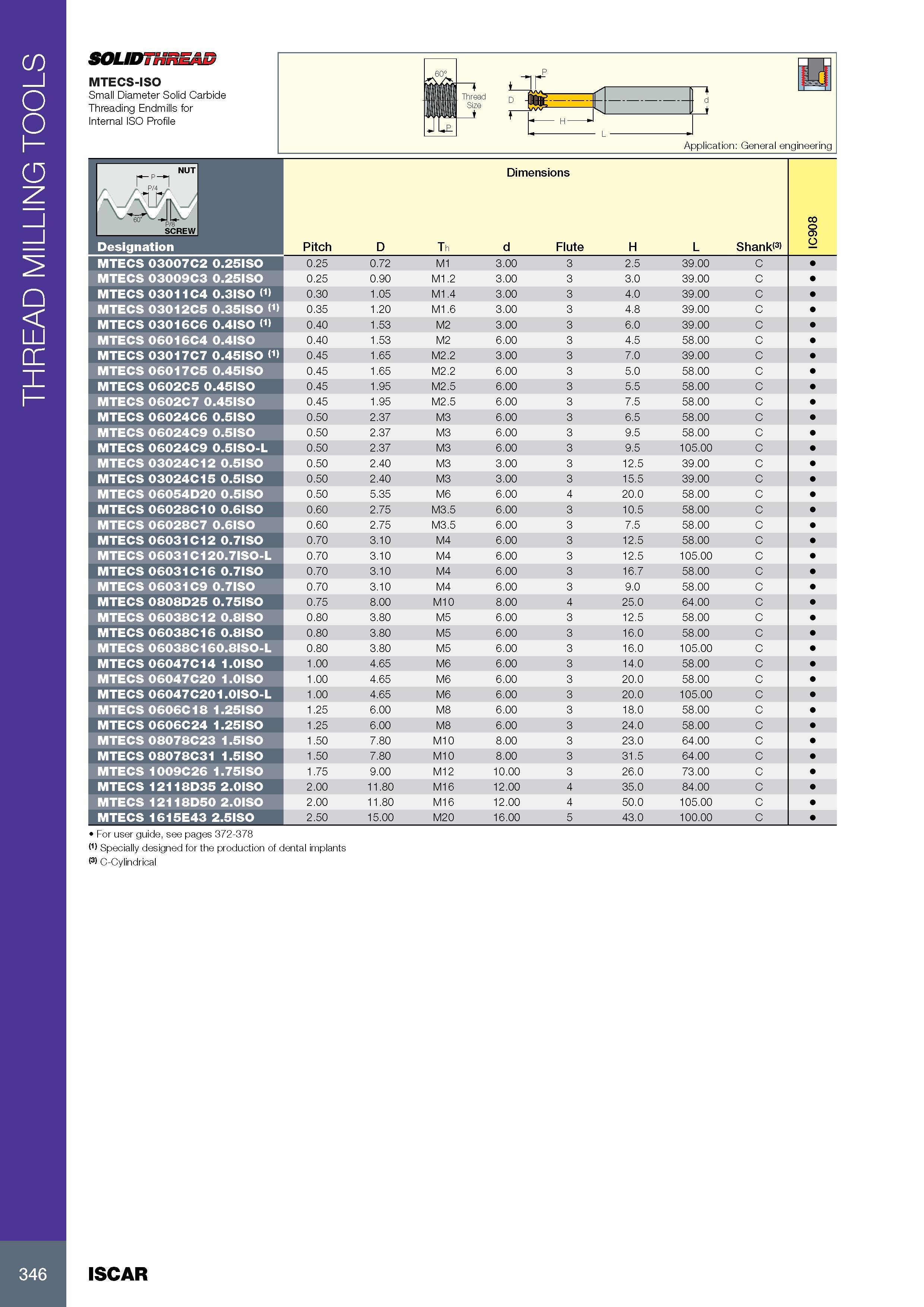

THREAD MILLING TOOLS SOUDTHREAD MTECS-ISO Small Diameter Solid Carbide Threading Endmills for Internal ISO Profile ir Thread Size Application: General engineering rPn Размеры в мм Dimensions Обозначение Designation Pitch D Th d Flute H L Shank<3> o MTECS 03007C2 0.25IS0 0.25 0.72 M1 3.00 3 2.5 39.00 C MTECS 03009C3 0.25ISO 0.25 0.90 M1.2 3.00 3 3.0 39.00 C MTECS 03011C4 0.3IS0 <1> 0.30 1.05 M1.4 3.00 3 4.0 39.00 C MTECS 03012C5 0.35IS0 <1> 0.35 1.20 M1.6 3.00 3 4.8 39.00 C MTECS 03016C6 0.4IS0 <1> 0.40 1.53 M2 3.00 3 6.0 39.00 C MTECS 06016C4 0.4ISO 0.40 1.53 M2 6.00 3 4.5 58.00 C MTECS 03017C7 0.45IS0 <1> 0.45 1.65 M2.2 3.00 3 7.0 39.00 C MTECS 06017C5 0.45IS0 0.45 1.65 M2.2 6.00 3 5.0 58.00 C MTECS 0602C5 0.45ISO 0.45 1.95 M2.5 6.00 3 5.5 58.00 C MTECS 0602C7 0.45ISO 0.45 1.95 M2.5 6.00 3 7.5 58.00 C MTECS 06024C6 0.5ISO 0.50 2.37 M3 6.00 3 6.5 58.00 C MTECS 06024C9 0.5ISO 0.50 2.37 M3 6.00 3 9.5 58.00 C MTECS 06024C9 0.5ISO-L 0.50 2.37 M3 6.00 3 9.5 105.00 C MTECS 03024C12 0.5IS0 0.50 2.40 M3 3.00 3 12.5 39.00 C MTECS 03024C15 0.5IS0 0.50 2.40 M3 3.00 3 15.5 39.00 C MTECS 06054D20 0.5ISO 0.50 5.35 M6 6.00 4 20.0 58.00 C MTECS 06028C10 0.6IS0 0.60 2.75 M3.5 6.00 3 10.5 58.00 C MTECS 06028C7 0.6ISO 0.60 2.75 M3.5 6.00 3 7.5 58.00 C MTECS 06031C12 0.7IS0 0.70 3.10 M4 6.00 3 12.5 58.00 C MTECS 06031C120.7IS0-L 0.70 3.10 M4 6.00 3 12.5 105.00 C MTECS 06031C16 0.7IS0 0.70 3.10 M4 6.00 3 16.7 58.00 C MTECS 06031C9 0.7IS0 0.70 3.10 M4 6.00 3 9.0 58.00 C MTECS 0808D25 0.75ISO 0.75 8.00 M10 8.00 4 25.0 64.00 C MTECS 06038C12 0.8IS0 0.80 3.80 M5 6.00 3 12.5 58.00 C MTECS 06038C16 0.8IS0 0.80 3.80 M5 6.00 3 16.0 58.00 C MTECS 06038C160.8ISO-L 0.80 3.80 M5 6.00 3 16.0 105.00 C MTECS 06047C14 1.0IS0 1.00 4.65 M6 6.00 3 14.0 58.00 C MTECS 06047C20 1.0IS0 1.00 4.65 M6 6.00 3 20.0 58.00 C MTECS 06047C201.0IS0-L 1.00 4.65 M6 6.00 3 20.0 105.00 C MTECS 0606C18 1.25ISO 1.25 6.00 M8 6.00 3 18.0 58.00 C MTECS 0606C24 1.25ISO 1.25 6.00 M8 6.00 3 24.0 58.00 C MTECS 08078C23 1.5ISO 1.50 7.80 M10 8.00 3 23.0 64.00 C MTECS 08078C31 1.5ISO 1.50 7.80 M10 8.00 3 31.5 64.00 C MTECS 1009C26 1.75ISO 1.75 9.00 M12 10.00 3 26.0 73.00 C MTECS 12118D35 2.0IS0 2.00 11.80 M16 12.00 4 35.0 84.00 C MTECS 12118D50 2.0IS0 2.00 11.80 M16 12.00 4 50.0 105.00 C MTECS 1615E43 2.5ISO 2.50 15.00 M20 16.00 5 43.0 100.00 C For user guide, see pages 372-378 (1) Specially designed for the production of dental implants C-Cylindrical H L NUT 346 ISCAR
