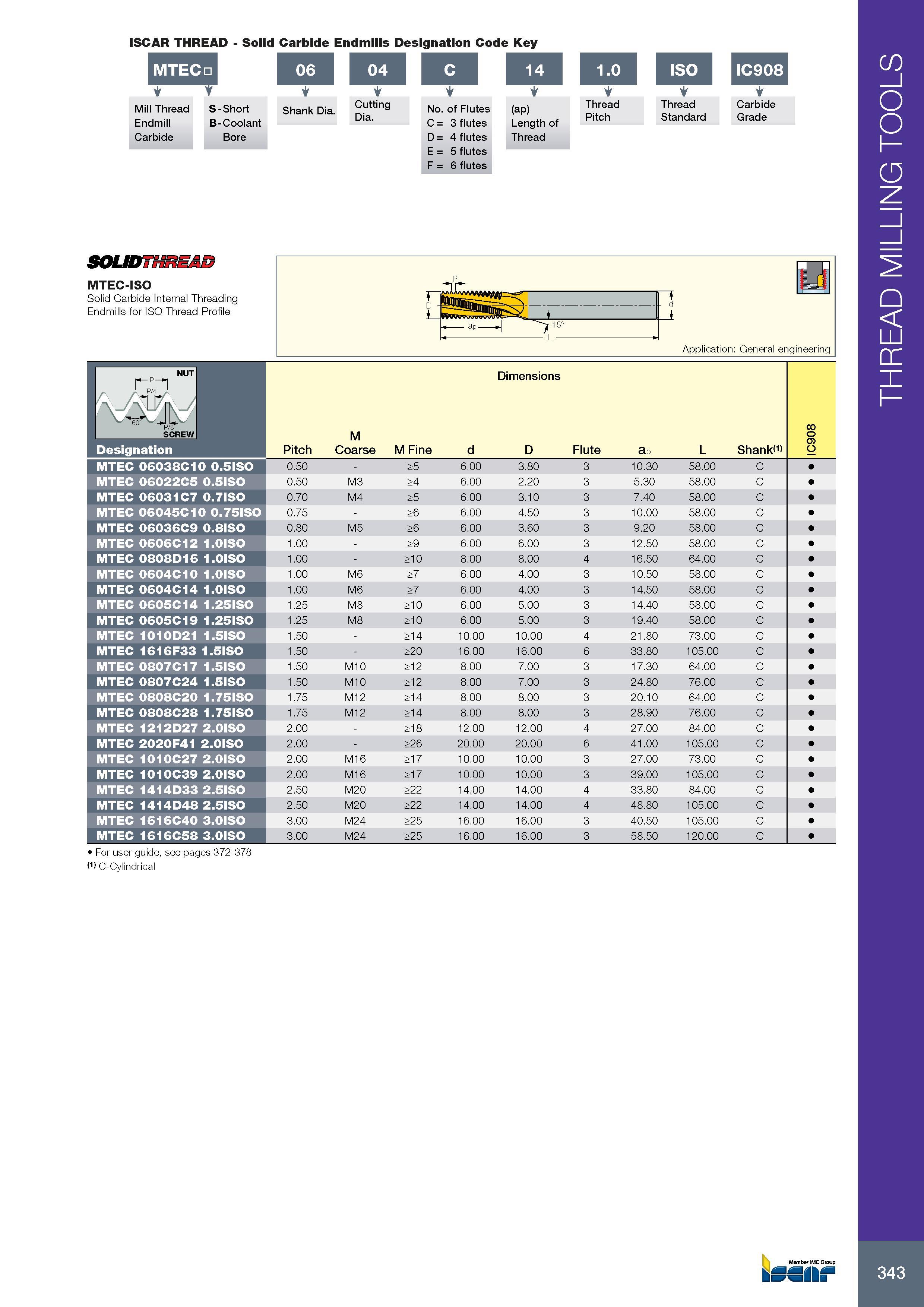

ISCAR THREAD - Solid Carbide Endmills Обозначение Designation Code Key MTEC Mill Thread Endmill Carbide T S - Short B- Coolant Bore Shank Dia. Cutting Dia. No. of Flutes C =3 flutes D = 4 flutes E =5 flutes F =6 flutes (ap) Length of Thread Thread Pitch ISO IC908 Thread Standard i Carbide Grade 06 04 C 14 MTEC 06038C10 0.5IS0 0.50 - >5 6.00 3.80 3 10.30 58.00 C MTEC 06022C5 0.5IS0 0.50 M3 >4 6.00 2.20 3 5.30 58.00 C MTEC 06031C7 0.7IS0 0.70 M4 >5 6.00 3.10 3 7.40 58.00 C MTEC 06045C10 0.75IS0 0.75 - >6 6.00 4.50 3 10.00 58.00 C MTEC 06036C9 0.8ISO 0.80 M5 >6 6.00 3.60 3 9.20 58.00 C MTEC 0606C12 1.0IS0 1.00 - >9 6.00 6.00 3 12.50 58.00 C MTEC 0808D16 1.0IS0 1.00 - >10 8.00 8.00 4 16.50 64.00 C MTEC 0604C10 1.0IS0 1.00 M6 >7 6.00 4.00 3 10.50 58.00 C MTEC 0604C14 1.0IS0 1.00 M6 >7 6.00 4.00 3 14.50 58.00 C MTEC 0605C14 1.25ISO 1.25 M8 >10 6.00 5.00 3 14.40 58.00 C MTEC 0605C19 1.25ISO 1.25 M8 >10 6.00 5.00 3 19.40 58.00 C MTEC 1010D21 1.5ISO 1.50 - >14 10.00 10.00 4 21.80 73.00 C MTEC 1616F33 1.5ISO 1.50 - >20 16.00 16.00 6 33.80 105.00 C MTEC 0807C17 1.5ISO 1.50 M10 >12 8.00 7.00 3 17.30 64.00 C MTEC 0807C24 1.5ISO 1.50 M10 >12 8.00 7.00 3 24.80 76.00 C MTEC 0808C20 1.75ISO 1.75 M12 >14 8.00 8.00 3 20.10 64.00 C MTEC 0808C28 1.75ISO 1.75 M12 >14 8.00 8.00 3 28.90 76.00 C MTEC 1212D27 2.0IS0 2.00 - >18 12.00 12.00 4 27.00 84.00 C MTEC 2020F41 2.0IS0 2.00 - >26 20.00 20.00 6 41.00 105.00 C MTEC 1010C27 2.0IS0 2.00 M16 >17 10.00 10.00 3 27.00 73.00 C MTEC 1010C39 2.0IS0 2.00 M16 >17 10.00 10.00 3 39.00 105.00 C MTEC 1414D33 2.5ISO 2.50 M20 >22 14.00 14.00 4 33.80 84.00 C MTEC 1414D48 2.5ISO 2.50 M20 >22 14.00 14.00 4 48.80 105.00 C MTEC 1616C40 3.0IS0 3.00 M24 >25 16.00 16.00 3 40.50 105.00 C MTEC 1616C58 3.0IS0 3.00 M24 >25 16.00 16.00 3 58.50 120.00 C For user guide, see pages 372-378 (1) C-Cylindrical 343 THREAD MILLING TOOLS
