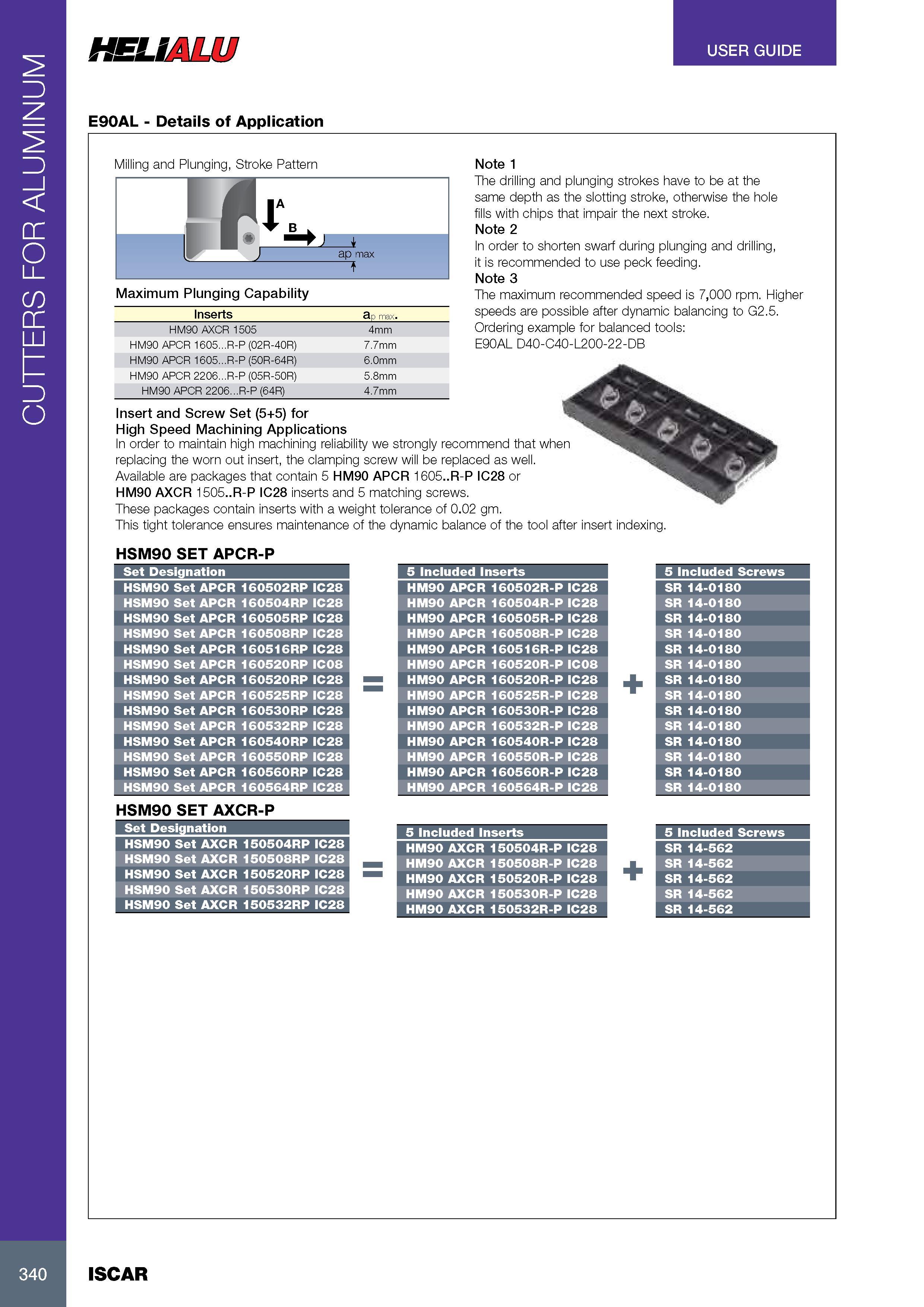

CUTTERS FOR ALUMINUM USER GUIDE lELUmM E90AL - Details of Application Milling and Plunging, Stroke Pattern Inserts ap max. HM90 AXCR 1505 4mm HM90 APCR 1605...R-P (02R-40R) 7.7mm HM90 APCR 1605...R-P (50R-64R) 6.0mm HM90 APCR 2206...R-P (05R-50R) 5.8mm HM90 APCR 2206...R-P (64R) 4.7mm Note 1 The drilling and plunging strokes have to be at the same depth as the slotting stroke, otherwise the hole fills with chips that impair the next stroke. Note 2 In order to shorten swarf during plunging and drilling, it is recommended to use peck feeding. Note 3 The maximum recommended speed is 7,000 rpm. Higher speeds are possible after dynamic balancing to G2.5. Ordering example for balanced tools: E90AL D40-C40-L200-22-DB Insert and Screw Set (5+5) for High Speed Machining Applications In order to maintain high machining reliability we strongly recommend that when replacing the worn out insert, the clamping screw will be replaced as well. Available are packages that contain 5 HM90 APCR 1605..R-P IC28 or HM90 AXCR 1505..R-P IC28 inserts and 5 matching screws. These packages contain inserts with a weight tolerance of 0.02 gm. This tight tolerance ensures maintenance of the dynamic balance of the tool after insert indexing HSM90 SET APCR-P Set Обозначение Designation HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR HSM90 Set APCR 160502RP 160504RP 160505RP 160508RP 160516RP 160520RP 160520RP 160525RP 160530RP 160532RP 160540RP 160550RP 160560RP 160564RP HSM90 SET AXCR-P IC28 IC28 IC28 IC28 IC28 IC08 IC28 IC28 IC28 IC28 IC28 IC28 IC28 IC28 5 Included Inserts HM90 APCR 160502R-P IC28 HM90 APCR 160504R-P IC28 HM90 APCR 160505R-P IC28 HM90 APCR 160508R-P IC28 HM90 APCR 160516R-P IC28 HM90 APCR 160520R-P IC08 HM90 APCR 160520R-P IC28 HM90 APCR 160525R-P IC28 HM90 APCR 160530R-P IC28 HM90 APCR 160532R-P IC28 HM90 APCR 160540R-P IC28 HM90 APCR 160550R-P IC28 HM90 APCR 160560R-P IC28 HM90 APCR 160564R-P IC28 5 Included Screws SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 SR 14-0180 Set Обозначение Designation HSM90 Set AXCR 150504RP IC28 HSM90 Set AXCR 150508RP IC28 HSM90 Set AXCR 150520RP IC28 HSM90 Set AXCR 150530RP IC28 HSM90 Set AXCR 150532RP IC28 5 Included Inserts HM90 AXCR 150504R-P IC28 HM90 AXCR 150508R-P IC28 HM90 AXCR 150520R-P IC28 HM90 AXCR 150530R-P IC28 HM90 AXCR 150532R-P IC28 5 Included Screws SR 14-562 SR 14-562 SR 14-562 SR 14-562 SR 14-562 340 ISCAR
