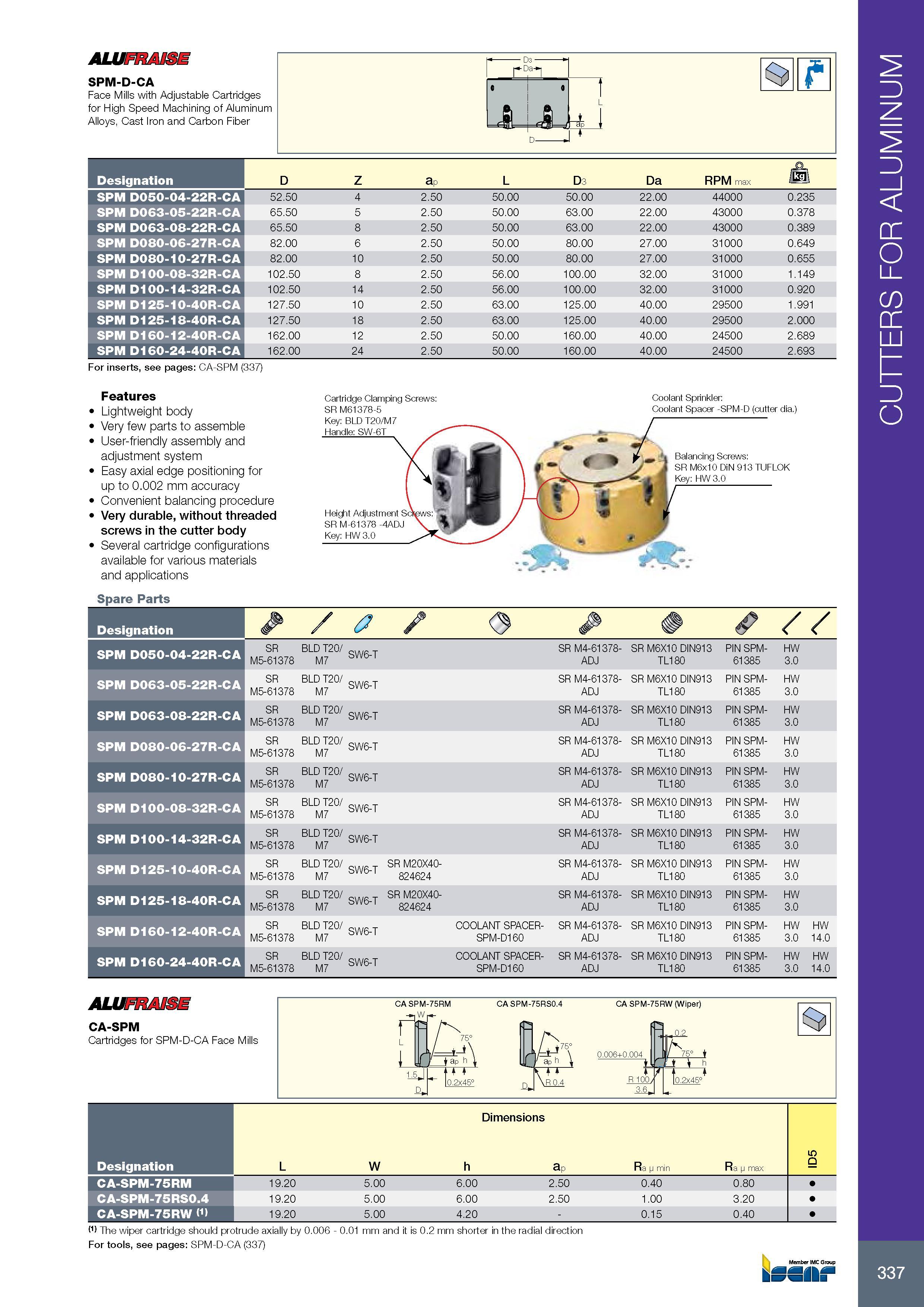

ALUFRAISE SPM-D-CA Face Mills with Adjustable Cartridges for High Speed Machining of Aluminum Alloys, Cast Iron and Carbon Fiber D3 Da - Обозначение Designation D Z ap L D3 Da RPM max SPM D050-04-22R-CA 52.50 4 2.50 50.00 50.00 22.00 44000 0.235 SPM D063-05-22R-CA 65.50 5 2.50 50.00 63.00 22.00 43000 0.378 SPM D063-08-22R-CA 65.50 8 2.50 50.00 63.00 22.00 43000 0.389 SPM D080-06-27R-CA 82.00 6 2.50 50.00 80.00 27.00 31000 0.649 SPM D080-10-27R-CA 82.00 10 2.50 50.00 80.00 27.00 31000 0.655 SPM D100-08-32R-CA 102.50 8 2.50 56.00 100.00 32.00 31000 1.149 SPM D100-14-32R-CA 102.50 14 2.50 56.00 100.00 32.00 31000 0.920 SPM D125-10-40R-CA 127.50 10 2.50 63.00 125.00 40.00 29500 1.991 SPM D125-18-40R-CA 127.50 18 2.50 63.00 125.00 40.00 29500 2.000 SPM D160-12-40R-CA 162.00 12 2.50 50.00 160.00 40.00 24500 2.689 SPM D160-24-40R-CA 162.00 24 2.50 50.00 160.00 40.00 24500 2.693 For inserts, see pages: CA-SPM (337) Features Lightweight body Very few parts to assemble User-friendly assembly and adjustment system Easy axial edge positioning for up to 0.002 mm accuracy Convenient balancing procedure Very durable, without threaded screws in the cutter body Several cartridge configurations available for various materials and applications Spare Parts Cartridge Clamping Screws: SR M61378-5 Key: BLD T20/M7 Handle: SW-6T Coolant Sprinkler: Coolant Spacer -SPM-D (cutter dia.) 1 Balancing Screws: SR M6x10 DiN 913 TUFLOK Key: HW 3.0 Обозначение Designation // SPM D050-04-22R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D063-05-22R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D063-08-22R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D080-06-27R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D080-10-27R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D100-08-32R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D100-14-32R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D125-10-40R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M20X40-824624 SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D125-18-40R-CA SR M5-61378 BLD T20/ M7 SW6-T SR M20X40-824624 SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 SPM D160-12-40R-CA SR M5-61378 BLD T20/ M7 SW6-T COOLANT SPACER-SPM-D160 SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 HW 14.0 SPM D160-24-40R-CA SR M5-61378 BLD T20/ M7 SW6-T COOLANT SPACER-SPM-D160 SR M4-61378-ADJ SR M6X10 DIN913 TL180 PIN SPM-61385 HW 3.0 HW 14.0 ALUFRAISE CA-SPM Cartridges for SPM-D-CA Face Mills The wiper cartridge should protrude axially by 0.006 - 0.01 mm and it is 0.2 mm shorter in the radial direction For tools, see pages: SPM-D-CA (337) Размеры в мм Dimensions ID5 Обозначение Designation L W h ap Ra j min Ra j max CA-SPM-75RM 19.20 5.00 6.00 2.50 0.40 0.80 CA-SPM-75RS0.4 19.20 5.00 6.00 2.50 1.00 3.20 CA-SPM-75RW <1> 19.20 5.00 4.20 - 0.15 0.40 Member IMC Group D 337 CUTTERS FOR ALUMINUM
