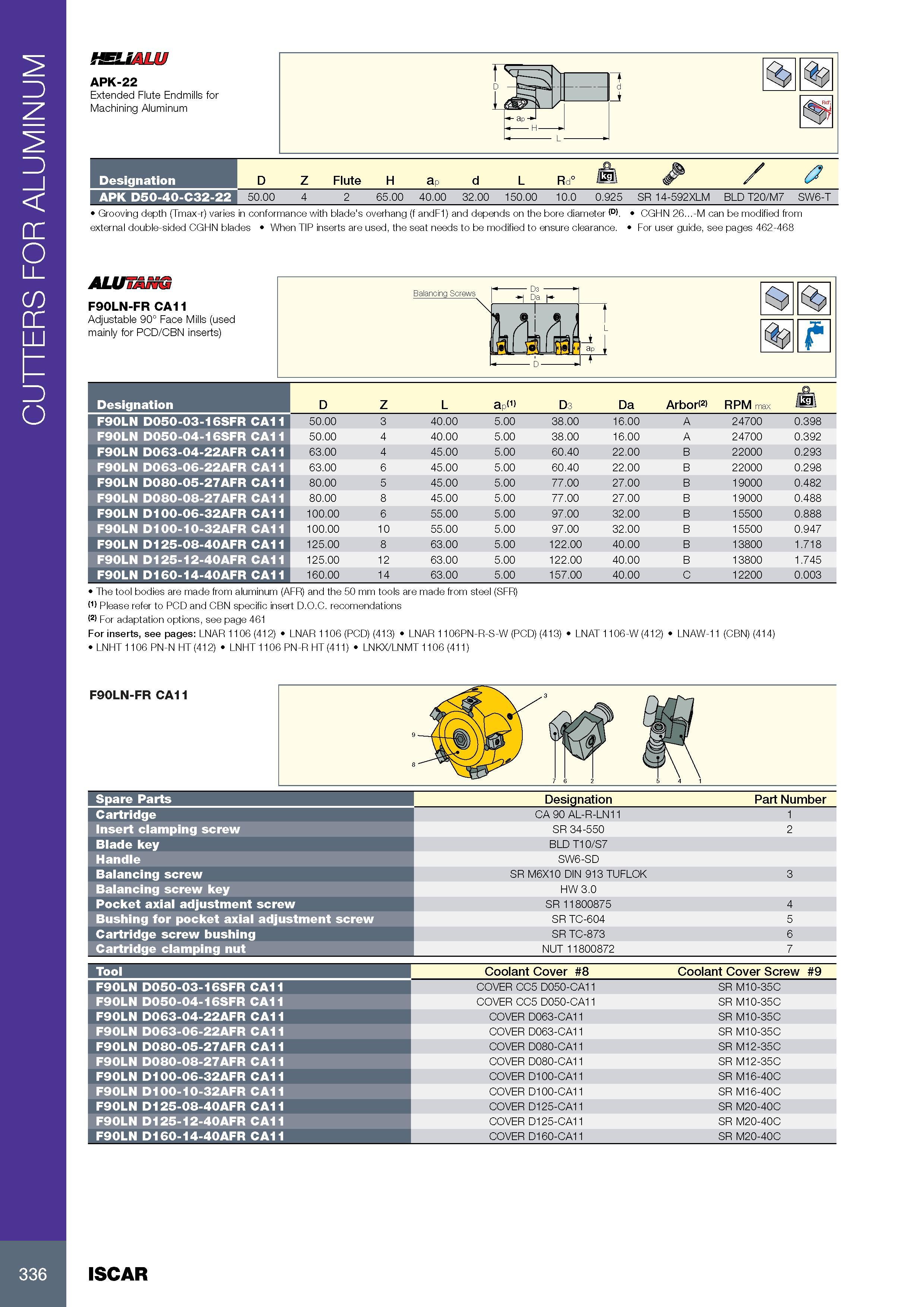

CUTTERS FOR ALUMINUM 2SSJALU APK-22 Extended Flute Endmills for Machining Aluminum Обозначение Designation D Z Flute H ap d L Rd° /k j\ / 0 APK D50-40-C32-22 50.00 4 2 65.00 40.00 32.00 150.00 10.0 0.925 SR 14-592XLM BLD T20/M7 SW6-T Grooving depth (Tmax-r) varies in conformance with blade's overhang (f andFI) and depends on the bore diameter (D). CGHN 26...-M can be modified from external double-sided CGHN blades When TIP inserts are used, the seat needs to be modified to ensure clearance. For user guide, see pages 462-468 ALUTANG F90LN-FR CA11 Adjustable 90° Face Mills (used mainly for PCD/CBN inserts) Balancing Screws -< D3 1 Da 1 ,i D The tool bodies are made from aluminum (AFR) and the 50 mm tools are made from steel (SFR) (1) Please refer to PCD and CBN specific insert D.O.C. recomendations (2) For adaptation options, see page 461 For inserts, see pages: LNAR 1106 (412) LNAR 1106 (PCD) (413) LNAR 1106PN-R-S-W (PCD) (413) LNHT 1106 PN-N HT (412) LNHT 1106 PN-R HT (411) LNKX/LNMT 1106 (411) Обозначение Designation D Z L ap(1) D3 Da Arbor<2> RPM max Ml F90LN D050-03-16SFR CA11 50.00 3 40.00 5.00 38.00 16.00 A 24700 0.398 F90LN D050-04-16SFR CA11 50.00 4 40.00 5.00 38.00 16.00 A 24700 0.392 F90LN D063-04-22AFR CA11 63.00 4 45.00 5.00 60.40 22.00 B 22000 0.293 F90LN D063-06-22AFR CA11 63.00 6 45.00 5.00 60.40 22.00 B 22000 0.298 F90LN D080-05-27AFR CA11 80.00 5 45.00 5.00 77.00 27.00 B 19000 0.482 F90LN D080-08-27AFR CA11 80.00 8 45.00 5.00 77.00 27.00 B 19000 0.488 F90LN D100-06-32AFR CA11 100.00 6 55.00 5.00 97.00 32.00 B 15500 0.888 F90LN D100-10-32AFR CA11 100.00 10 55.00 5.00 97.00 32.00 B 15500 0.947 F90LN D125-08-40AFR CA11 125.00 8 63.00 5.00 122.00 40.00 B 13800 1.718 F90LN D125-12-40AFR CA11 125.00 12 63.00 5.00 122.00 40.00 B 13800 1.745 F90LN D160-14-40AFR CA11 160.00 14 63.00 5.00 157.00 40.00 C 12200 0.003 LNAT 1106-W (412) LNAW-11 (CBN) (414) Spare Parts Обозначение Designation Part Number Cartridge CA 90 AL-R-LN11 1 Insert clamping screw SR 34-550 2 Blade key BLD T10/S7 Handle SW6-SD Balancing screw SR M6X10 DIN 913 TUFLOK 3 Balancing screw key HW 3.0 Pocket axial adjustment screw SR 11800875 4 Bushing for pocket axial adjustment screw SR TC-604 5 Cartridge screw bushing SR TC-873 6 Cartridge clamping nut NUT 11800872 7 Tool Coolant Cover 8 Coolant Cover Screw 9 F90LN D050-03-16SFR CA11 COVER CC5 D050-CA11 SR M10-35C F90LN D050-04-16SFR CA11 COVER CC5 D050-CA11 SR M10-35C F90LN D063-04-22AFR CA11 COVER D063-CA11 SR M10-35C F90LN D063-06-22AFR CA11 COVER D063-CA11 SR M10-35C F90LN D080-05-27AFR CA11 COVER D080-CA11 SR M12-35C F90LN D080-08-27AFR CA11 COVER D080-CA11 SR M12-35C F90LN D100-06-32AFR CA11 COVER D100-CA11 SR M16-40C F90LN D100-10-32AFR CA11 COVER D100-CA11 SR M16-40C F90LN D125-08-40AFR CA11 COVER D125-CA11 SR M20-40C F90LN D125-12-40AFR CA11 COVER D125-CA11 SR M20-40C F90LN D160-14-40AFR CA11 COVER D160-CA11 SR M20-40C 336 ISCAR
