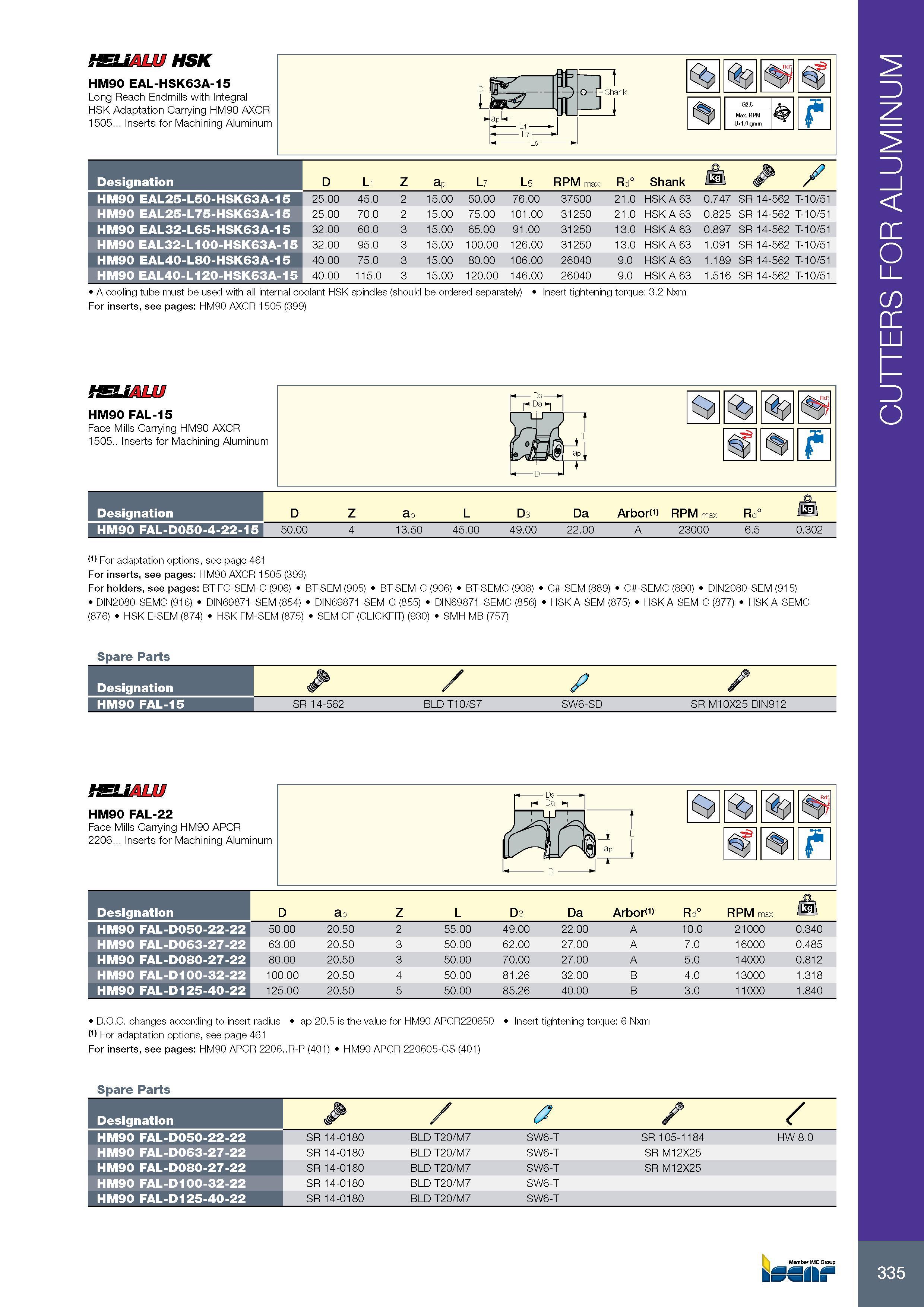

HEUALU HSK HM90 EAL-HSK63A-15 Long Reach Endmills with Integral HSK Adaptation Carrying HM90 AXCR 1505... Inserts for Machining Aluminum Обозначение Designation D L1 Z ap L7 L5 RPM max Rd° Shank & / HM90 EAL25-L50-HSK63A-15 25.00 45.0 2 15.00 50.00 76.00 37500 21.0 HSK A 63 0.747 SR 14-562 T-10/51 HM90 EAL25-L75-HSK63A-15 25.00 70.0 2 15.00 75.00 101.00 31250 21.0 HSK A 63 0.825 SR 14-562 T-10/51 HM90 EAL32-L65-HSK63A-15 32.00 60.0 3 15.00 65.00 91.00 31250 13.0 HSK A 63 0.897 SR 14-562 T-10/51 HM90 EAL32-L100-HSK63A-15 32.00 95.0 3 15.00 100.00 126.00 31250 13.0 HSK A 63 1.091 SR 14-562 T-10/51 HM90 EAL40-L80-HSK63A-15 40.00 75.0 3 15.00 80.00 106.00 26040 9.0 HSK A 63 1.189 SR 14-562 T-10/51 HM90 EAL40-L120-HSK63A-15 40.00 115.0 3 15.00 120.00 146.00 26040 9.0 HSK A 63 1.516 SR 14-562 T-10/51 A cooling tube must be used with all internal coolant HSK spindles (should be ordered separately) Insert tightening torque: 3.2 Nxm For inserts, see pages: HM90 AXCR 1505 (399) fSUALU HM90 FAL-15 Face Mills Carrying HM90 AXCR 1505.. Inserts for Machining Aluminum Обозначение Designation D Z ap L D3 Da ArborM) RPM max Rd° HM90 FAL-D050-4-22-15 50.00 4 13.50 45.00 49.00 22.00 A 23000 6.5 0.302 (1) For adaptation options, see page 461 For inserts, see pages: HM90 AXCR 1505 (399) For holders, see pages: BT-FC-SEM-C (906) BT-SEM (905) BT-SEM-C (906) BT-SEMC (908) C -SEM (889) C -SEMC (890) DIN2080-SEM (915) DIN2080-SEMC (916) DIN69871-SEM (854) DIN69871-SEM-C (855) DIN69871-SEMC (856) HSK A-SEM (875) HSK A-SEM-C (877) HSK A-SEMC (876) HSK E-SEM (874) HSK FM-SEM (875) SEM CF (CLICKFIT) (930) SMH MB (757) Spare Parts Обозначение Designation HM90 FAL-15 SR 14-562 BLD T10/S7 SW6-SD SR M10X25 DIN912 Обозначение Designation D ap Z L D3 Da Arbors Rd° RPM max HM90 FAL-D050-22-22 50.00 20.50 2 55.00 49.00 22.00 A 10.0 21000 0.340 HM90 FAL-D063-27-22 63.00 20.50 3 50.00 62.00 27.00 A 7.0 16000 0.485 HM90 FAL-D080-27-22 80.00 20.50 3 50.00 70.00 27.00 A 5.0 14000 0.812 HM90 FAL-D100-32-22 100.00 20.50 4 50.00 81.26 32.00 B 4.0 13000 1.318 HM90 FAL-D125-40-22 125.00 20.50 5 50.00 85.26 40.00 B 3.0 11000 1.840 D.O.C. changes according to insert radius ap 20.5 is the value for HM90 APCR220650 Insert tightening torque: 6 Nxm (1) For adaptation options, see page 461 For inserts, see pages: HM90 APCR 2206..R-P (401) HM90 APCR 220605-CS (401) Spare Parts Обозначение Designation / HM90 FAL-D050-22-22 SR 14-0180 BLD T20/M7 SW6-T SR 105-1184 HW 8.0 HM90 FAL-D063-27-22 SR 14-0180 BLD T20/M7 SW6-T SR M12X25 HM90 FAL-D080-27-22 SR 14-0180 BLD T20/M7 SW6-T SR M12X25 HM90 FAL-D100-32-22 SR 14-0180 BLD T20/M7 SW6-T HM90 FAL-D125-40-22 SR 14-0180 BLD T20/M7 SW6-T 335 CUTTERS FOR ALUMINUM
