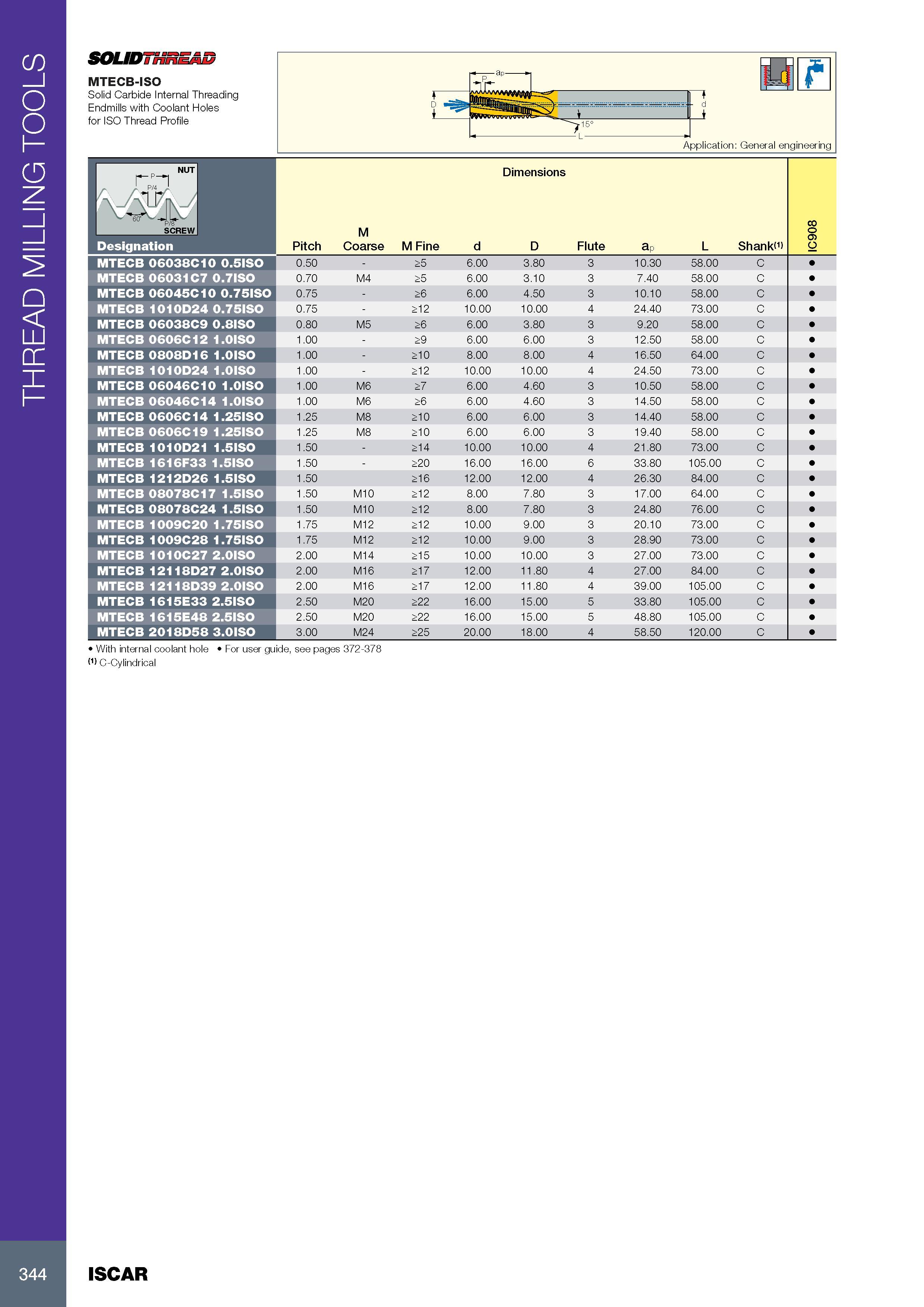

THREAD MILLING TOOLS SOUDTHREAB MTECB-ISO Solid Carbide Internal Threading Endmills with Coolant Holes for ISO Thread Profile d i Application: General engineering rPn 1 D M J MX A Размеры в мм Dimensions Обозначение Designation Pitch IVI Coarse M Fine d D Flute aP L Shank 9 o MTECB 06038C10 0.5IS0 0.50 - >5 6.00 3.80 3 10.30 58.00 C MTECB 06031C7 0.7IS0 0.70 M4 >5 6.00 3.10 3 7.40 58.00 C MTECB 06045C10 0.75IS0 0.75 - >6 6.00 4.50 3 10.10 58.00 C MTECB 1010D24 0.75IS0 0.75 - >12 10.00 10.00 4 24.40 73.00 C MTECB 06038C9 0.8IS0 0.80 M5 >6 6.00 3.80 3 9.20 58.00 C MTECB 0606C12 1.0IS0 1.00 - >9 6.00 6.00 3 12.50 58.00 C MTECB 0808D16 1.0IS0 1.00 - >10 8.00 8.00 4 16.50 64.00 C MTECB 1010D24 1.0IS0 1.00 - >12 10.00 10.00 4 24.50 73.00 C MTECB 06046C10 1.0IS0 1.00 M6 >7 6.00 4.60 3 10.50 58.00 C MTECB 06046C14 1.0IS0 1.00 M6 >6 6.00 4.60 3 14.50 58.00 C MTECB 0606C14 1.25IS0 1.25 M8 >10 6.00 6.00 3 14.40 58.00 C MTECB 0606C19 1.25IS0 1.25 M8 >10 6.00 6.00 3 19.40 58.00 C MTECB 1010D21 1.5IS0 1.50 - >14 10.00 10.00 4 21.80 73.00 C MTECB 1616F33 1.5IS0 1.50 - >20 16.00 16.00 6 33.80 105.00 C MTECB 1212D26 1.5IS0 1.50 >16 12.00 12.00 4 26.30 84.00 C MTECB 08078C17 1.5IS0 1.50 M10 >12 8.00 7.80 3 17.00 64.00 C MTECB 08078C24 1.5IS0 1.50 M10 >12 8.00 7.80 3 24.80 76.00 C MTECB 1009C20 1.75IS0 1.75 M12 >12 10.00 9.00 3 20.10 73.00 C MTECB 1009C28 1.75IS0 1.75 M12 >12 10.00 9.00 3 28.90 73.00 C MTECB 1010C27 2.0IS0 2.00 M14 >15 10.00 10.00 3 27.00 73.00 C MTECB 12118D27 2.0IS0 2.00 M16 >17 12.00 11.80 4 27.00 84.00 C MTECB 12118D39 2.0IS0 2.00 M16 >17 12.00 11.80 4 39.00 105.00 C MTECB 1615E33 2.5IS0 2.50 M20 >22 16.00 15.00 5 33.80 105.00 C MTECB 1615E48 2.5IS0 2.50 M20 >22 16.00 15.00 5 48.80 105.00 C MTECB 2018D58 3.0IS0 3.00 M24 >25 20.00 18.00 4 58.50 120.00 C With internal coolant hole (1) C-Cylindrical 1 For user guide, see pages 372-378 NUT 344 ISCAR
