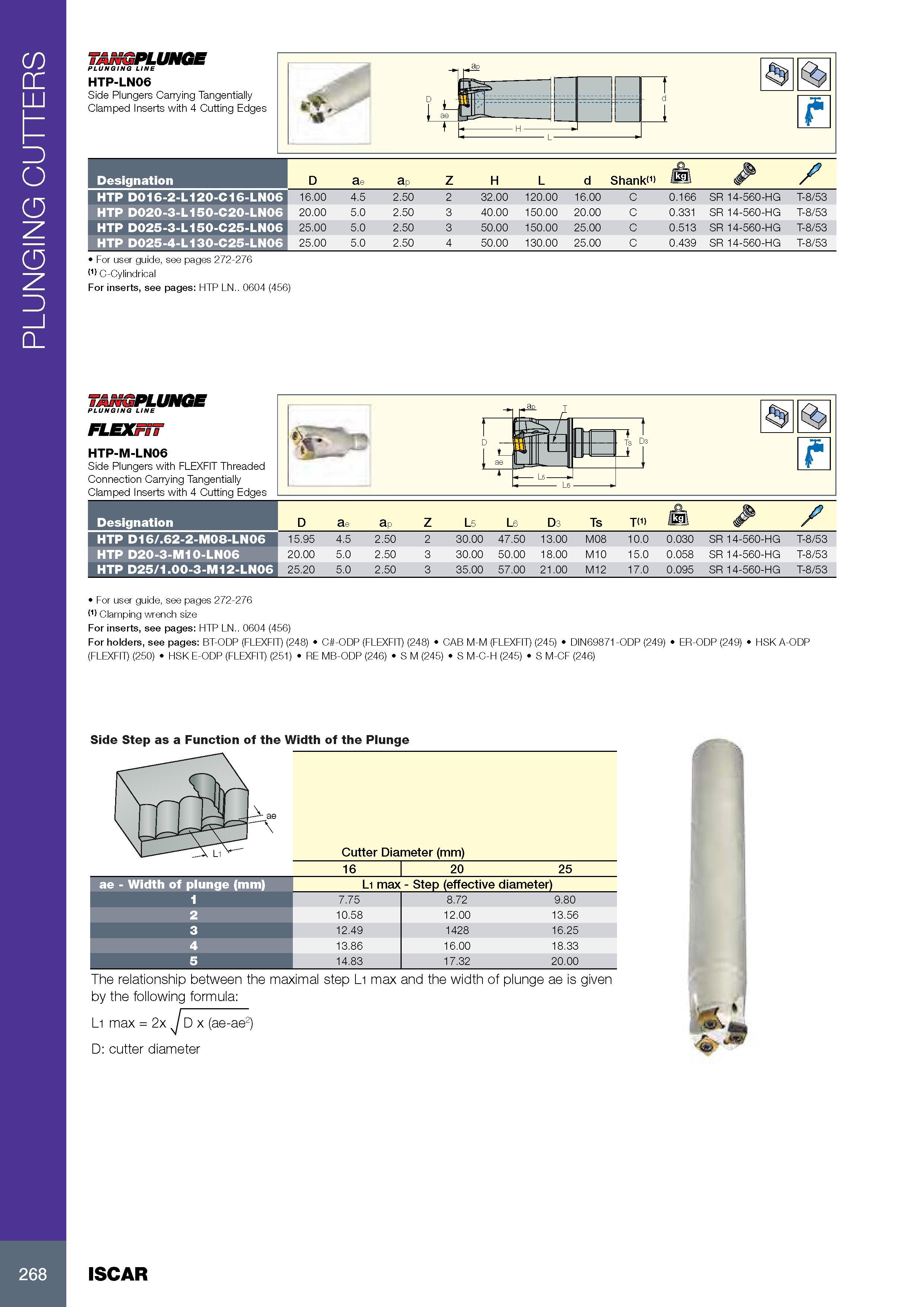

PLUNGING CUTTERS TANGPLUNGE PLUNGING LINE HTP-LN06 Side Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges Обозначение Designation D ae ap Z H L d Shank<1> / kgi\ HTP D016-2-L120-C16-LN06 16.00 4.5 2.50 2 32.00 120.00 16.00 C 0.166 SR 14-560-HG T-8/53 HTP D020-3-L150-C20-LN06 20.00 5.0 2.50 3 40.00 150.00 20.00 C 0.331 SR 14-560-HG T-8/53 HTP D025-3-L150-C25-LN06 25.00 5.0 2.50 3 50.00 150.00 25.00 C 0.513 SR 14-560-HG T-8/53 HTP D025-4-L130-C25-LN06 25.00 5.0 2.50 4 50.00 130.00 25.00 C 0.439 SR 14-560-HG T-8/53 For user guide, see pages 272-276 (1) C-Cylindrical For inserts, see pages: HTP LN.. 0604 (456) TANGPLUNGE PLUNGING LINE FLEXFiT HTP-M-LN06 Side Plungers with FLEXFIT Threaded Connection Carrying Tangentially Clamped Inserts with 4 Cutting Edges Обозначение Designation D ae ap Z L5 L6 D3 Ts T <1> /kp / HTP D16/.62-2-M08-LN06 15.95 4.5 2.50 2 30.00 47.50 13.00 M08 10.0 0.030 SR 14-560-HG T-8/53 HTP D20-3-M10-LN06 20.00 5.0 2.50 3 30.00 50.00 18.00 M10 15.0 0.058 SR 14-560-HG T-8/53 HTP D25/1.00-3-M12-LN06 25.20 5.0 2.50 3 35.00 57.00 21.00 M12 17.0 0.095 SR 14-560-HG T-8/53 For user guide, see pages 272-276 (1) Clamping wrench size For inserts, see pages: HTP LN.. 0604 (456) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) Side Step as a Function of the Width of the Plunge ae \ Cutter Diameter (mm) 16 20 25 ae - Width of plunge (mm) L1 max - Step (effective diameter) 1 7.75 8.72 9.80 2 10.58 12.00 13.56 3 12.49 1428 16.25 4 13.86 16.00 18.33 5 14.83 17.32 20.00 The relationship between the maximal step L1 max and the width of plunge ae is given by the following formula: L1 max = 2x J D x (ae-ae2) D: cutter diameter 268 ISCAR
