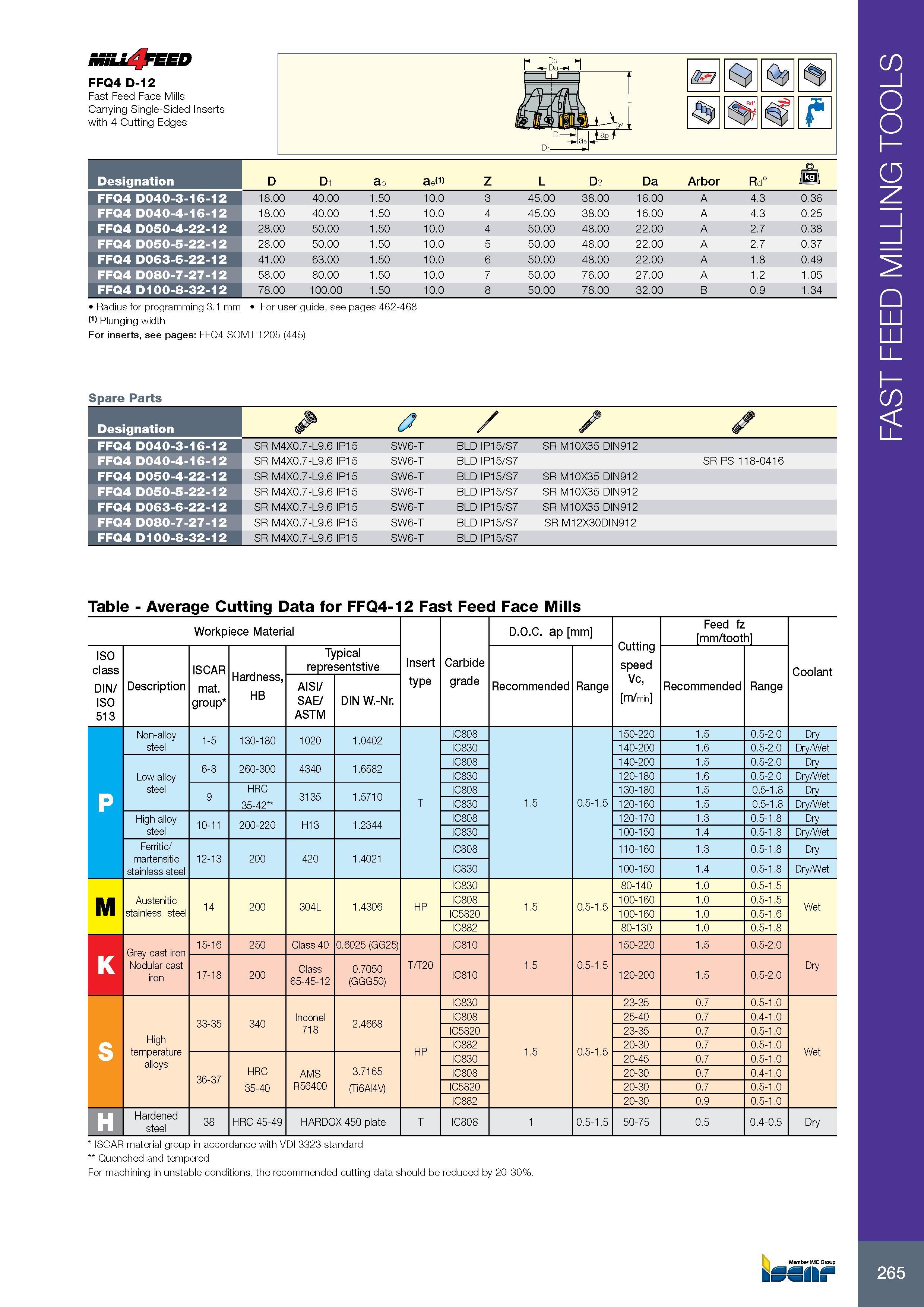

265 miLi&EED FFQ4 D-12 Fast Feed Face Mills Carrying Single-Sided Inserts with 4 Cutting Edges Обозначение Designation D D1 ap ae<1> Z L D3 Da Arbor Rd° FFQ4 D040-3-16-12 18.00 40.00 1.50 10.0 3 45.00 38.00 16.00 A 4.3 0.36 FFQ4 D040-4-16-12 18.00 40.00 1.50 10.0 4 45.00 38.00 16.00 A 4.3 0.25 FFQ4 D050-4-22-12 28.00 50.00 1.50 10.0 4 50.00 48.00 22.00 A 2.7 0.38 FFQ4 D050-5-22-12 28.00 50.00 1.50 10.0 5 50.00 48.00 22.00 A 2.7 0.37 FFQ4 D063-6-22-12 41.00 63.00 1.50 10.0 6 50.00 48.00 22.00 A 1.8 0.49 FFQ4 D080-7-27-12 58.00 80.00 1.50 10.0 7 50.00 76.00 27.00 A 1.2 1.05 FFQ4 D100-8-32-12 78.00 100.00 1.50 10.0 8 50.00 78.00 32.00 B 0.9 1.34 Radius for programming 3.1 mm For user guide, see pages 462-468 (1) Plunging width For inserts, see pages: FFQ4 SOMT 1205 (445) Spare Parts Обозначение Designation 0 4 FFQ4 D040-3-16-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M10X35 DIN912 FFQ4 D040-4-16-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR PS 118-0416 FFQ4 D050-4-22-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M10X35 DIN912 FFQ4 D050-5-22-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M10X35 DIN912 FFQ4 D063-6-22-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M10X35 DIN912 FFQ4 D080-7-27-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 SR M12X30DIN912 FFQ4 D100-8-32-12 SR M4X0.7-L9.6 IP15 SW6-T BLD IP15/S7 Table - Average Cutting Data for FFQ4-12 Fast Feed Face Mills Workpiece Material D.O.C. ap mm Cutting speed Feed fz mm/tooth ISO class ISCAR Hardness, HB Typical representstive Insert Carbide Coolant DIN/ ISO 513 Description mat. group AISI/ SAE/ ASTM DIN W.-Nr. type grade Recommended Range Vc, m/min Recommended Range Non-alloy 1-5 130-180 1020 1.0402 IC808 150-220 1.5 0.5-2.0 Dry steel IC830 140-200 1.6 0.5-2.0 Dry/Wet 6-8 260-300 4340 1.6582 IC808 140-200 1.5 0.5-2.0 Dry Low alloy IC830 120-180 1.6 0.5-2.0 Dry/Wet steel 9 HRC 3135 1.5710 IC808 130-180 1.5 0.5-1.8 Dry P 35-42 T IC830 1.5 0.5-1.5 120-160 1.5 0.5-1.8 Dry/Wet High alloy 10-11 200-220 H13 1.2344 IC808 120-170 1.3 0.5-1.8 Dry steel IC830 100-150 1.4 0.5-1.8 Dry/Wet Ferritic/ martensitic stainless steel 12-13 200 420 1.4021 IC808 110-160 1.3 0.5-1.8 Dry J IC830 100-150 1.4 0.5-1.8 Dry/Wet IC830 80-140 1.0 0.5-1.5 M Austenitic 14 200 304L 1.4306 HP IC808 1.5 0.5-1.5 100-160 1.0 0.5-1.5 Wet stainless steel IC5820 100-160 1.0 0.5-1.6 IC882 80-130 1.0 0.5-1.8 Grey cast iron Nodular cast iron 15-16 250 Class 40 0.6025 (GG25) IC810 150-220 1.5 0.5-2.0 K 17-18 200 Class 65-45-12 0.7050 (GGG50) T/T20 IC810 1.5 0.5-1.5 120-200 1.5 0.5-2.0 Dry IC830 23-35 0.7 0.5-1.0 33-35 340 Inconel 2.4668 IC808 25-40 0.7 0.4-1.0 High temperature alloys 718 IC5820 23-35 0.7 0.5-1.0 S HP IC882 1.5 0.5-1.5 20-30 0.7 0.5-1.0 Wet IC830 20-45 0.7 0.5-1.0 36-37 HRC AMS 3.7165 IC808 20-30 0.7 0.4-1.0 35-40 R56400 (Ti6Al4V) IC5820 20-30 0.7 0.5-1.0 IC882 20-30 0.9 0.5-1.0 H Hardened steel 38 HRC 45-49 HARDOX 450 plate T IC808 1 0.5-1.5 50-75 0.5 0.4-0.5 Dry ISCAR material group in accordance with VDI 3323 standard Quenched and tempered For machining in unstable conditions, the recommended cutting data should be reduced by 20-30%. FAST FEED MILLING TOOLS
