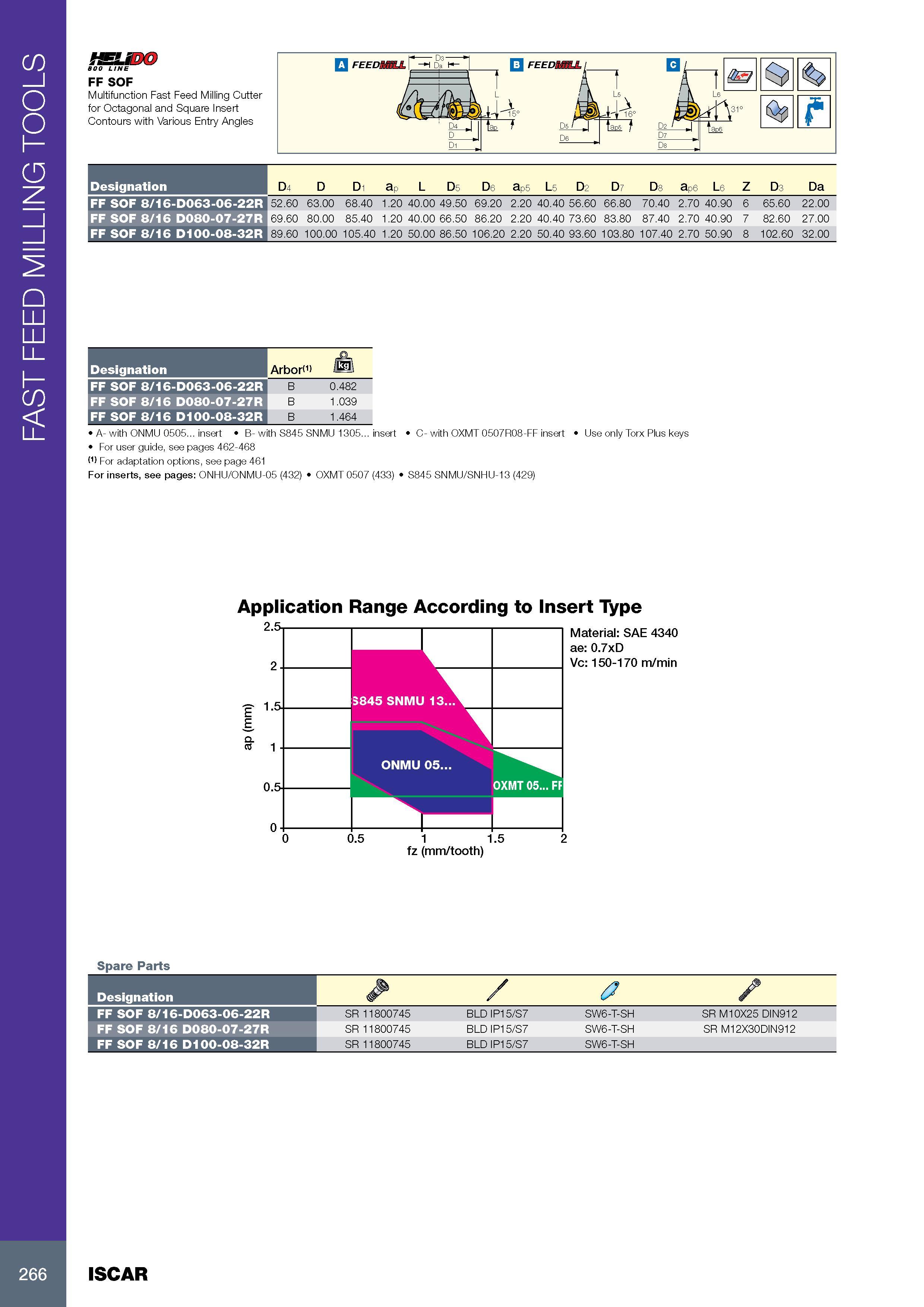

FAST FEED MILLING TOOLS BOO LINE FF SOF Multifunction Fast Feed Milling Cutter for Octagonal and Square Insert Contours with Various Entry Angles Обозначение Designation FF SOF 8/16-D063-06-22R FF SOF 8/16 D080-07-27R FF SOF 8/16 D100-08-32R D4 D D1 ap L D5 D6 ap5 L5 D2 D7 D8 ap6 L6 Z D3 Da 52.60 63.00 68.40 1.20 40.00 49.50 69.20 2.20 40.40 56.60 66.80 70.40 2.70 40.90 6 65.60 22.00 69.60 80.00 85.40 1.20 40.00 66.50 86.20 2.20 40.40 73.60 83.80 87.40 2.70 40.90 7 82.60 27.00 89.60 100.00 105.40 1.20 50.00 86.50 106.20 2.20 50.40 93.60 103.80 107.40 2.70 50.90 8 102.60 32.00 Обозначение Designation Arbori1) / k i\ FF SOF 8/16-D063-06-22R B 0.482 FF SOF 8/16 D080-07-27R B 1.039 FF SOF 8/16 D100-08-32R B 1.464 A- with ONMU 0505... insert B- with S845 SNMU 1305... insert C- with OXMT 0507R08-FF insert Use only Torx Plus keys For user guide, see pages 462-468 (1) For adaptation options, see page 461 For inserts, see pages: ONHU/ONMU-05 (432) OXMT 0507 (433) S845 SNMU/SNHU-13 (429) Application Range According to Insert Type 2.5 2 1.5 E j= Q. (0 1 0.5 S845 SNMU 13 ONMU 05... OXMT 05... FF Material: SAE 4340 ae: 0.7xD Vc: 150-170 m/min 0.5 1 1.5 fz (mm/tooth) 0 0 2 Spare Parts Обозначение Designation & FF SOF 8/16-D063-06-22R SR 11800745 BLD IP15/S7 SW6-T-SH SR M10X25 DIN912 FF SOF 8/16 D080-07-27R SR 11800745 BLD IP15/S7 SW6-T-SH SR M12X30DIN912 FF SOF 8/16 D100-08-32R SR 11800745 BLD IP15/S7 SW6-T-SH 266 ISCAR
