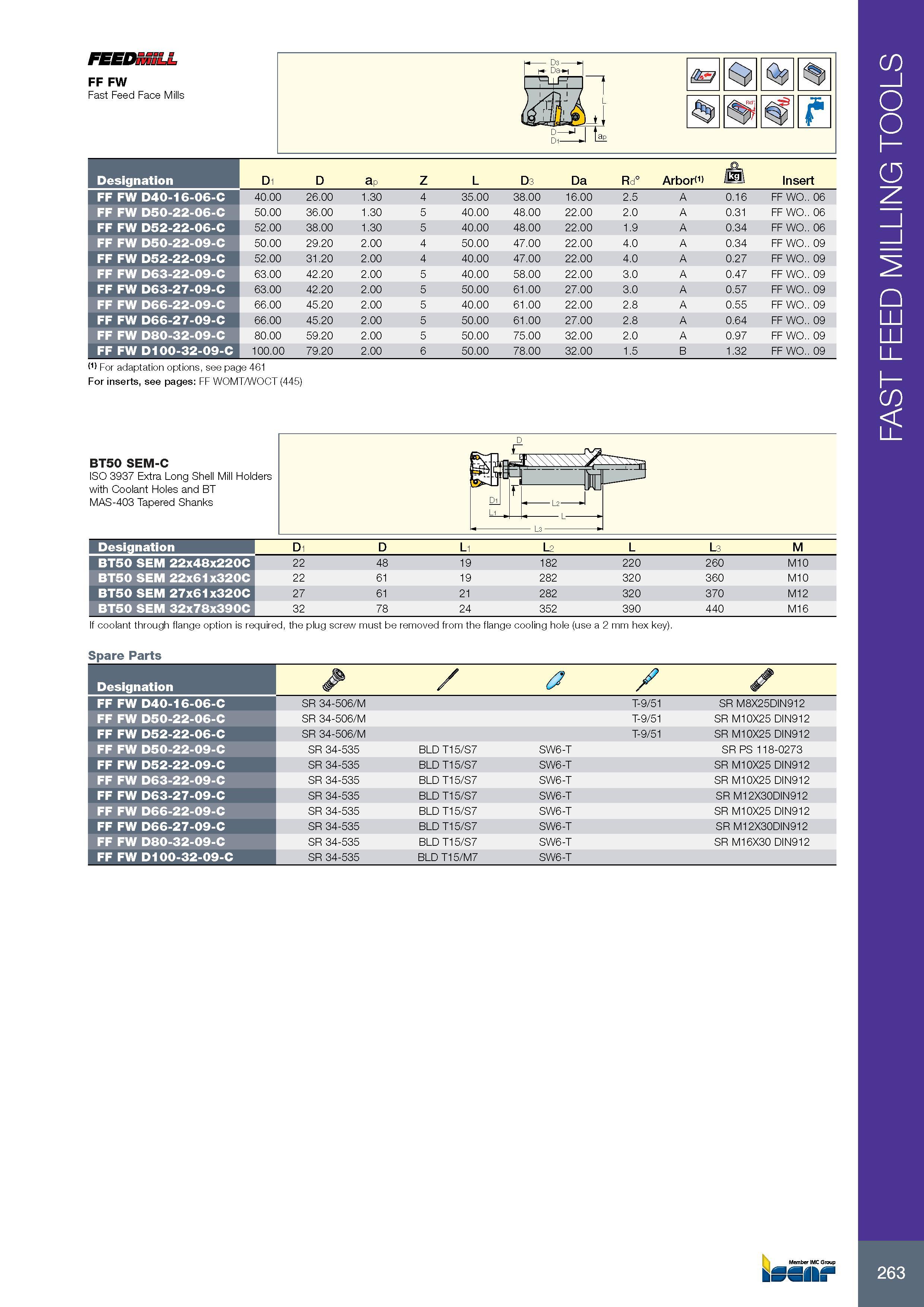

267 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.263

Каталог ISCAR 2017 Ротационный инструмент Стр. 263 0267 ENG Lab2u

FEEDtniLL FF FW Fast Feed Face Mills Обозначение Designation D1 D ap Z L D3 Da Rd° Arbori1) /k l\ Insert FF FW D40-16-06-C 40.00 26.00 1.30 4 35.00 38.00 16.00 2.5 A 0.16 FF WO.. 06 FF FW D50-22-06-C 50.00 36.00 1.30 5 40.00 48.00 22.00 2.0 A 0.31 FF WO.. 06 FF FW D52-22-06-C 52.00 38.00 1.30 5 40.00 48.00 22.00 1.9 A 0.34 FF WO.. 06 FF FW D50-22-09-C 50.00 29.20 2.00 4 50.00 47.00 22.00 4.0 A 0.34 FF WO.. 09 FF FW D52-22-09-C 52.00 31.20 2.00 4 40.00 47.00 22.00 4.0 A 0.27 FF WO.. 09 FF FW D63-22-09-C 63.00 42.20 2.00 5 40.00 58.00 22.00 3.0 A 0.47 FF WO.. 09 FF FW D63-27-09-C 63.00 42.20 2.00 5 50.00 61.00 27.00 3.0 A 0.57 FF WO.. 09 FF FW D66-22-09-C 66.00 45.20 2.00 5 40.00 61.00 22.00 2.8 A 0.55 FF WO.. 09 FF FW D66-27-09-C 66.00 45.20 2.00 5 50.00 61.00 27.00 2.8 A 0.64 FF WO.. 09 FF FW D80-32-09-C 80.00 59.20 2.00 5 50.00 75.00 32.00 2.0 A 0.97 FF WO.. 09 FF FW D100-32-09-C 100.00 79.20 2.00 6 50.00 78.00 32.00 1.5 B 1.32 FF WO.. 09 (1) For adaptation options, see page 461 For inserts, see pages: FF WOMT/WOCT (445) BT50 SEM-C ISO 3937 Extra Long Shell Mill Holders with Coolant Holes and BT MAS-403 Tapered Shanks D1 D L1 L2 L L3 M BT50 SEM 22x48x220C 22 48 19 182 220 260 M10 BT50 SEM 22x61x320C 22 61 19 282 320 360 M10 BT50 SEM 27x61x320C 27 61 21 282 320 370 M12 BT50 SEM 32x78x390C 32 78 24 352 390 440 M16 If coolant through flange option is required, the plug screw must be removed from the flange cooling hole (use a 2 mm hex key). Spare Parts Обозначение Designation /“ FF FW D40-16-06-C SR 34-506/M T-9/51 SR M8X25DIN912 FF FW D50-22-06-C SR 34-506/M T-9/51 SR M10X25 DIN912 FF FW D52-22-06-C SR 34-506/M T-9/51 SR M10X25 DIN912 FF FW D50-22-09-C SR 34-535 BLD T15/S7 SW6-T SR PS 118-0273 FF FW D52-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912 FF FW D63-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912 FF FW D63-27-09-C SR 34-535 BLD T15/S7 SW6-T SR M12X30DIN912 FF FW D66-22-09-C SR 34-535 BLD T15/S7 SW6-T SR M10X25 DIN912 FF FW D66-27-09-C SR 34-535 BLD T15/S7 SW6-T SR M12X30DIN912 FF FW D80-32-09-C SR 34-535 BLD T15/S7 SW6-T SR M16X30 DIN912 FF FW D100-32-09-C SR 34-535 BLD T15/M7 SW6-T 263 FAST FEED MILLING TOOLS
