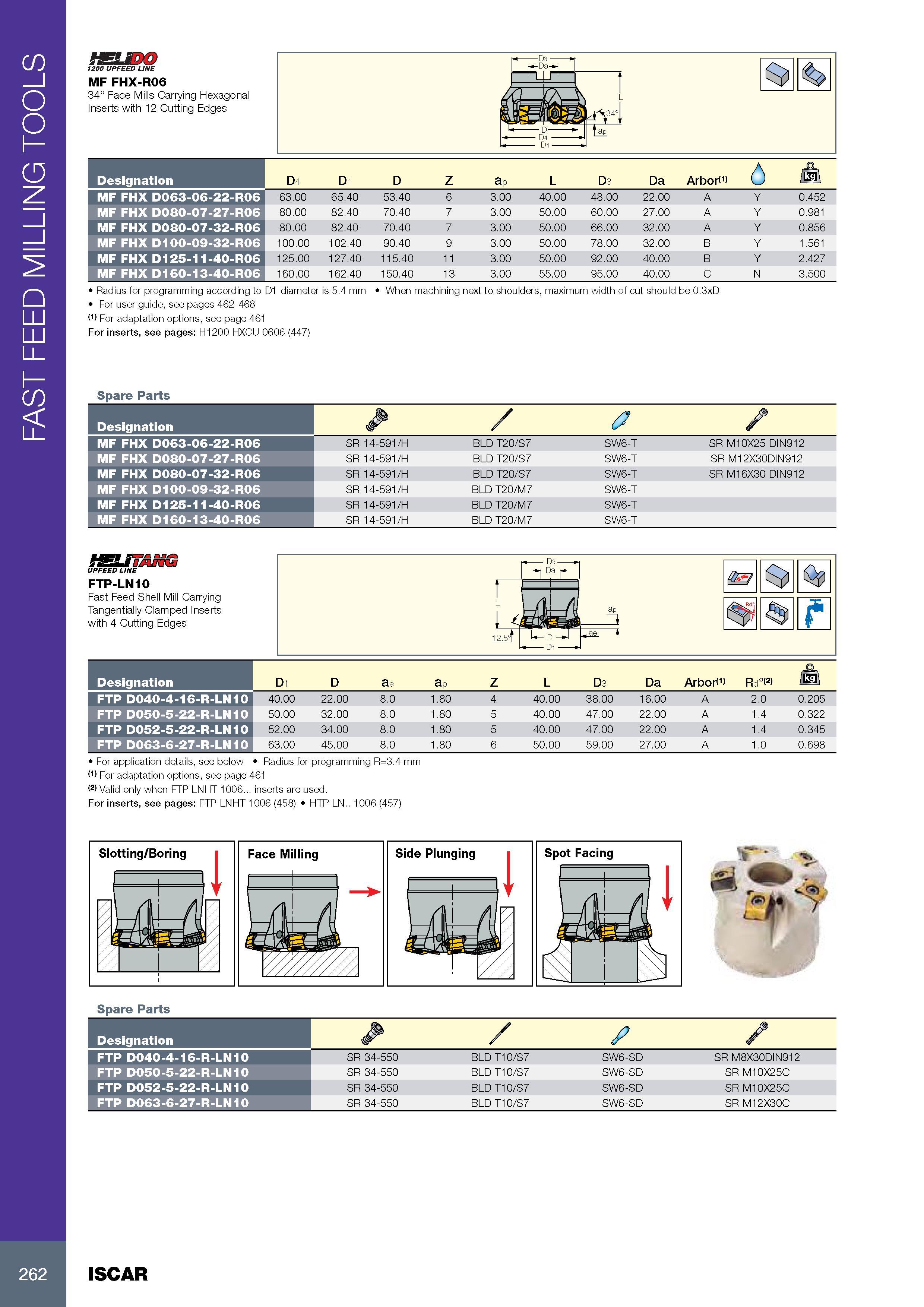

266 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.262

Каталог ISCAR 2017 Ротационный инструмент Стр. 262 0266 ENG Lab2u

FAST FEED MILLING TOOLS HELiDO 1200 UPFEED LINE MF FHX-R06 34° Face Mills Carrying Hexagonal Inserts with 12 Cutting Edges Обозначение Designation D4 D1 D Z ap L D3 Da Arbor 6 MF FHX D063-06-22-R06 63.00 65.40 53.40 6 3.00 40.00 48.00 22.00 A Y 0.452 MF FHX D080-07-27-R06 80.00 82.40 70.40 7 3.00 50.00 60.00 27.00 A Y 0.981 MF FHX D080-07-32-R06 80.00 82.40 70.40 7 3.00 50.00 66.00 32.00 A Y 0.856 MF FHX D100-09-32-R06 100.00 102.40 90.40 9 3.00 50.00 78.00 32.00 B Y 1.561 MF FHX D125-11-40-R06 125.00 127.40 115.40 11 3.00 50.00 92.00 40.00 B Y 2.427 MF FHX D160-13-40-R06 160.00 162.40 150.40 13 3.00 55.00 95.00 40.00 C N 3.500 Radius for programming according to D1 diameter is 5.4 mm When machining next to shoulders, maximum width of cut should be 0.3xD For user guide, see pages 462-468 (1) For adaptation options, see page 461 For inserts, see pages: H1200 HXCU 0606 (447) Spare Parts Обозначение Designation MF FHX D063-06-22-R06 SR 14-591/H BLD T20/S7 SW6-T SR M10X25 DIN912 MF FHX D080-07-27-R06 SR 14-591/H BLD T20/S7 SW6-T SR M12X30DIN912 MF FHX D080-07-32-R06 SR 14-591/H BLD T20/S7 SW6-T SR M16X30 DIN912 MF FHX D100-09-32-R06 SR 14-591/H BLD T20/M7 SW6-T MF FHX D125-11-40-R06 SR 14-591/H BLD T20/M7 SW6-T MF FHX D160-13-40-R06 SR 14-591/H BLD T20/M7 SW6-T fSUTANG UPFEED LINE FTP-LN10 Fast Feed Shell Mill Carrying Tangentially Clamped Inserts with 4 Cutting Edges M D3 - i Da h if 12.5 L- d - T D1 , ae Обозначение Designation D1 D ae ap Z L D3 Da Arbors Rd°(2) FTP D040-4-16-R-LN10 40.00 22.00 8.0 1.80 4 40.00 38.00 16.00 A 2.0 0.205 FTP D050-5-22-R-LN10 50.00 32.00 8.0 1.80 5 40.00 47.00 22.00 A 1.4 0.322 FTP D052-5-22-R-LN10 52.00 34.00 8.0 1.80 5 40.00 47.00 22.00 A 1.4 0.345 FTP D063-6-27-R-LN10 63.00 45.00 8.0 1.80 6 50.00 59.00 27.00 A 1.0 0.698 For application details, see below Radius for programming R=3.4 mm (1) For adaptation options, see page 461 (2) Valid only when FTP LNHT 1006... inserts are used. For inserts, see pages: FTP LNHT 1006 (458) HTP LN.. 1006 (457) Обозначение Designation & FTP D040-4-16-R-LN10 SR 34-550 BLD T10/S7 SW6-SD SR M8X30DIN912 FTP D050-5-22-R-LN10 SR 34-550 BLD T10/S7 SW6-SD SR M10X25C FTP D052-5-22-R-LN10 SR 34-550 BLD T10/S7 SW6-SD SR M10X25C FTP D063-6-27-R-LN10 SR 34-550 BLD T10/S7 SW6-SD SR M12X30C 262 ISCAR
