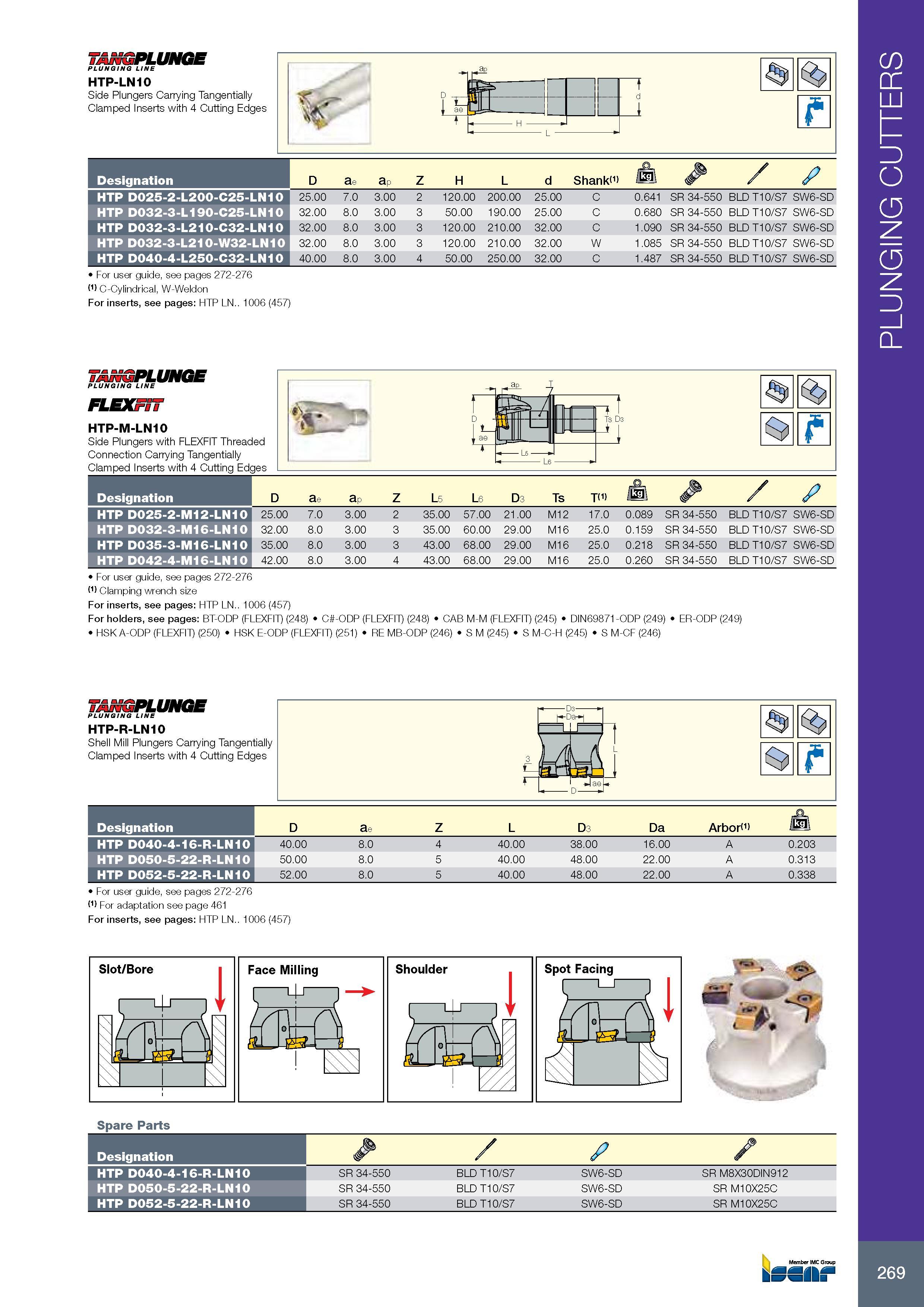

273 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.269

Каталог ISCAR 2017 Ротационный инструмент Стр. 269 0273 ENG Lab2u

TANGPLUNGE PLUNGING LINE HTP-LN10 S ide Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges Обозначение Designation D ae ap Z H L d Shank / k l\ / HTP D025-2-L200-C25-LN10 25.00 7.0 3.00 2 120.00 200.00 25.00 C 0.641 SR 34-550 BLD T10/S7 SW6-SD HTP D032-3-L190-C25-LN10 32.00 8.0 3.00 3 50.00 190.00 25.00 C 0.680 SR 34-550 BLD T10/S7 SW6-SD HTP D032-3-L210-C32-LN10 32.00 8.0 3.00 3 120.00 210.00 32.00 C 1.090 SR 34-550 BLD T10/S7 SW6-SD HTP D032-3-L210-W32-LN10 32.00 8.0 3.00 3 120.00 210.00 32.00 W 1.085 SR 34-550 BLD T10/S7 SW6-SD HTP D040-4-L250-C32-LN10 40.00 8.0 3.00 4 50.00 250.00 32.00 C 1.487 SR 34-550 BLD T10/S7 SW6-SD For user guide, see pages 272-276 (1) Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon For inserts, see pages: HTP LN.. 1006 (457) TANGPLUNGE PLUNGING LINE FLEXFiT HTP-M-LN10 Side Plungers with FLEXFIT Threaded Connection Carrying Tangentially Clamped Inserts with 4 Cutting Edges Обозначение Designation D ae ap Z L5 L6 D3 Ts T (1 pm / z7 HTP D025-2-M12-LN10 25.00 7.0 3.00 2 35.00 57.00 21.00 M12 17.0 0.089 SR 34-550 BLD T10/S7 SW6-SD HTP D032-3-M16-LN10 32.00 8.0 3.00 3 35.00 60.00 29.00 M16 25.0 0.159 SR 34-550 BLD T10/S7 SW6-SD HTP D035-3-M16-LN10 35.00 8.0 3.00 3 43.00 68.00 29.00 M16 25.0 0.218 SR 34-550 BLD T10/S7 SW6-SD HTP D042-4-M16-LN10 42.00 8.0 3.00 4 43.00 68.00 29.00 M16 25.0 0.260 SR 34-550 BLD T10/S7 SW6-SD For user guide, see pages 272-276 (1) Clamping wrench size For inserts, see pages: HTP LN.. 1006 (457) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) ER-ODP (249) TANGPLUNGE PLUNGING LINE HTP-R-LN10 Shell Mill Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges For user guide, see pages 272-276 (1) For adaptation see page 461 For inserts, see pages: HTP LN.. 1006 (457) Обозначение Designation D ae Z L D3 Da Arbor(') pi /kgj\ HTP D040-4-16-R-LN10 40.00 8.0 4 40.00 38.00 16.00 A 0.203 HTP D050-5-22-R-LN10 50.00 8.0 5 40.00 48.00 22.00 A 0.313 HTP D052-5-22-R-LN10 52.00 8.0 5 40.00 48.00 22.00 A 0.338 Обозначение Designation / P / HTP D040-4-16-R-LN10 SR 34-550 BLD T10/S7 SW6-SD SR M8X30DIN912 HTP D050-5-22-R-LN10 SR 34-550 BLD T10/S7 SW6-SD SR M10X25C HTP D052-5-22-R-LN10 SR 34-550 BLD T10/S7 SW6-SD SR M10X25C 269 PLUNGING CUTTERS
