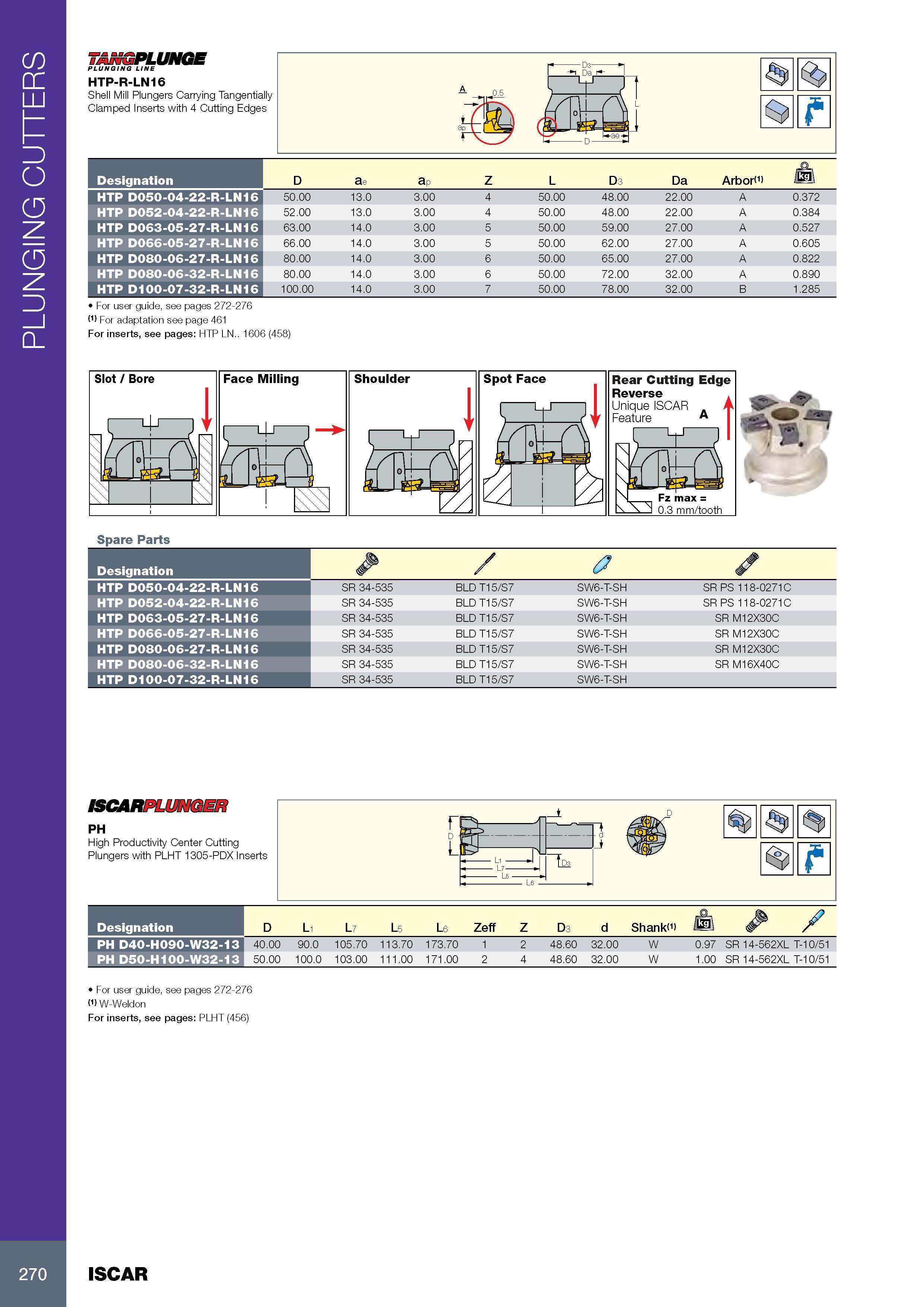

PLUNGING CUTTERS PLUNGE PLUNGING LINE HTP-R-LN16 Shell Mill Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges Обозначение Designation D ae ap Z L D3 Da Arbor<1> /kgi\ HTP D050-04-22-R-LN16 50.00 13.0 3.00 4 50.00 48.00 22.00 A 0.372 HTP D052-04-22-R-LN16 52.00 13.0 3.00 4 50.00 48.00 22.00 A 0.384 HTP D063-05-27-R-LN16 63.00 14.0 3.00 5 50.00 59.00 27.00 A 0.527 HTP D066-05-27-R-LN16 66.00 14.0 3.00 5 50.00 62.00 27.00 A 0.605 HTP D080-06-27-R-LN16 80.00 14.0 3.00 6 50.00 65.00 27.00 A 0.822 HTP D080-06-32-R-LN16 80.00 14.0 3.00 6 50.00 72.00 32.00 A 0.890 HTP D100-07-32-R-LN16 100.00 14.0 3.00 7 50.00 78.00 32.00 B 1.285 For user guide, see pages 272-276 (1) For adaptation see page 461 For inserts, see pages: HTP LN.. 1606 (458) Spare Parts Обозначение Designation & / 0 f HTP D050-04-22-R-LN16 SR 34-535 BLD T15/S7 SW6-T-SH SR PS 118-0271C HTP D052-04-22-R-LN16 SR 34-535 BLD T15/S7 SW6-T-SH SR PS 118-0271C HTP D063-05-27-R-LN16 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C HTP D066-05-27-R-LN16 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C HTP D080-06-27-R-LN16 SR 34-535 BLD T15/S7 SW6-T-SH SR M12X30C HTP D080-06-32-R-LN16 SR 34-535 BLD T15/S7 SW6-T-SH SR M16X40C HTP D100-07-32-R-LN16 SR 34-535 BLD T15/S7 SW6-T-SH ISCARPLUNGER PH High Productivity Center Cutting Plungers with PLHT 1305-PDX Inserts Обозначение Designation PH D40-H090-W32-13 PH D50-H100-W32-13 L1 L7 L5 L6 Zeff D3 d Shank 90.0 100.0 105.70 103.00 113.70 111.00 173.70 171.00 48.60 48.60 32.00 32.00 W W 0.97 1.00 SR 14-562XL T-10/51 SR 14-562XL T-10/51 For user guide, see pages 272-276 (1) W-Weldon For inserts, see pages: PLHT (456) 270 ISCAR
