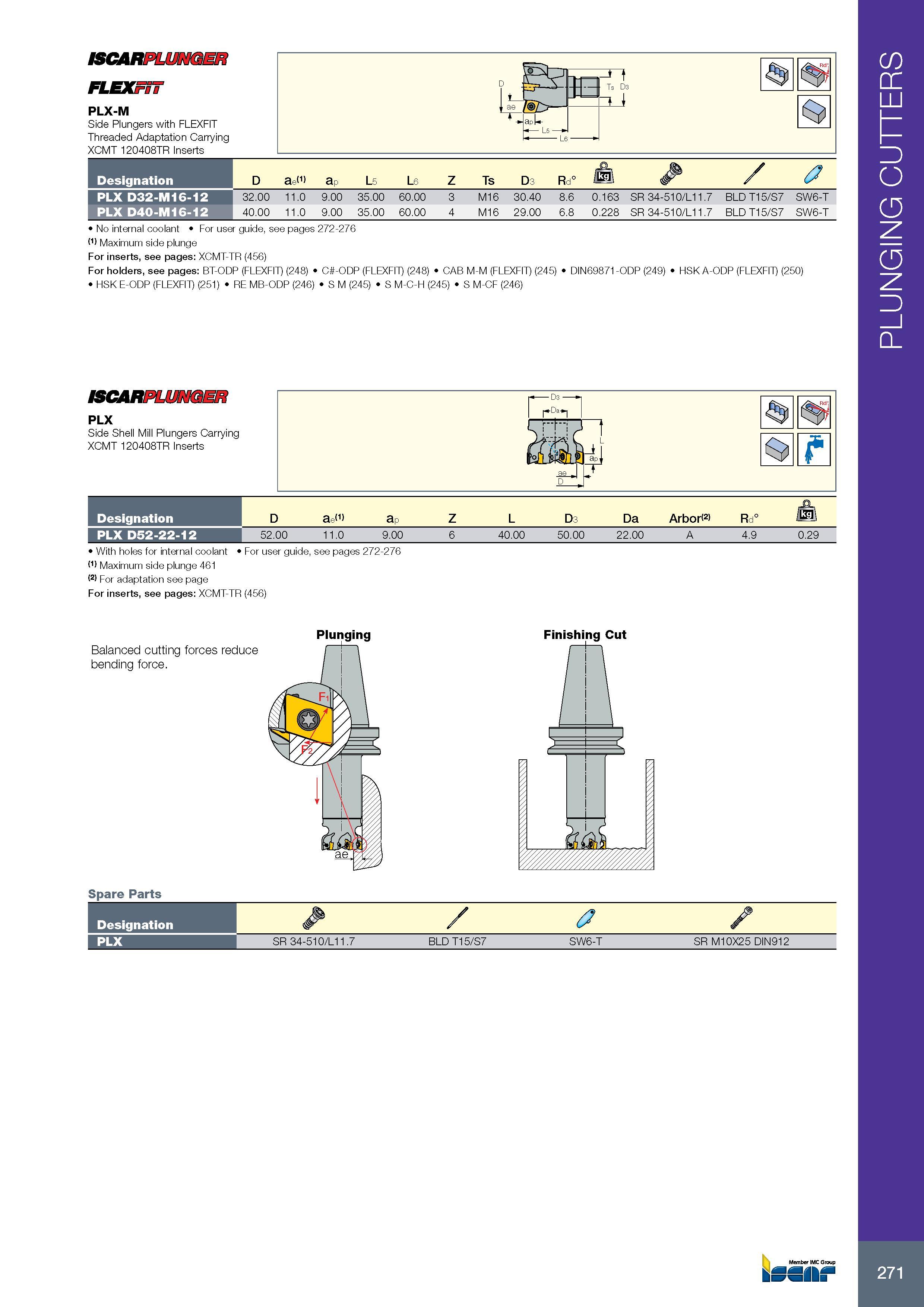

ISCARPLUNGER FLEXFiT PLX-M Side Plungers with FLEXFIT Threaded Adaptation Carrying XCMT 120408TR Inserts Обозначение Designation D ae<1> ap L5 L6 Z Ts D 3 Rd° / kgi\ / 0 PLX D32-M16-12 32.00 11.0 9.00 35.00 60.00 3 M16 30.40 8.6 0.163 SR 34-510/L11.7 BLD T15/S7 SW6-T PLX D40-M16-12 40.00 11.0 9.00 35.00 60.00 4 M16 29.00 6.8 0.228 SR 34-510/L11.7 BLD T15/S7 SW6-T No internal coolant For user guide, see pages 272-276 (1) Maximum side plunge For inserts, see pages: XCMT-TR (456) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) DIN69871-ODP (249) HSK A-ODP (FLEXFIT) (250) ISCARPLUNGER PLX Side Shell Mill Plungers Carrying XCMT 120408TR Inserts Обозначение Designation D ae<1> ap Z L D3 Da Arbor<2> Rd° Q /k PLX D52-22-12 52.00 11.0 9.00 6 40.00 50.00 22.00 A 4.9 0.29 With holes for internal coolant For user guide, see pages 272-276 (1) Maximum side plunge 461 (2) For adaptation see page For inserts, see pages: XCMT-TR (456) Обозначение Designation PLX SR 34-510/L11.7 BLD T15/S7 SW6-T SR M10X25 DIN912 Member IMC Group kSSII t 271 PLUNGING CUTTERS
