258 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.254

Каталог ISCAR 2017 Ротационный инструмент Стр. 254 0258 ENG Lab2u

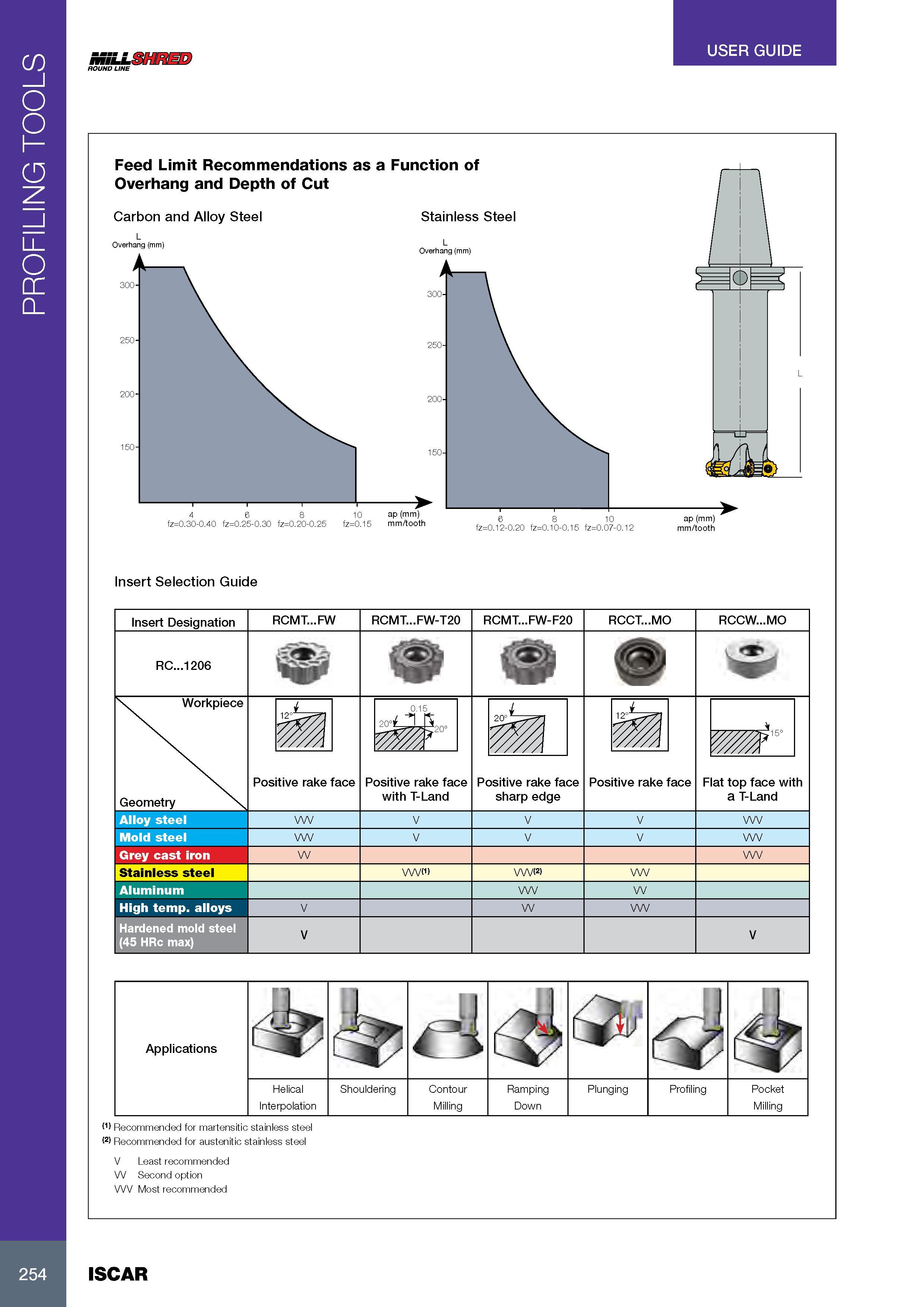

PROFILING TOOLS USER GUIDE MiLLSHRED ROUND LINE Feed Limit Recommendations as a Function of Overhang and Depth of Cut Carbon and Alloy Steel L Overhang (mm) At 4 6 8 fz=0.30-0.40 fz=0.25-0.30 fz=0.20-0.25 10 ap(mm; fz=0.15 mm/tooth 6 8 10 fz=0.12-0.20 fz=0.10-0.15 fz=0.07-0.12 Insert Selection Guide Insert Обозначение Designation RCMT...FW RCMT...FW-T20 RCMT...FW-F20 RCCT...MO RCCW...MO RC...1206 m 0 \ Workpiece Geometry 0.15 P< ce 4 F h iff ti Positive rake face Positive rake face with T-Land sitive rake fa sharp edge Positive rake face lat top face wit a T-Land Alloy steel VVV V V V VVV Mold steel VVV V V V VVV Grey cast iron VV VVV Stainless steel VVV(1) VVV(2) VVV Aluminum VVV VV High temp. alloys V VV VVV Hardened mold steel (45 HRc max) V V Applications & & Helical Shouldering Contour Ramping Plunging Profiling Pocket Interpolation Milling Down Milling (1) Recommended for martensitic stainless steel (2) Recommended for austenitic stainless steel V Least recommended VV Second option VVV Most recommended 254 ISCAR
