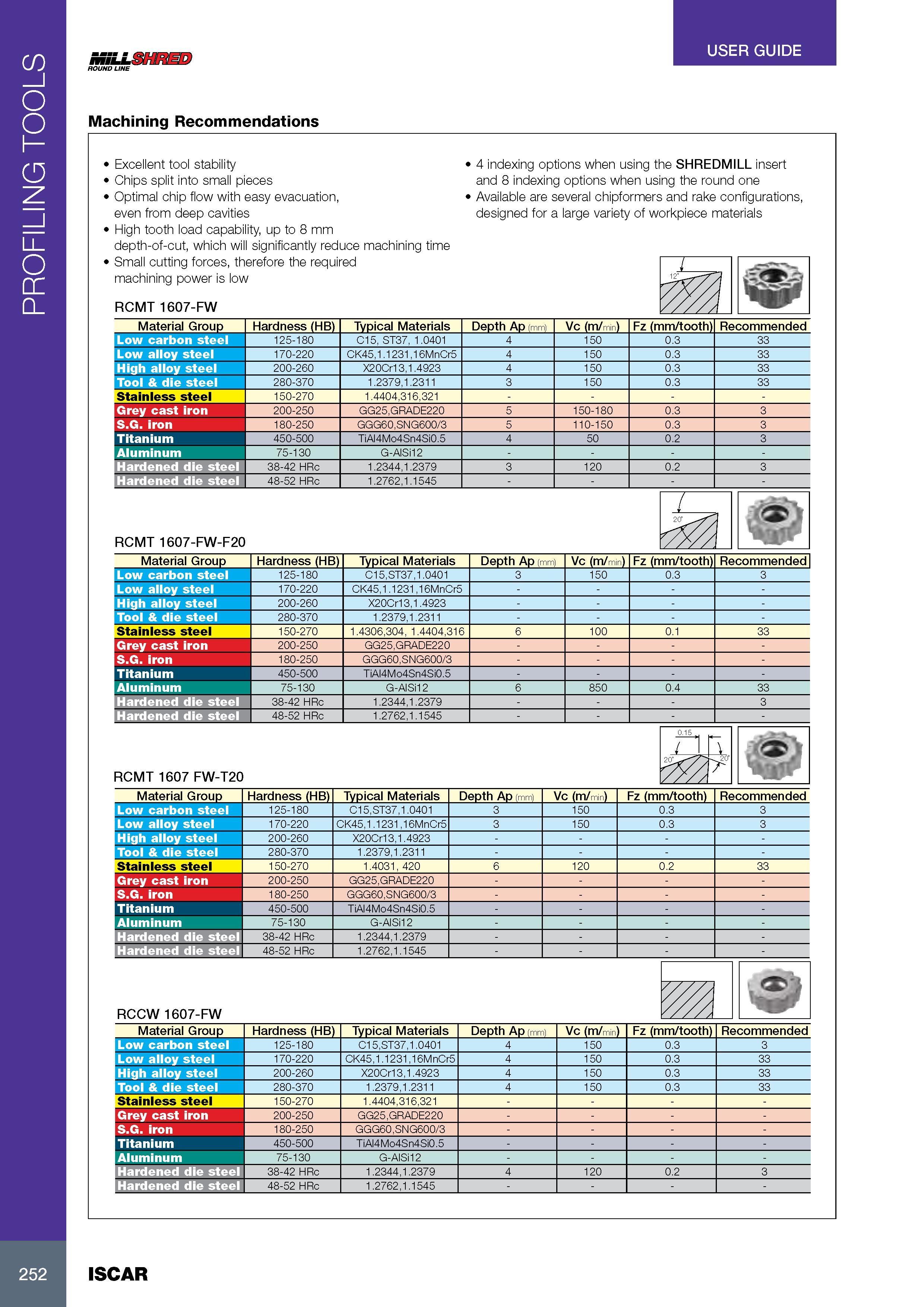

PROFILING TOOLS USER GUIDE MiLLSHRED ROUND LINE Machining Recommendations Excellent tool stability Chips split into small pieces Optimal chip flow with easy evacuation, even from deep cavities High tooth load capability, up to 8 mm depth-of-cut, which will significantly reduce machining time Small cutting forces, therefore the required machining power is low RCMT 1607-FW 4 indexing options when using the SHREDMILL insert and 8 indexing options when using the round one Available are several chipformers and rake configurations, designed for a large variety of workpiece materials Material Group 1 Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended 125-180 C15, ST37, 1.0401 4 150 0.3 33 Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 150 0.3 33 High alloy steel 200-260 X20Cr13,1.4923 4 150 0.3 33 Tool & die steel 280-370 1.2379,1.2311 3 150 0.3 33 Stainless steel 1 150-270 1.4404,316,321 Grey cast iron 200-250 GG25,GRADE220 5 150-180 0.3 3 S.G. iron 180-250 GGG60,SNG600/3 5 110-150 0.3 3 Titanium 450-500 TiAI4Mo4Sn4Si0.5 4 50 0.2 3 Aluminum 75-130 G-AISi12 Hardened die steel 38-42 HRc 1.2344,1.2379 3 120 0.2 3 Hardened die steel 48-52 HRc 1.2762,1.1545 RCMT 1607-FW-F20 L Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 3 150 0.3 3 Low alloy steel 170-220 CK45,1.1231,16MnCr5 High alloy steel 200-260 X20Cr13,1.4923 Tool & die steel 280-370 1.2379,1.2311 Stainless steel 150-270 1.4306,304, 1.4404,316 6 100 0.1 33 Grey cast iron 200-250 GG25,GRADE220 S.G. iron 180-250 GGG60,SNG600/3 Titanium 450-500 TiAI4Mo4Sn4Si0.5 Aluminum 75-130 G-AISi12 6 850 0.4 33 Hardened die steel 38-42 HRc 1.2344,1.2379 - 3 Hardened die steel 48-52 HRc 1.2762,1.1545 RCMT 1607 FW-T20 nr Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 3 150 0.3 3 Low all >y ste e l 170-220 CK45,1.1231,16MnCr5 3 150 0.3 3 High all oy st e el 200-260 X20Cr13,1.4923 Tool & d lie st e el 280-370 1.2379,1.2311 Stainless steel 150-270 1.4031, 420 6 120 0.2 33 Grey cast iron 200-250 GG25,GRADE220 S.G. iron 180-250 GGG60,SNG600/3 Titanium 450-500 TiAI4Mo4Sn4Si0.5 Aluminum 75-130 G-AISi12 Hardened die steel 38-42 HRc 1.2344,1.2379 Hardened die steel 48-52 HRc 1.2762,1.1545 RCCW 1607-FW Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended 125-180 C15,ST37,1.0401 4 150 0.3 3 Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 150 0.3 33 High alloy steel 200-260 X20Cr13,1.4923 4 150 0.3 33 Tool & die steel 280-370 1.2379,1.2311 4 150 0.3 33 Stainless steel 150-270 1.4404,316,321 Grey cast iron 200-250 GG25,GRADE220 S.G. iron 180-250 GGG60,SNG600/3 Titanium 450-500 TiAI4Mo4Sn4Si0.5 Aluminum 75-130 G-AISi12 Hardened die steel 38-42 HRc 1.2344,1.2379 4 120 0.2 3 Hardened die steel 48-52 HRc 1.2762,1.1545 252 ISCAR
