257 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.253

Каталог ISCAR 2017 Ротационный инструмент Стр. 253 0257 ENG Lab2u

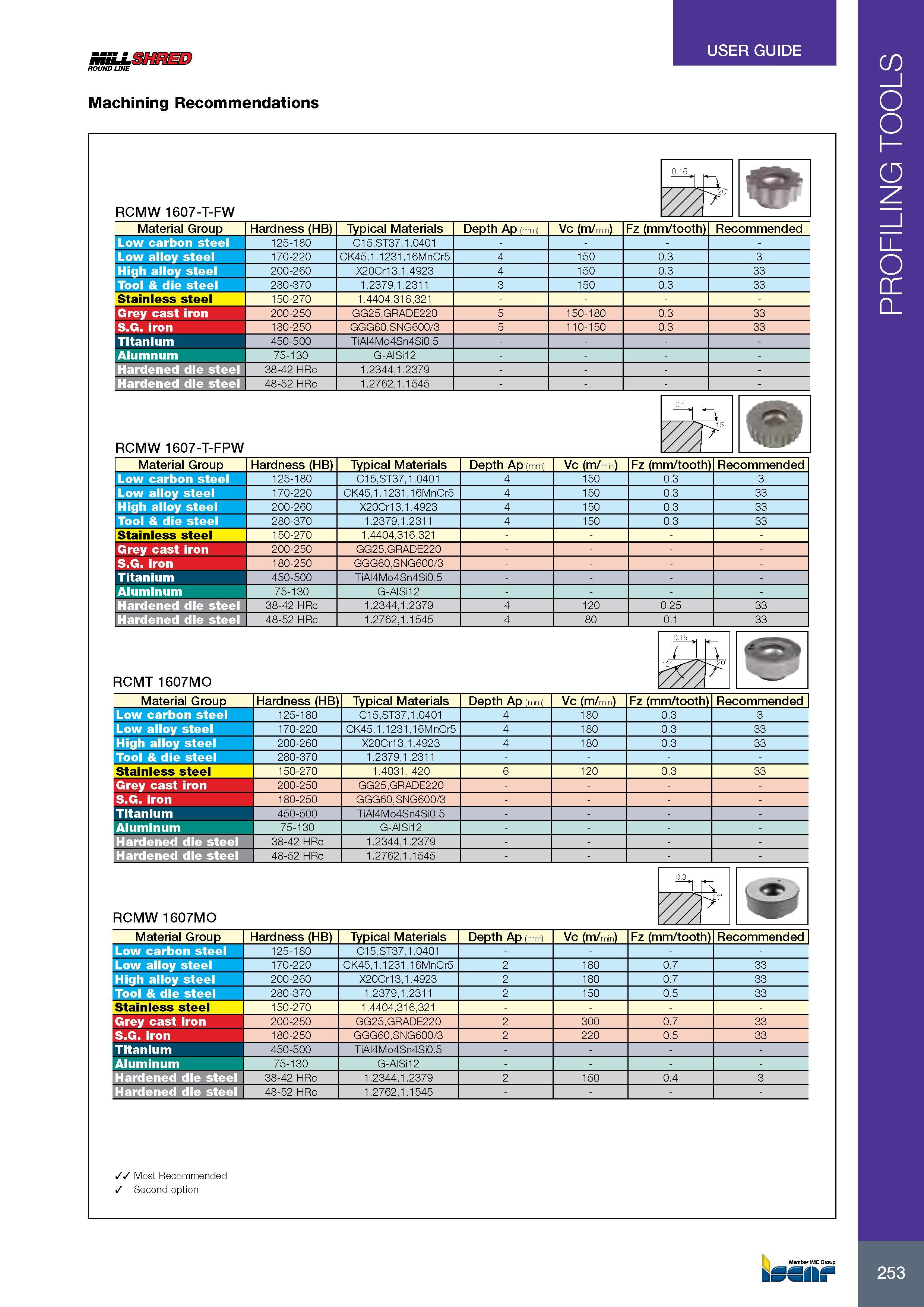

USER GUIDE 253 MiLLSHRED ROUND LINE Machining Recommendations RCMW 1607-T-FW 0.15 r v yo- Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 150 0.3 3 High alloy steel 200-260 X20Cr13,1.4923 4 150 0.3 33 Tool & die steel 280-370 1.2379,1.2311 3 150 0.3 33 Stainless steel 150-270 1.4404,316,321 Grey cast iron 200-250 GG25,GRADE220 5 150-180 0.3 33 S.G. iron 180-250 GGG60,SNG600/3 5 110-150 0.3 33 Titanium 450-500 TiAI4Mo4Sn4Si0.5 Alumnum 75-130 G-AISi12 Hardened die steel 38-42 HRc 1.2344,1.2379 Hardened die steel 48-52 HRc 1.2762,1.1545 RCMW 1607-T-FPW r v5' 1 Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended Low carbon steel 125-180 C15,ST37,1.0401 4 150 0.3 3 Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 150 0.3 33 High alloy steel 200-260 X20Cr13,1.4923 4 150 0.3 33 Tool & die steel 280-370 1.2379,1.2311 4 150 0.3 33 1 Stainless steel 150-270 1.4404,316,321 Grey cast iron 200-250 GG25,GRADE220 S.G. iron 180-250 GGG60,SNG600/3 Titanium 450-500 TiAI4Mo4Sn4Si0.5 Aluminum 75-130 G-AISi12 Hardened die steel 38-42 HRc 1.2344,1.2379 4 120 0.25 33 Hardened die steel 48-52 HRc 1.2762,1.1545 4 80 0.1 33 RCMT 1607MO 0.15 on I. Material Group Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended 1 Low carbon steel 125-180 C15,ST37,1.0401 4 180 0.3 3 Low alloy steel 170-220 CK45,1.1231,16MnCr5 4 180 0.3 33 High alloy steel 200-260 X20Cr13,1.4923 4 180 0.3 33 Tool & die steel 280-370 1.2379,1.2311 Stainless steel 150-270 1.4031, 420 6 120 0.3 33 Grey cast iron 200-250 GG25,GRADE220 S.G. iron 180-250 GGG60,SNG600/3 Titanium 450-500 TiAI4Mo4Sn4Si0.5 Aluminum 75-130 G-AISi12 Hardened die steel 38-42 HRc 1.2344,1.2379 Hardened die steel 48-52 HRc 1.2762,1.1545 RCMW 1607MO 0.3 n 1 2°’ Material Group 1 Hardness (HB) Typical Materials Depth Ap (mm) Vc (m/min) Fz (mm/tooth) Recommended 125-180 C15,ST37,1.0401 Low alloy steel 170-220 CK45,1.1231,16MnCr5 2 180 0.7 33 High alloy steel 200-260 X20Cr13,1.4923 2 180 0.7 33 Tool & die steel 280-370 1.2379,1.2311 2 150 0.5 33 Stainless steel 150-270 1.4404,316,321 Grey cast iron 200-250 GG25,GRADE220 2 300 0.7 33 S.G. iron 180-250 GGG60,SNG600/3 2 220 0.5 33 Titanium 450-500 TiAI4Mo4Sn4Si0.5 Aluminum 75-130 G-AISi12 Hardened die steel 38-42 HRc 1.2344,1.2379 2 150 0.4 3 Hardened die steel 48-52 HRc 1.2762,1.1545 // Most Recommended / Second option PROFILING TOOLS
