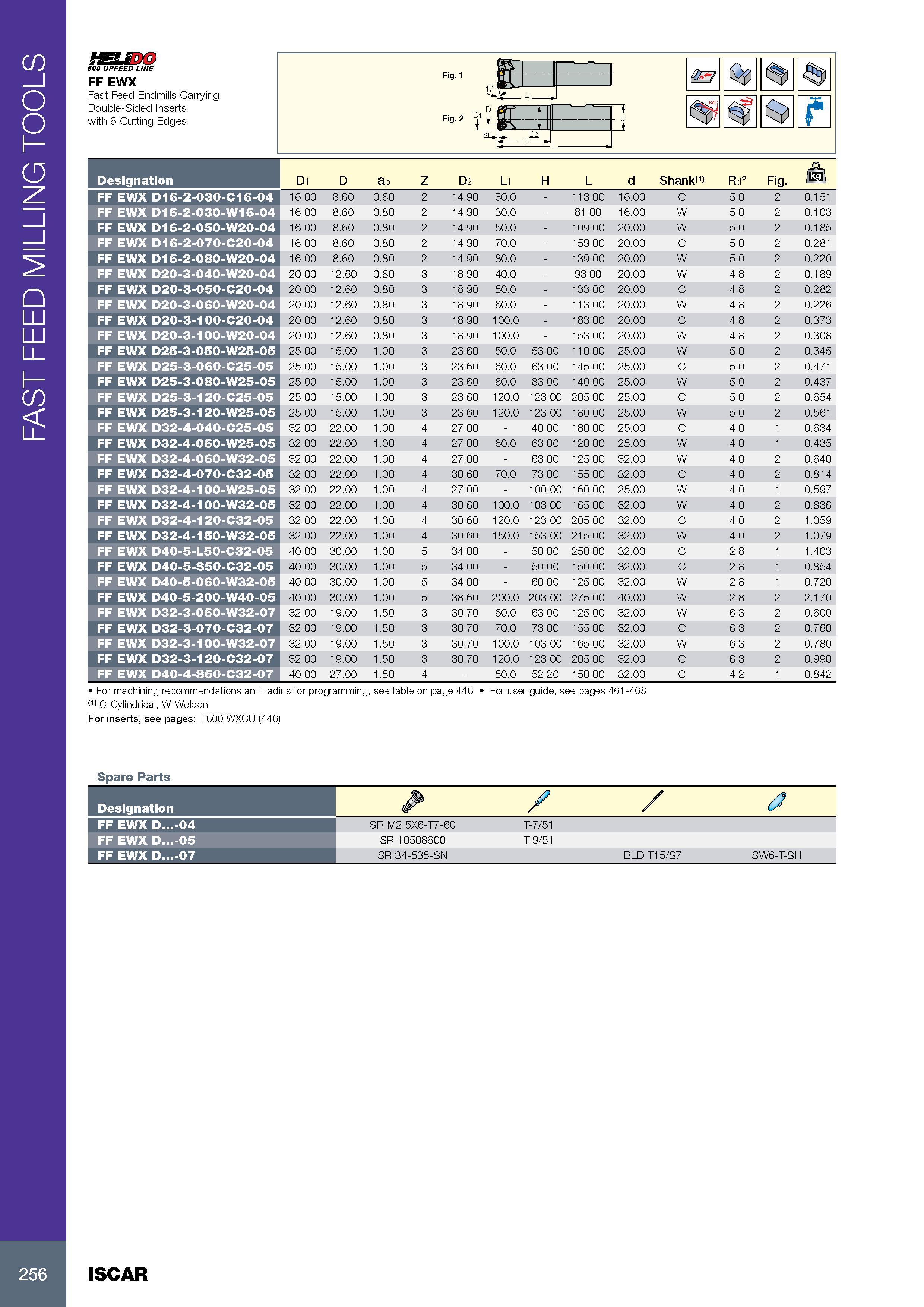

260 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.256

Каталог ISCAR 2017 Ротационный инструмент Стр. 256 0260 ENG Lab2u

FAST FEED MILLING TOOLS Обозначение Designation D1 D ap Z D2 L1 H L d Shank<1) Rd° Fig. M FF EWX D16-2-030-C16-04 16.00 8.60 0.80 2 14.90 30.0 - 113.00 16.00 C 5.0 2 0.151 FF EWX D16-2-030-W16-04 16.00 8.60 0.80 2 14.90 30.0 - 81.00 16.00 W 5.0 2 0.103 FF EWX D16-2-050-W20-04 16.00 8.60 0.80 2 14.90 50.0 - 109.00 20.00 W 5.0 2 0.185 FF EWX D16-2-070-C20-04 16.00 8.60 0.80 2 14.90 70.0 - 159.00 20.00 C 5.0 2 0.281 FF EWX D16-2-080-W20-04 16.00 8.60 0.80 2 14.90 80.0 - 139.00 20.00 W 5.0 2 0.220 FF EWX D20-3-040-W20-04 20.00 12.60 0.80 3 18.90 40.0 - 93.00 20.00 W 4.8 2 0.189 FF EWX D20-3-050-C20-04 20.00 12.60 0.80 3 18.90 50.0 - 133.00 20.00 C 4.8 2 0.282 FF EWX D20-3-060-W20-04 20.00 12.60 0.80 3 18.90 60.0 - 113.00 20.00 W 4.8 2 0.226 FF EWX D20-3-100-C20-04 20.00 12.60 0.80 3 18.90 100.0 - 183.00 20.00 C 4.8 2 0.373 FF EWX D20-3-100-W20-04 20.00 12.60 0.80 3 18.90 100.0 - 153.00 20.00 W 4.8 2 0.308 FF EWX D25-3-050-W25-05 25.00 15.00 1.00 3 23.60 50.0 53.00 110.00 25.00 W 5.0 2 0.345 FF EWX D25-3-060-C25-05 25.00 15.00 1.00 3 23.60 60.0 63.00 145.00 25.00 C 5.0 2 0.471 FF EWX D25-3-080-W25-05 25.00 15.00 1.00 3 23.60 80.0 83.00 140.00 25.00 W 5.0 2 0.437 FF EWX D25-3-120-C25-05 25.00 15.00 1.00 3 23.60 120.0 123.00 205.00 25.00 C 5.0 2 0.654 FF EWX D25-3-120-W25-05 25.00 15.00 1.00 3 23.60 120.0 123.00 180.00 25.00 W 5.0 2 0.561 FF EWX D32-4-040-C25-05 32.00 22.00 1.00 4 27.00 - 40.00 180.00 25.00 C 4.0 1 0.634 FF EWX D32-4-060-W25-05 32.00 22.00 1.00 4 27.00 60.0 63.00 120.00 25.00 W 4.0 1 0.435 FF EWX D32-4-060-W32-05 32.00 22.00 1.00 4 27.00 - 63.00 125.00 32.00 W 4.0 2 0.640 FF EWX D32-4-070-C32-05 32.00 22.00 1.00 4 30.60 70.0 73.00 155.00 32.00 C 4.0 2 0.814 FF EWX D32-4-100-W25-05 32.00 22.00 1.00 4 27.00 - 100.00 160.00 25.00 W 4.0 1 0.597 FF EWX D32-4-100-W32-05 32.00 22.00 1.00 4 30.60 100.0 103.00 165.00 32.00 W 4.0 2 0.836 FF EWX D32-4-120-C32-05 32.00 22.00 1.00 4 30.60 120.0 123.00 205.00 32.00 C 4.0 2 1.059 FF EWX D32-4-150-W32-05 32.00 22.00 1.00 4 30.60 150.0 153.00 215.00 32.00 W 4.0 2 1.079 FF EWX D40-5-L50-C32-05 40.00 30.00 1.00 5 34.00 - 50.00 250.00 32.00 C 2.8 1 1.403 FF EWX D40-5-S50-C32-05 40.00 30.00 1.00 5 34.00 - 50.00 150.00 32.00 C 2.8 1 0.854 FF EWX D40-5-060-W32-05 40.00 30.00 1.00 5 34.00 - 60.00 125.00 32.00 W 2.8 1 0.720 FF EWX D40-5-200-W40-05 40.00 30.00 1.00 5 38.60 200.0 203.00 275.00 40.00 W 2.8 2 2.170 FF EWX D32-3-060-W32-07 32.00 19.00 1.50 3 30.70 60.0 63.00 125.00 32.00 W 6.3 2 0.600 FF EWX D32-3-070-C32-07 32.00 19.00 1.50 3 30.70 70.0 73.00 155.00 32.00 C 6.3 2 0.760 FF EWX D32-3-100-W32-07 32.00 19.00 1.50 3 30.70 100.0 103.00 165.00 32.00 W 6.3 2 0.780 FF EWX D32-3-120-C32-07 32.00 19.00 1.50 3 30.70 120.0 123.00 205.00 32.00 C 6.3 2 0.990 FF EWX D40-4-S50-C32-07 40.00 27.00 1.50 4 - 50.0 52.20 150.00 32.00 C 4.2 1 0.842 For machining recommendations and radius for programming, see table on page 446 For user guide, see pages 461-468 W Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon For inserts, see pages: H600 WXCU (446) Spare Parts Обозначение Designation <7 F F E WX D...-0 4 SR M2.5X6-T7-60 T-7/51 F F E WX D...-0 5 SR 10508600 T-9/51 F F E WX D...-0 7 SR 34-535-SN BLD T15/S7 SW6-T-SH 256 ISCAR
