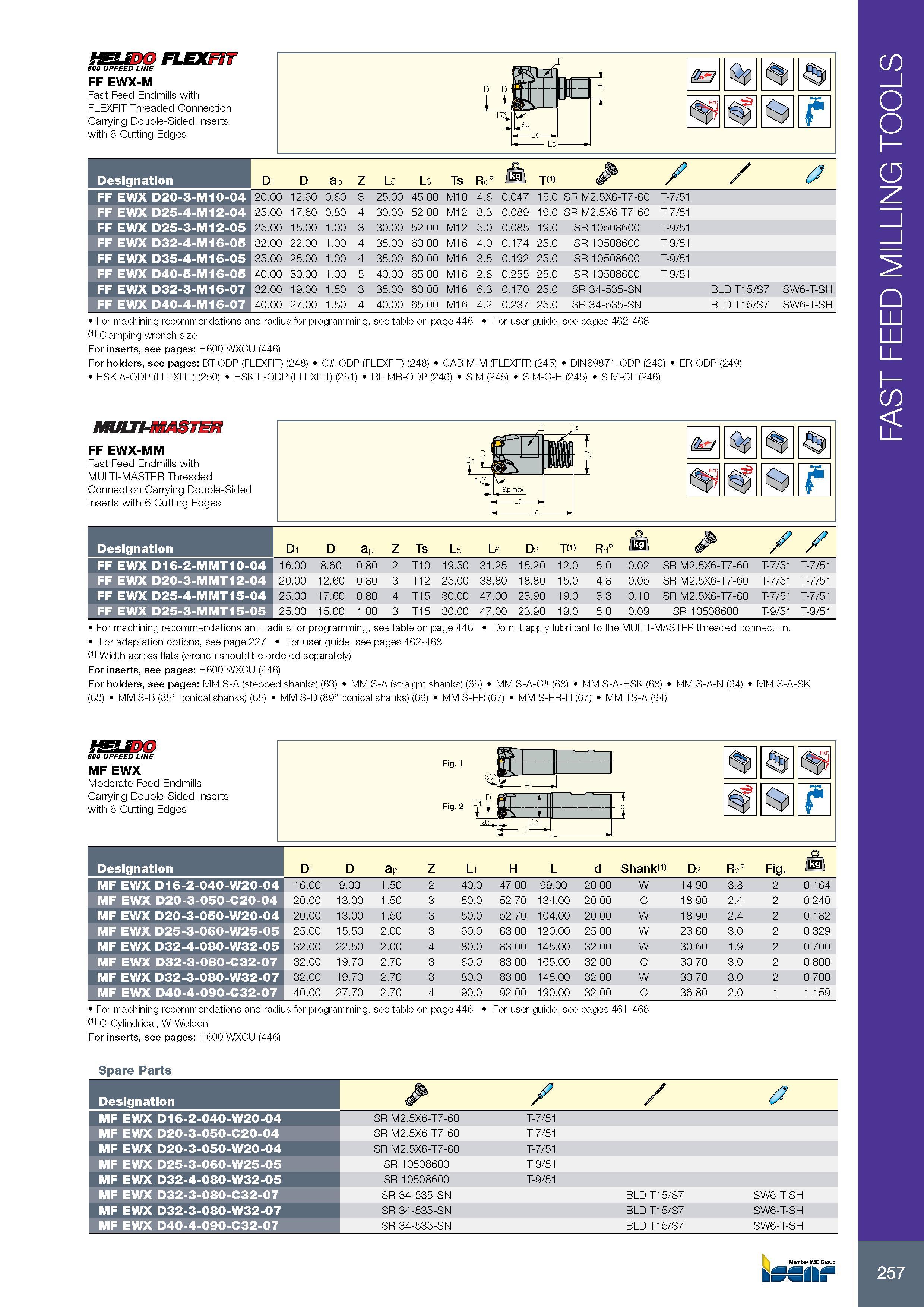

261 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.257

Каталог ISCAR 2017 Ротационный инструмент Стр. 257 0261 ENG Lab2u

ISUDO FLEXFiT 600 UPFEED LINE FF EWX-M Fast Feed Endmills with FLEXFIT Threaded Connection Carrying Double-Sided Inserts with 6 Cutting Edges Обозначение Designation Di D ap Z L5 L6 Ts R d° o /kp TM) FF EWX D20-3-M10-04 20.00 12.60 0.80 3 25.00 45.00 M 0 4.8 0.047 15.0 SR M2.5X6-T7-60 T-7/51 FF EWX D25-4-M12-04 25.00 17.60 0.80 4 30.00 52.00 M1 2 3.3 0.089 19.0 SR M2.5X6-T7-60 T-7/51 FF EWX D25-3-M12-05 25.00 15.00 1.00 3 30.00 52.00 M1 2 5.0 0.085 19.0 SR 10508600 T-9/51 FF EWX D32-4-M16-05 32.00 22.00 1.00 4 35.00 60.00 M1 6 4.0 0.174 25.0 SR 10508600 T-9/51 FF EWX D35-4-M16-05 35.00 25.00 1.00 4 35.00 60.00 M1 6 3.5 0.192 25.0 SR 10508600 T-9/51 FF EWX D40-5-M16-05 40.00 30.00 1.00 5 40.00 65.00 M1 6 2.8 0.255 25.0 SR 10508600 T-9/51 FF EWX D32-3-M16-07 32.00 19.00 1.50 3 35.00 60.00 M1 6 6.3 0.170 25.0 SR 34-535-SN BLD T15/S7 SW6-T-SH FF EWX D40-4-M16-07 40.00 27.00 1.50 4 40.00 65.00 M 6 4.2 0.237 25.0 SR 34-535-SN BLD T15/S7 SW6-T-SH For machining recommendations and radius for programming, see table on page 446 For user guide, see pages 462-468 (1) Clamping wrench size For inserts, see pages: H600 WXCU (446) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) ER-ODP (249) T MULTI-MASTER FF EWX-MM Fast Feed Endmills with MULTI-MASTER Threaded Connection Carrying Double-Sided Inserts with 6 Cutting Edges D D1 l V ii t D3 I 17°. ap max 4 L5 Обозначение Designation D1 D ap Z Ts L 5 L6 D3 TM) Rd° /ka FF EWX D16-2-MMT10-04 16.00 8.60 0.80 2 T10 19.50 31.25 15.20 12.0 5.0 0.02 SR M2.5X6-T7-60 T-7/51 T-7/51 FF EWX D20-3-MMT12-04 20.00 12.60 0.80 3 T12 25.00 38.80 18.80 15.0 4.8 0.05 SR M2.5X6-T7-60 T-7/51 T-7/51 FF EWX D25-4-MMT15-04 25.00 17.60 0.80 4 T15 30.00 47.00 23.90 19.0 3.3 0.10 SR M2.5X6-T7-60 T-7/51 T-7/51 FF EWX D25-3-MMT15-05 25.00 15.00 1.00 3 T15 30.00 47.00 23.90 19.0 5.0 0.09 SR 10508600 T-9/51 T-9/51 For machining recommendations and radius for programming, see table on page 446 Do not apply lubricant to the MULTI-MASTER threaded connection. For adaptation options, see page 227 For user guide, see pages 462-468 (1) Width across flats (wrench should be ordered separately) For inserts, see pages: H600 WXCU (446) For holders, see pages: MM S-A (stepped shanks) (63) MM S-A (straight shanks) (65) MM S-A-C (68) MM S-A-HSK (68) MM S-A-N (64) MM S-A-SK (68) MM S-B (85° conical shanks) (65) MM S-D (89° conical shanks) (66) MM S-ER (67) MM S-ER-H (67) MM TS-A (64) T 600 UPFEED LINE MF EWX Moderate Feed Endmills Carrying Double-Sided Inserts with 6 Cutting Edges Fig. 1 iD EEfl (r ap t L D2J I For machining recommendations and radius for programming, see table on page 446 For user guide, see pages 461-468 (1) Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon For inserts, see pages: H600 WXCU (446) Обозначение Designation D1 D ap Z L1 H L d Shank D2 Rd° Fig. MF EWX D16-2-040-W20-04 16.00 9.00 1.50 2 40.0 47.00 99.00 20.00 W 14.90 3.8 2 0.164 MF EWX D20-3-050-C20-04 20.00 13.00 1.50 3 50.0 52.70 134.00 20.00 C 18.90 2.4 2 0.240 MF EWX D20-3-050-W20-04 20.00 13.00 1.50 3 50.0 52.70 104.00 20.00 W 18.90 2.4 2 0.182 MF EWX D25-3-060-W25-05 25.00 15.50 2.00 3 60.0 63.00 120.00 25.00 W 23.60 3.0 2 0.329 MF EWX D32-4-080-W32-05 32.00 22.50 2.00 4 80.0 83.00 145.00 32.00 W 30.60 1.9 2 0.700 MF EWX D32-3-080-C32-07 32.00 19.70 2.70 3 80.0 83.00 165.00 32.00 C 30.70 3.0 2 0.800 MF EWX D32-3-080-W32-07 32.00 19.70 2.70 3 80.0 83.00 145.00 32.00 W 30.70 3.0 2 0.700 MF EWX D40-4-090-C32-07 40.00 27.70 2.70 4 90.0 92.00 190.00 32.00 C 36.80 2.0 1 1.159 Spare Parts Обозначение Designation & / MF EWX D16-2-040-W20-04 SR M2.5X6-T7-60 T-7/51 MF EWX D20-3-050-C20-04 SR M2.5X6-T7-60 T-7/51 MF EWX D20-3-050-W20-04 SR M2.5X6-T7-60 T-7/51 MF EWX D25-3-060-W25-05 SR 10508600 T-9/51 MF EWX D32-4-080-W32-05 SR 10508600 T-9/51 MF EWX D32-3-080-C32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH MF EWX D32-3-080-W32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH MF EWX D40-4-090-C32-07 SR 34-535-SN BLD T15/S7 SW6-T-SH Member IMC Group kSSII t 30 H 257 FAST FEED MILLING TOOLS
