262 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.258

Каталог ISCAR 2017 Ротационный инструмент Стр. 258 0262 ENG Lab2u

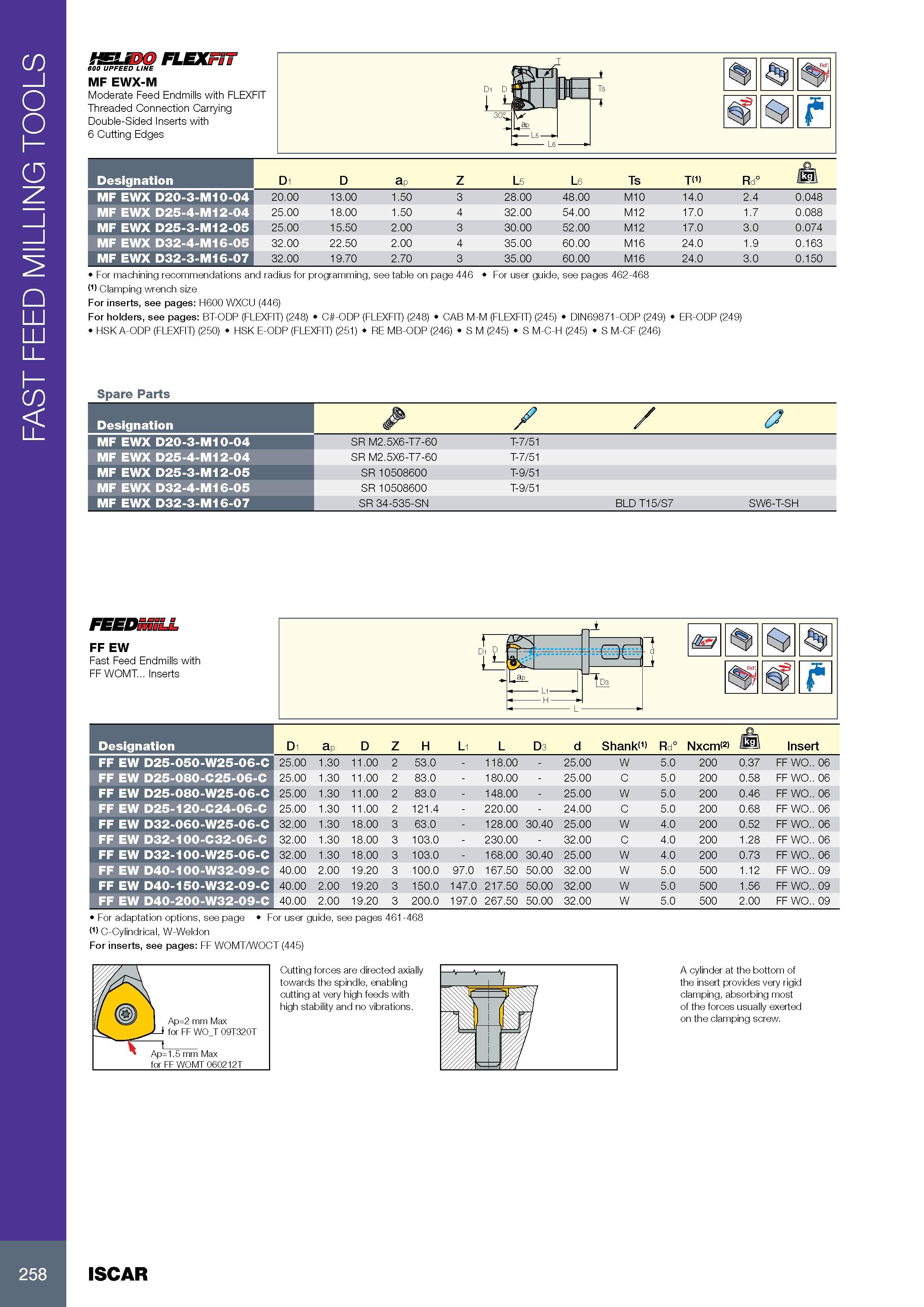

FAST FEED MILLING TOOLS fSUDO FLEXFiT 600 UPFEED LINE MF EWX-M Moderate Feed Endmills with FLEXFIT Threaded Connection Carrying Double-Sided Inserts with 6 Cutting Edges For machining recommendations and radius for programming, see table on page 446 For user guide, see pages 462-468 (1) Clamping wrench size For inserts, see pages: H600 WXCU (446) For holders, see pages: BT-ODP (FLEXFIT) (248) C -ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246) ER-ODP (249) Обозначение Designation D1 D ap Z L5 L6 Ts T <1> ° d oc jp / kgi\ MF EWX D20-3-M10-04 20.00 13.00 1.50 3 28.00 48.00 M10 14.0 2.4 0.048 MF EWX D25-4-M12-04 25.00 18.00 1.50 4 32.00 54.00 M12 17.0 1.7 0.088 MF EWX D25-3-M12-05 25.00 15.50 2.00 3 30.00 52.00 M12 17.0 3.0 0.074 MF EWX D32-4-M16-05 32.00 22.50 2.00 4 35.00 60.00 M16 24.0 1.9 0.163 MF EWX D32-3-M16-07 32.00 19.70 2.70 3 35.00 60.00 M16 24.0 3.0 0.150 Spare Parts Обозначение Designation & MF EWX D20-3-M10-04 SR M2.5X6-T7-60 T-7/51 MF EWX D25-4-M12-04 SR M2.5X6-T7-60 T-7/51 MF EWX D25-3-M12-05 SR 10508600 T-9/51 MF EWX D32-4-M16-05 SR 10508600 T-9/51 MF EWX D32-3-M16-07 SR 34-535-SN BLD T15/S7 SW6-T-SH FF EW Fast Feed Endmills with FF WOMT... Inserts Обозначение Designation D1 ap D Z H L1 L D3 d Shanks R Q. O Nxcm<2> /Ml Insert FF EW D25-050-W25-06-C 25.00 1.30 11.00 2 53.0 - 118.00 - 25.00 W 5.0 200 0.37 FF WO. 06 FF EW D25-080-C25-06-C 25.00 1.30 11.00 2 83.0 - 180.00 - 25.00 C 5.0 200 0.58 FF WO.. 06 FF EW D25-080-W25-06-C 25.00 1.30 11.00 2 83.0 - 148.00 - 25.00 W 5.0 200 0.46 FF WO.. 06 FF EW D25-120-C24-06-C 25.00 1.30 11.00 2 121.4 - 220.00 - 24.00 C 5.0 200 0.68 FF WO.. 06 FF EW D32-060-W25-06-C 32.00 1.30 18.00 3 63.0 - 128.00 30.40 25.00 W 4.0 200 0.52 FF WO.. 06 FF EW D32-100-C32-06-C 32.00 1.30 18.00 3 103.0 - 230.00 - 32.00 C 4.0 200 1.28 FF WO.. 06 FF EW D32-100-W25-06-C 32.00 1.30 18.00 3 103.0 - 168.00 30.40 25.00 W 4.0 200 0.73 FF WO.. 06 FF EW D40-100-W32-09-C 40.00 2.00 19.20 3 100.0 97.0 167.50 50.00 32.00 W 5.0 500 1.12 FF WO.. 09 FF EW D40-150-W32-09-C 40.00 2.00 19.20 3 150.0 147.0 217.50 50.00 32.00 W 5.0 500 1.56 FF WO.. 09 FF EW D40-200-W32-09-C 40.00 2.00 19.20 3 200.0 197.0 267.50 50.00 32.00 W 5.0 500 2.00 FF WO. 09 For adaptation options, see page For user guide, see pages 461-468 (1) Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon For inserts, see pages: FF WOMT/WOCT (445) 1 Ap=2 mm Max for FF WO T 09T320T W t Ap=1.5 mm Max for FF WOMT 060212T Cutting forces are directed axially towards the spindle, enabling cutting at very high feeds with high stability and no vibrations. A cylinder at the bottom of the insert provides very rigid clamping, absorbing most of the forces usually exerted on the clamping screw. T 258 ISCAR
