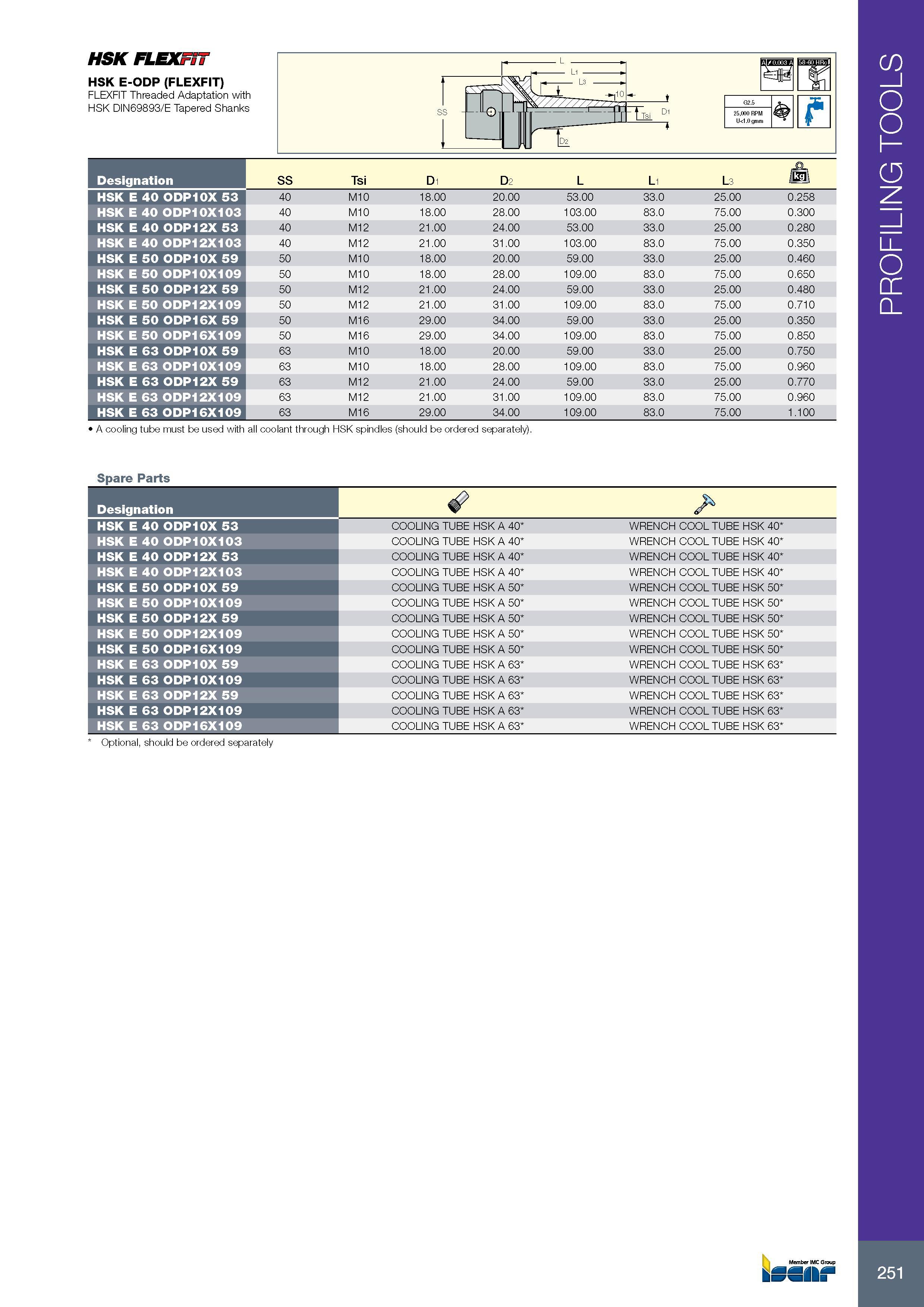

251 HSK FLEXFiT HSK E-ODP (FLEXFIT) FLEXFIT Threaded Adaptation with HSK DIN69893/E Tapered Shanks Обозначение Designation SS Tsi D1 D2 L L1 L3 HSK E 40 ODP10X 53 40 M10 18.00 20.00 53.00 33.0 25.00 0.258 HSK E 40 ODP10X103 40 M10 18.00 28.00 103.00 83.0 75.00 0.300 HSK E 40 ODP12X 53 40 M12 21.00 24.00 53.00 33.0 25.00 0.280 HSK E 40 ODP12X103 40 M12 21.00 31.00 103.00 83.0 75.00 0.350 HSK E 50 ODP10X 59 50 M10 18.00 20.00 59.00 33.0 25.00 0.460 HSK E 50 ODP10X109 50 M10 18.00 28.00 109.00 83.0 75.00 0.650 HSK E 50 ODP12X 59 50 M12 21.00 24.00 59.00 33.0 25.00 0.480 HSK E 50 ODP12X109 50 M12 21.00 31.00 109.00 83.0 75.00 0.710 HSK E 50 ODP16X 59 50 M16 29.00 34.00 59.00 33.0 25.00 0.350 HSK E 50 ODP16X109 50 M16 29.00 34.00 109.00 83.0 75.00 0.850 HSK E 63 ODP10X 59 63 M10 18.00 20.00 59.00 33.0 25.00 0.750 HSK E 63 ODP10X109 63 M10 18.00 28.00 109.00 83.0 75.00 0.960 HSK E 63 ODP12X 59 63 M12 21.00 24.00 59.00 33.0 25.00 0.770 HSK E 63 ODP12X109 63 M12 21.00 31.00 109.00 83.0 75.00 0.960 HSK E 63 ODP16X109 63 M16 29.00 34.00 109.00 83.0 75.00 1.100 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Spare Parts Обозначение Designation HSK E 40 ODP10X 53 COOLING TUBE HSK A 40 WRENCH COOL TUBE HSK 40 HSK E 40 ODP10X103 COOLING TUBE HSK A 40 WRENCH COOL TUBE HSK 40 HSK E 40 ODP12X 53 COOLING TUBE HSK A 40 WRENCH COOL TUBE HSK 40 HSK E 40 ODP12X103 COOLING TUBE HSK A 40 WRENCH COOL TUBE HSK 40 HSK E 50 ODP10X 59 COOLING TUBE HSK A 50 WRENCH COOL TUBE HSK 50 HSK E 50 ODP10X109 COOLING TUBE HSK A 50 WRENCH COOL TUBE HSK 50 HSK E 50 ODP12X 59 COOLING TUBE HSK A 50 WRENCH COOL TUBE HSK 50 HSK E 50 ODP12X109 COOLING TUBE HSK A 50 WRENCH COOL TUBE HSK 50 HSK E 50 ODP16X109 COOLING TUBE HSK A 50 WRENCH COOL TUBE HSK 50 HSK E 63 ODP10X 59 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK E 63 ODP10X109 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK E 63 ODP12X 59 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK E 63 ODP12X109 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK E 63 ODP16X109 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 Optional, should be ordered separately PROFILING TOOLS
