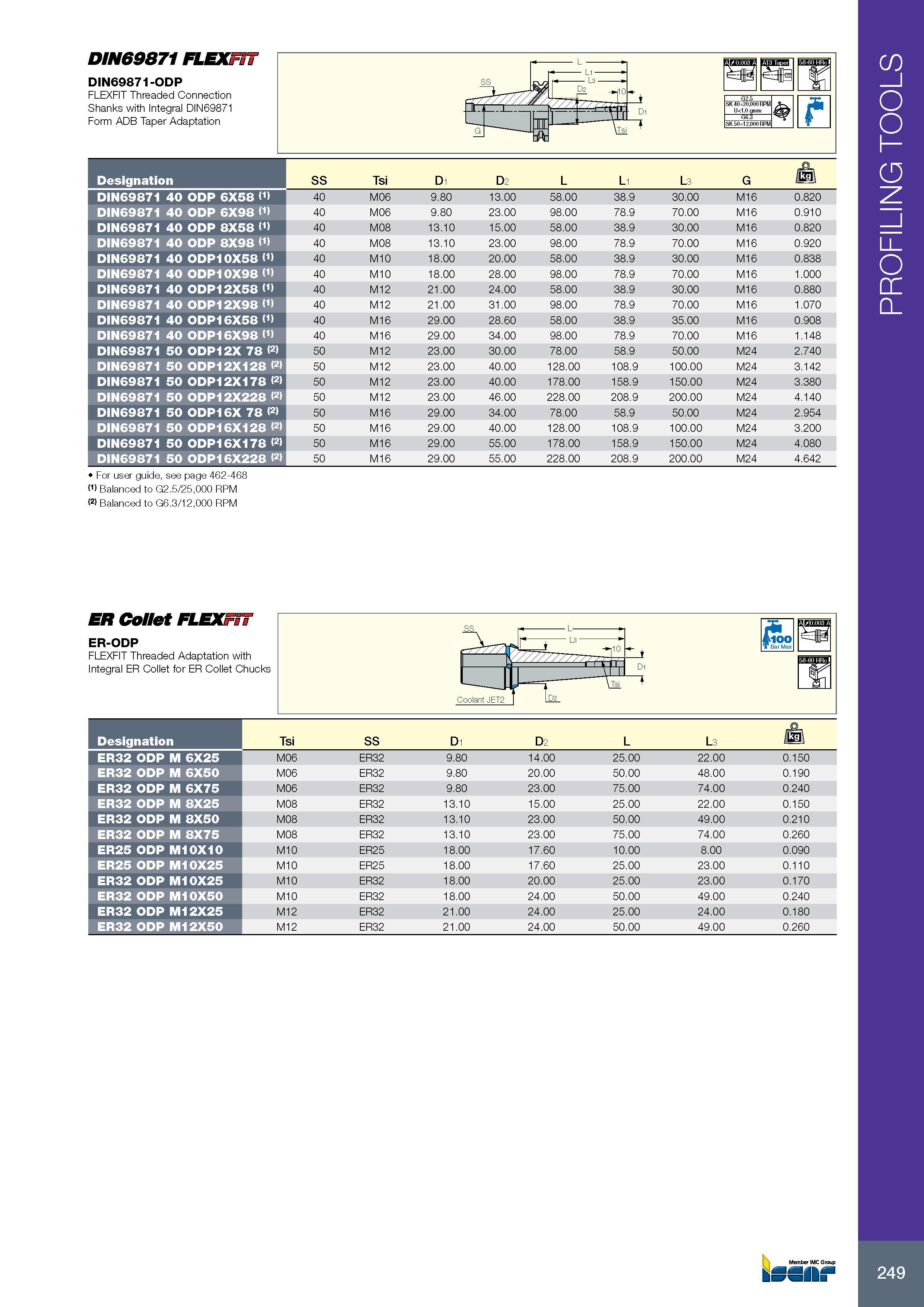

253 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.249

Каталог ISCAR 2017 Ротационный инструмент Стр. 249 0253 ENG Lab2u

DIN69871 FLEXFIT D IN69871-ODP FLEXFIT Threaded Connection Shanks with Integral DIN69871 Form ADB Taper Adaptation G2.5 SK 40=20,000 RPM U<1.0 gmm Обозначение Designation SS Tsi D1 D2 L L1 L3 G / k i\ DIN69871 40 ODP 6X58 (1) 40 M06 9.80 13.00 58.00 38.9 30.00 M16 0.820 DIN69871 40 ODP 6X98 (1) 40 M06 9.80 23.00 98.00 78.9 70.00 M16 0.910 DIN69871 40 ODP 8X58 (1) 40 M08 13.10 15.00 58.00 38.9 30.00 M16 0.820 DIN69871 40 ODP 8X98 (1) 40 M08 13.10 23.00 98.00 78.9 70.00 M16 0.920 DIN69871 40 ODP10X58 (1) 40 M10 18.00 20.00 58.00 38.9 30.00 M16 0.838 DIN69871 40 ODP10X98 (1) 40 M10 18.00 28.00 98.00 78.9 70.00 M16 1.000 DIN69871 40 ODP12X58 (1) 40 M12 21.00 24.00 58.00 38.9 30.00 M16 0.880 DIN69871 40 ODP12X98 (1) 40 M12 21.00 31.00 98.00 78.9 70.00 M16 1.070 DIN69871 40 ODP16X58 (1) 40 M16 29.00 28.60 58.00 38.9 35.00 M16 0.908 DIN69871 40 ODP16X98 (1) 40 M16 29.00 34.00 98.00 78.9 70.00 M16 1.148 DIN69871 50 ODP12X 78 (2) 50 M12 23.00 30.00 78.00 58.9 50.00 M24 2.740 DIN69871 50 ODP12X128 (2) 50 M12 23.00 40.00 128.00 108.9 100.00 M24 3.142 DIN69871 50 ODP12X178 (2) 50 M12 23.00 40.00 178.00 158.9 150.00 M24 3.380 DIN69871 50 ODP12X228 (2) 50 M12 23.00 46.00 228.00 208.9 200.00 M24 4.140 DIN69871 50 ODP16X 78 (2) 50 M16 29.00 34.00 78.00 58.9 50.00 M24 2.954 DIN69871 50 ODP16X128 (2) 50 M16 29.00 40.00 128.00 108.9 100.00 M24 3.200 DIN69871 50 ODP16X178 (2) 50 M16 29.00 55.00 178.00 158.9 150.00 M24 4.080 DIN69871 50 ODP16X228 (2) 50 M16 29.00 55.00 228.00 208.9 200.00 M24 4.642 For user guide, see page 462-468 (1) Balanced to G2.5/25,000 RPM (2) Balanced to G6.3/12,000 RPM ER Collet FLEXFiT ER-ODP FLEXFIT Threaded Adaptation with Integral ER Collet for ER Collet Chucks Обозначение Designation Tsi SS D1 D2 L L3 ER32 ODP M 6X25 M06 ER32 9.80 14.00 25.00 22.00 0.150 ER32 ODP M 6X50 M06 ER32 9.80 20.00 50.00 48.00 0.190 ER32 ODP M 6X75 M06 ER32 9.80 23.00 75.00 74.00 0.240 ER32 ODP M 8X25 M08 ER32 13.10 15.00 25.00 22.00 0.150 ER32 ODP M 8X50 M08 ER32 13.10 23.00 50.00 49.00 0.210 ER32 ODP M 8X75 M08 ER32 13.10 23.00 75.00 74.00 0.260 ER25 ODP M10X10 M10 ER25 18.00 17.60 10.00 8.00 0.090 ER25 ODP M10X25 M10 ER25 18.00 17.60 25.00 23.00 0.110 ER32 ODP M10X25 M10 ER32 18.00 20.00 25.00 23.00 0.170 ER32 ODP M10X50 M10 ER32 18.00 24.00 50.00 49.00 0.240 ER32 ODP M12X25 M12 ER32 21.00 24.00 25.00 24.00 0.180 ER32 ODP M12X50 M12 ER32 21.00 24.00 50.00 49.00 0.260 249 PROFILING TOOLS
