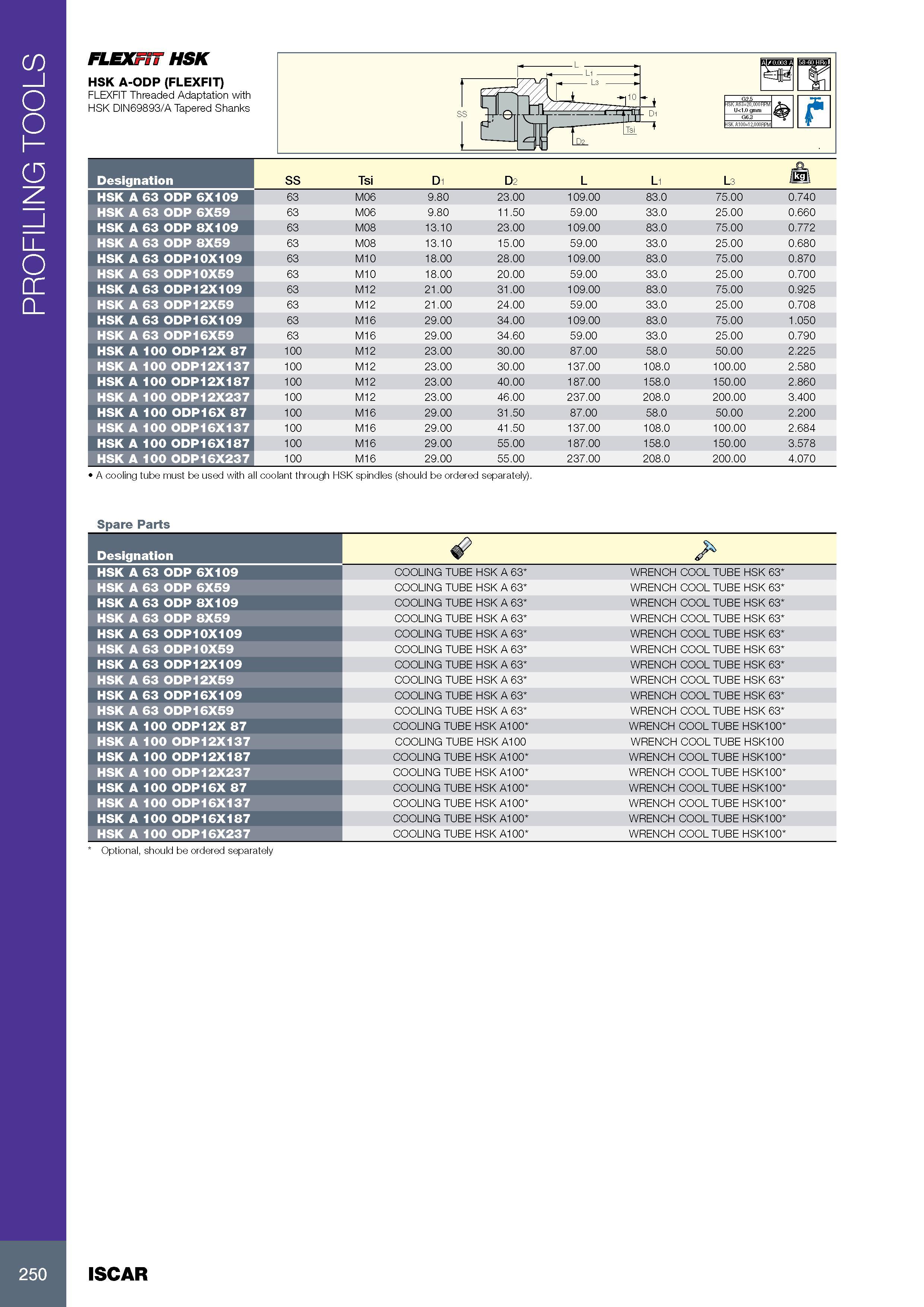

PROFILING TOOLS FLEXFIT HSK HSK A-ODP (FLEXFIT) FLEXFIT Threaded Adaptation with HSK DIN69893/A Tapered Shanks HSK A63=20,000RPM U<1.0 gmm G6.3 HSK Обозначение Designation SS Tsi D1 D2 L L1 L3 jPl /k l\ HSK A 63 ODP 6X109 63 M06 9.80 23.00 109.00 83.0 75.00 0.740 HSK A 63 ODP 6X59 63 M06 9.80 11.50 59.00 33.0 25.00 0.660 HSK A 63 ODP 8X109 63 M08 13.10 23.00 109.00 83.0 75.00 0.772 HSK A 63 ODP 8X59 63 M08 13.10 15.00 59.00 33.0 25.00 0.680 HSK A 63 ODP10X109 63 M10 18.00 28.00 109.00 83.0 75.00 0.870 HSK A 63 ODP10X59 63 M10 18.00 20.00 59.00 33.0 25.00 0.700 HSK A 63 ODP12X109 63 M12 21.00 31.00 109.00 83.0 75.00 0.925 HSK A 63 ODP12X59 63 M12 21.00 24.00 59.00 33.0 25.00 0.708 HSK A 63 ODP16X109 63 M16 29.00 34.00 109.00 83.0 75.00 1.050 HSK A 63 ODP16X59 63 M16 29.00 34.60 59.00 33.0 25.00 0.790 HSK A 100 ODP12X 87 100 M12 23.00 30.00 87.00 58.0 50.00 2.225 HSK A 100 ODP12X137 100 M12 23.00 30.00 137.00 108.0 100.00 2.580 HSK A 100 ODP12X187 100 M12 23.00 40.00 187.00 158.0 150.00 2.860 HSK A 100 ODP12X237 100 M12 23.00 46.00 237.00 208.0 200.00 3.400 HSK A 100 ODP16X 87 100 M16 29.00 31.50 87.00 58.0 50.00 2.200 HSK A 100 ODP16X137 100 M16 29.00 41.50 137.00 108.0 100.00 2.684 HSK A 100 ODP16X187 100 M16 29.00 55.00 187.00 158.0 150.00 3.578 HSK A 100 ODP16X237 100 M16 29.00 55.00 237.00 208.0 200.00 4.070 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Spare Parts Обозначение Designation HSK A 63 ODP 6X109 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP 6X59 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP 8X109 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP 8X59 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP10X109 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP10X59 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP12X109 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP12X59 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP16X109 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 63 ODP16X59 COOLING TUBE HSK A 63 WRENCH COOL TUBE HSK 63 HSK A 100 ODP12X 87 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 ODP12X137 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 ODP12X187 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 ODP12X237 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 ODP16X 87 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 ODP16X137 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 ODP16X187 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 HSK A 100 ODP16X237 COOLING TUBE HSK A100 WRENCH COOL TUBE HSK100 Optional, should be ordered separately 250 ISCAR
