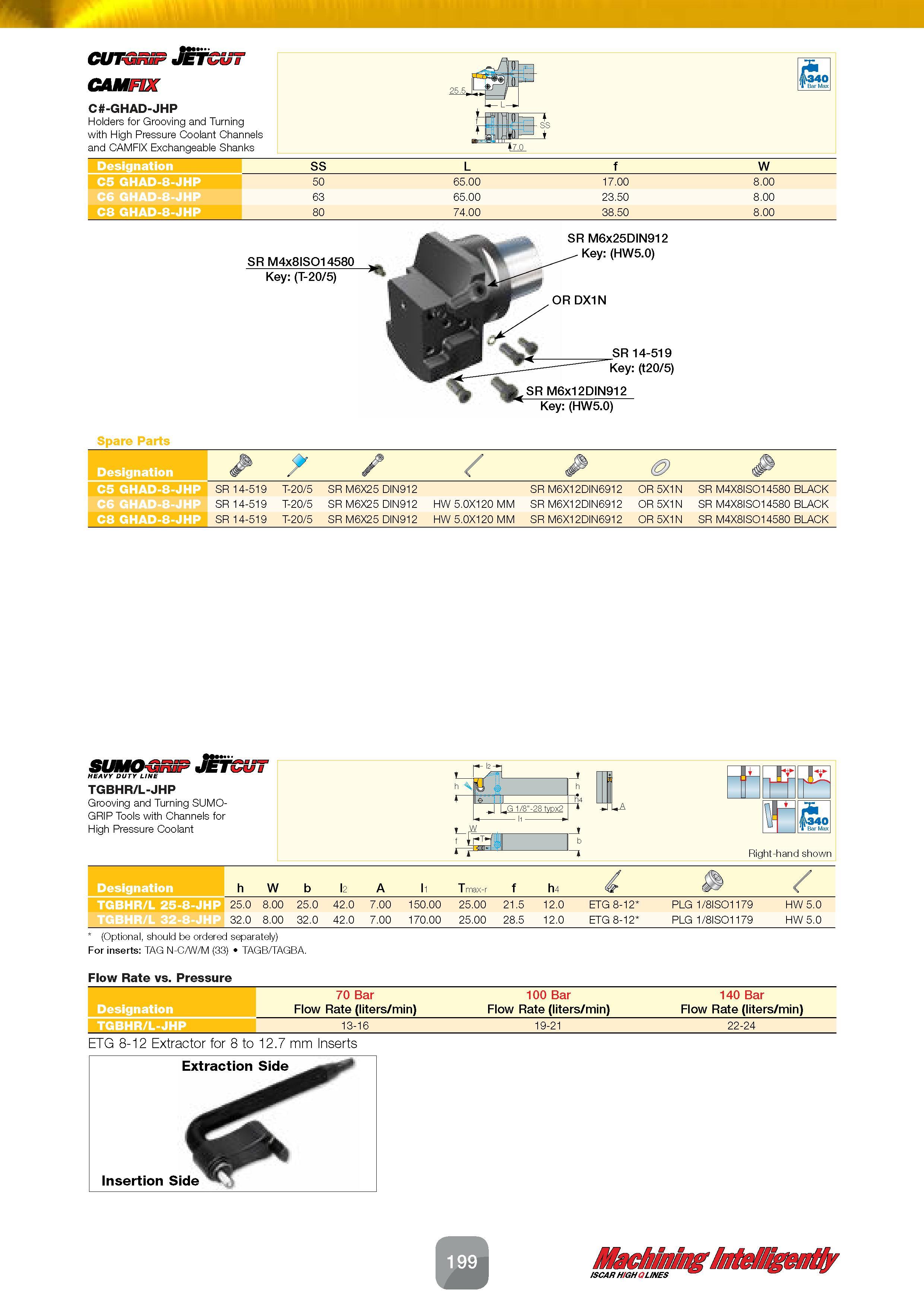

CUTGRiP JeTCUT CAM C -GHAD-JHP Holders for Grooving and Turning with High Pressure Coolant Channels and CAMFIX Exchangeable Shanks 340 Bar Max Designation SS L f W C5 GHAD-8-JHP 50 65.00 17.00 8.00 C6 GHAD-8-JHP 63 65.00 23.50 8.00 C8 GHAD-8-JHP 80 74.00 38.50 8.00 SR M4x8ISO14580 Key: (T-20/5) SR M6x25DIN912 Key: (HW5.0) SR 14-519 Key: (t20/5) SR M6x12DIN912 Key: (HW5.0) Spare Parts Designation C5 GHAD-8-JHP C6 GHAD-8-JHP C8 GHAD-8-JHP . SR 14-519 T-20/5 SR 14-519 T-20/5 SR 14-519 T-20/5 SR M6X25 DIN912 SR M6X25 DIN912 SR M6X25 DIN912 HW 5.0X120 MM HW 5.0X120 MM SR M6X12DIN6912 SR M6X12DIN6912 SR M6X12DIN6912 OR 5X1N SR M4X8ISO14580 BLACK OR 5X1N SR M4X8ISO14580 BLACK OR 5X1N SR M4X8ISO14580 BLACK SUMO-GRiP JM'f HEAVY DUTY LINE TGBHR/L-JHP Grooving and Turning SUMO-GRIP Tools with Channels for High Pressure Coolant I’ G 1/8"-28 typx2 11 W ii r 340 Bar Max Right-hand shown Designation h W b l2 A l1 Tmax-r f h4 d- . TGBHR/L 25-8-JHP 25.0 8.00 25.0 42.0 7.00 150.00 25.00 21.5 12.0 ETG 8-12 PLG 1/8ISO1179 HW 5.0 TGBHR/L 32-8-JHP 32.0 8.00 32.0 42.0 7.00 170.00 25.00 28.5 12.0 ETG 8-12 PLG 1/8ISO1179 HW 5.0 (Optional, should be ordered separately) For inserts: TAG N-C/W/M (33) TAGB/TAGBA. Flow Rate vs. Pressure Designation 70 Bar Flow Rate (liters/min) 100 Bar Flow Rate (liters/min) 140 Bar Flow Rate (liters/min) TGBHR/L-JHP 13-16 19-21 22-24 ETG 8-12 Extractor for 8 to 12.7 mm Inserts Extraction Side Insertion Side /SCAR HGH LINES h A
