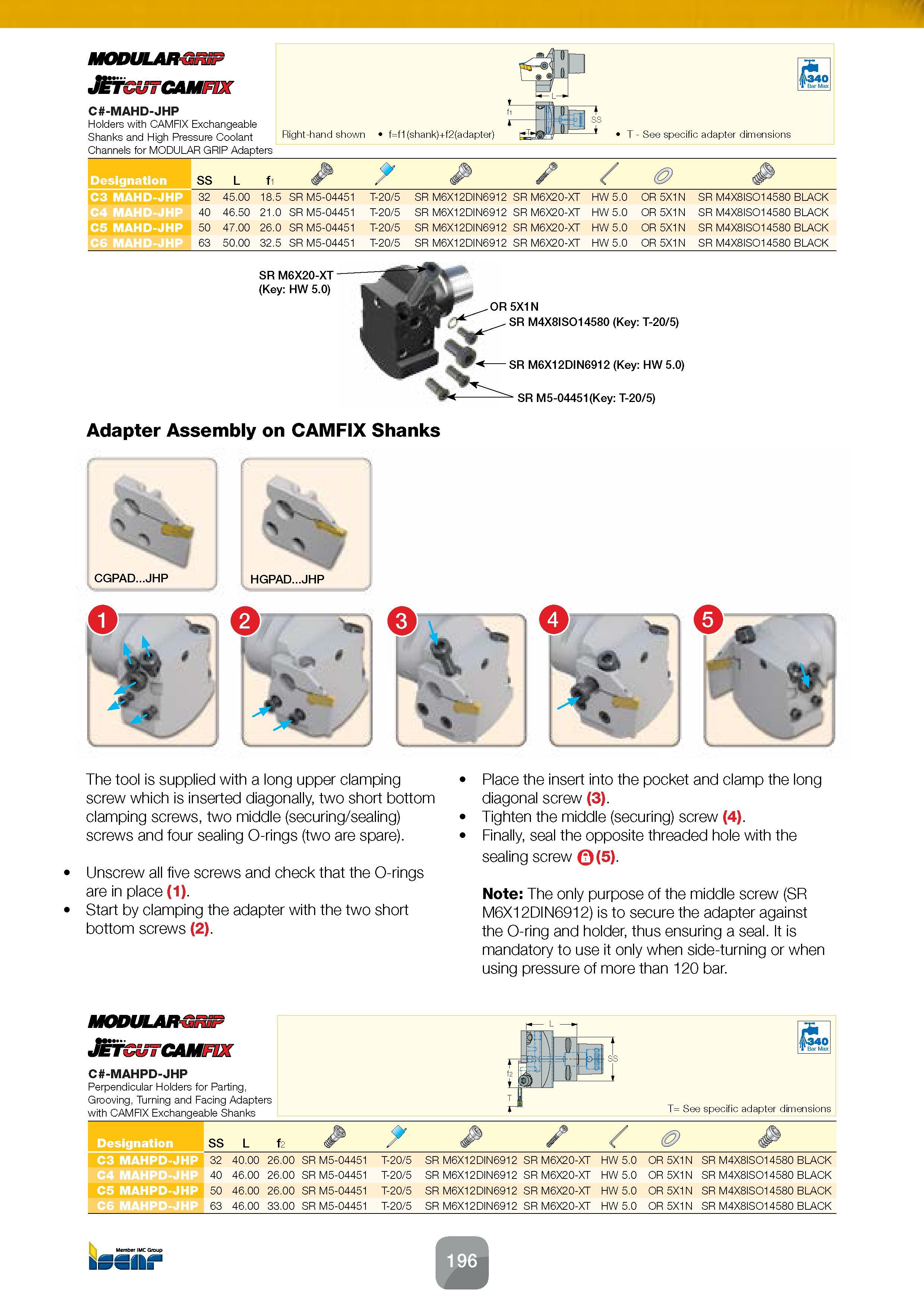

MODULAR Jetcutcamfix C -MAHD-JHP Holders with CAMFIX Exchangeable Shanks and High Pressure Coolant Channels for MODULAR GRIP Adapters Designation C3 MAHD-JHP C4 MAHD-JHP C5 MAHD-JHP C6 MAHD-JHP SS L f1 . 32 45.00 18.5 SR M5-04451 T-20/5 40 46.50 21.0 SR M5-04451 T-20/5 50 47.00 26.0 SR M5-04451 T-20/5 63 50.00 32.5 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK SR M4X8ISO14580 BLACK SR M4X8ISO14580 BLACK SR M4X8ISO14580 BLACK SR M6X20-XT (Key: HW 5.0) OR 5X1N SR M4X8ISO14580 (Key: T-20/5) SR M6X12DIN6912 (Key: HW 5.0) SR M5-04451(Key: T-20/5) Adapter Assembly on CAMFIX Shanks The tool is supplied with a long upper clamping screw which is inserted diagonally, two short bottom clamping screws, two middle (securing/sealing) screws and four sealing O-rings (two are spare). Unscrew all five screws and check that the O-rings are in place (1). Start by clamping the adapter with the two short bottom screws (2) Place the insert into the pocket and clamp the long diagonal screw (3). Tighten the middle (securing) screw (4). Finally, seal the opposite threaded hole with the sealing screw (5). Note: The only purpose of the middle screw (SR M6X12DIN6912) is to secure the adapter against the O-ring and holder, thus ensuring a seal. It is mandatory to use it only when side-turning or when using pressure of more than 120 bar. MODULAR-GR1P Jetcutcamfix C -MAHPD-JHP Perpendicular Holders for Parting, Grooving, Turning and Facing Adapters with CAMFIX Exchangeable Shanks 340 Bar Max T= See specific adapter dimensions Designation C3 MAHPD-JHP C4 MAHPD-JHP C5 MAHPD-JHP C6 MAHPD-JHP SS L f2 32 40.00 26.00 SR M5-04451 T-20/5 40 46.00 26.00 SR M5-04451 T-20/5 50 46.00 26.00 SR M5-04451 T-20/5 63 46.00 33.00 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK SR M4X8ISO14580 BLACK SR M4X8ISO14580 BLACK SR M4X8ISO14580 BLACK JS Member IMC Group
