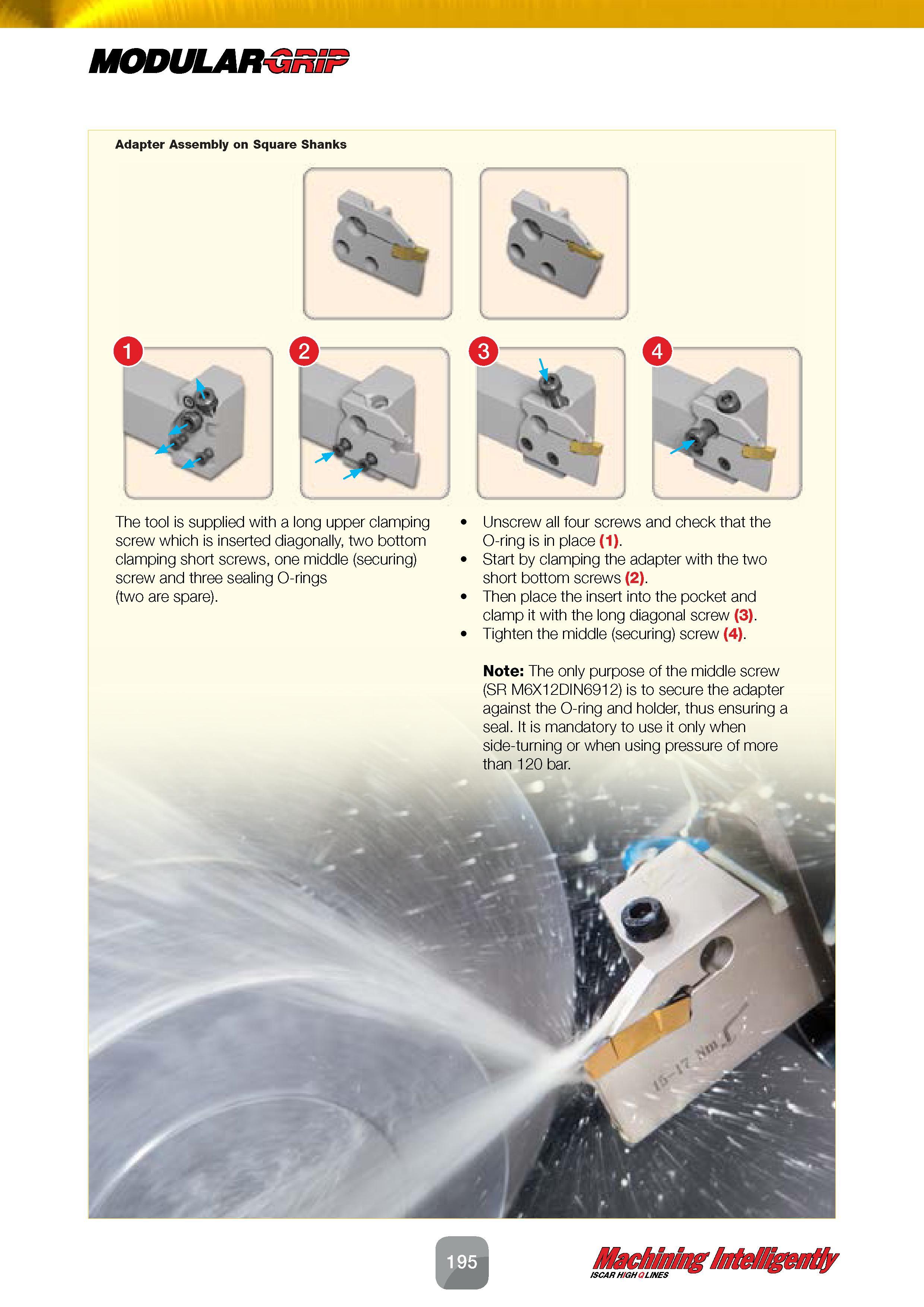

MODULAR I 1-1 lO/ JWEF7 Adapter Assembly on Square Shanks 3 k - The tool is supplied with a long upper clamping screw which is inserted diagonally, two bottom clamping short screws, one middle (securing) screw and three sealing O-rings (two are spare). <3> Unscrew all four screws and check that the O-ring is in place (1). Start by clamping the adapter with the two short bottom screws (2). Then place the insert into the pocket and clamp it with the long diagonal screw (3). Tighten the middle (securing) screw (4). Note: The only purpose of the middle screw (SR M6X12DIN6912) is to secure the adapter against the O-ring and holder, thus ensuring a seal. It is mandatory to use it only when side-turning or when using pressure of more than 120 bar. \ ISCAR HGH LINES
