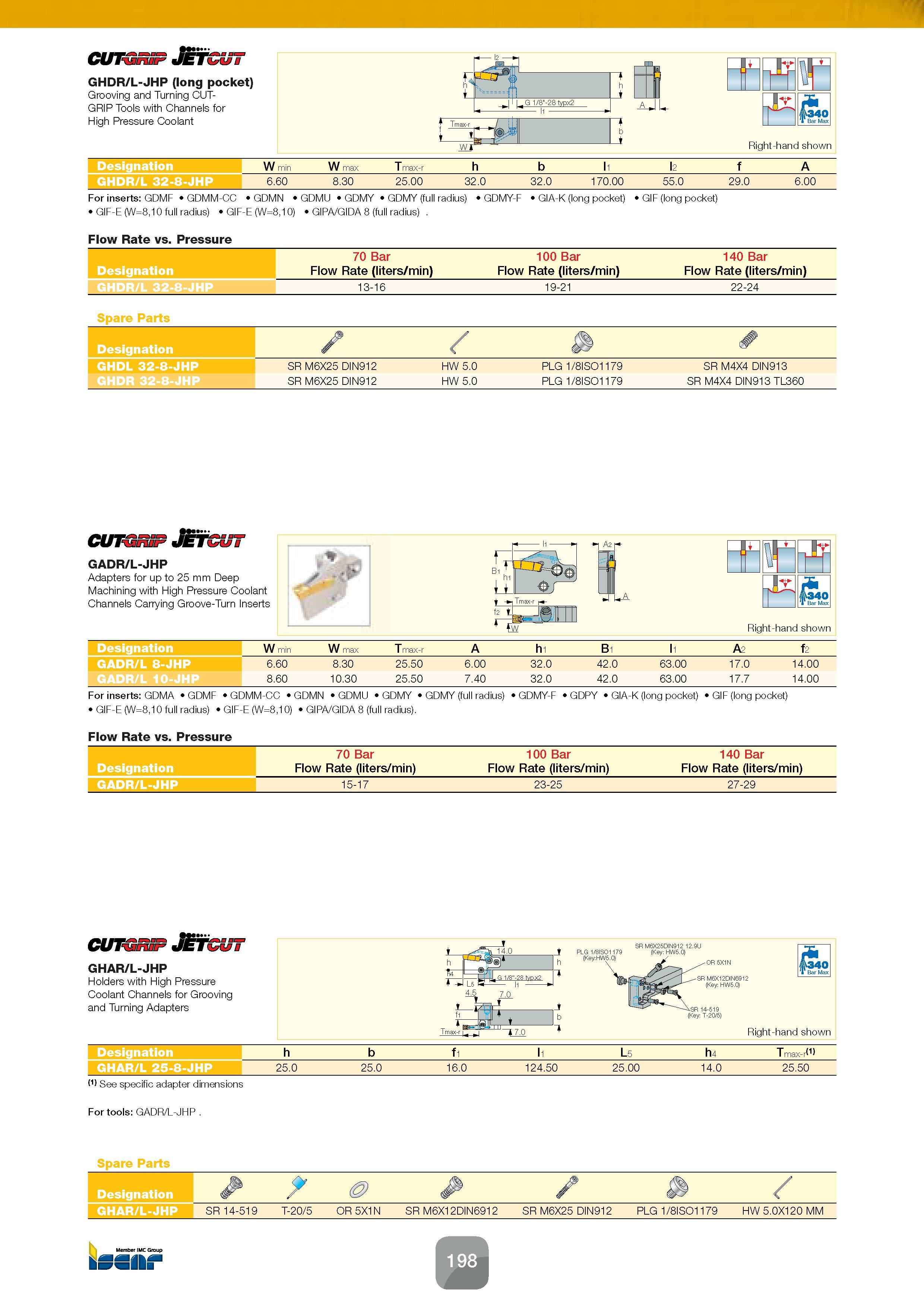

cutgssf Jercur GHDR/L-JHP (long pocket) Grooving and Turning CUT-GRIP Tools with Channels for High Pressure Coolant Designation W min W max T max-r h b l1 l2 f A GHDR/L 32-8-JHP 6.60 8.30 25.00 32.0 32.0 170.00 55.0 29.0 6.00 For inserts: GDMF GDMM-CC GDMN GDMU GDMY GDMY (full radius) GDMY-F GIA-K (long pocket) GIF (long pocket) GIF-E (W=8,10 full radius) GIF-E (W=8,10) GIPA/GIDA 8 (full radius) . Flow Rate vs. Pressure Designation 70 Bar Flow Rate (liters/min) 100 Bar Flow Rate (liters/min) 140 Bar Flow Rate (liters/min) GHDR/L 32-8-JHP 13-16 19-21 22-24 Spare Parts SR M6X25 DIN912 HW 5.0 PLG 1/8ISO1179 SR M4X4 DIN913 SR M6X25 DIN912 HW 5.0 PLG 1/8ISO1179 SR M4X4 DIN913 TL360 Designation GHDL 32-8-JHP GHDR 32-8-JHP CUTGrtiP JM tCUT GADR/L-JHP Adapters for up to 25 mm Deep Machining with High Pressure Coolant Channels Carrying Groove-Turn Inserts Designation GADR/L 8-JHP GADR/L 10-JHP W min _W max T max-r A _hj B _L A fl_ 6.60 8.30 25.50 6.00 32.0 42.0 63.00 17.0 14.00 8.6 0 _10.30 _25.50 7.40 _32.0 _42.0 63.00 17.7 _14.00 For inserts: GDMA GDMF GDMM-CC GDMN GDMU GDMY GDMY (full radius) GDMY-F GDPY GIA-K (long pocket) GIF (long pocket) GIF-E (W=8,10 full radius) GIF-E (W=8,10) GIPA/GIDA 8 (full radius). Flow Rate vs. Pressure Designation 70 Bar Flow Rate (liters/min) 100 Bar Flow Rate (liters/min) 140 Bar Flow Rate (liters/min) GADR/L-JHP 15-17 23-25 27-29 CUTGrtiP Ji'tCUT GHAR/L-JHP Holders with High Pressure Coolant Channels for Grooving and Turning Adapters Designation h b f1 l1 L5 h4 T max-r(1) GHAR/L 25-8-JHP 25.0 25.0 16.0 124.50 25.00 14.0 25.50 (1) See specific adapter dimensions For tools: GADR/L-JHP . Spare Parts Designation . / s' GHAR/L-JHP SR 14-519 T-20/5 OR 5X1N SR M6X12DIN6912 SR M6X25 DIN912 PLG 1/8ISO1179 HW 5.0X120 MM
