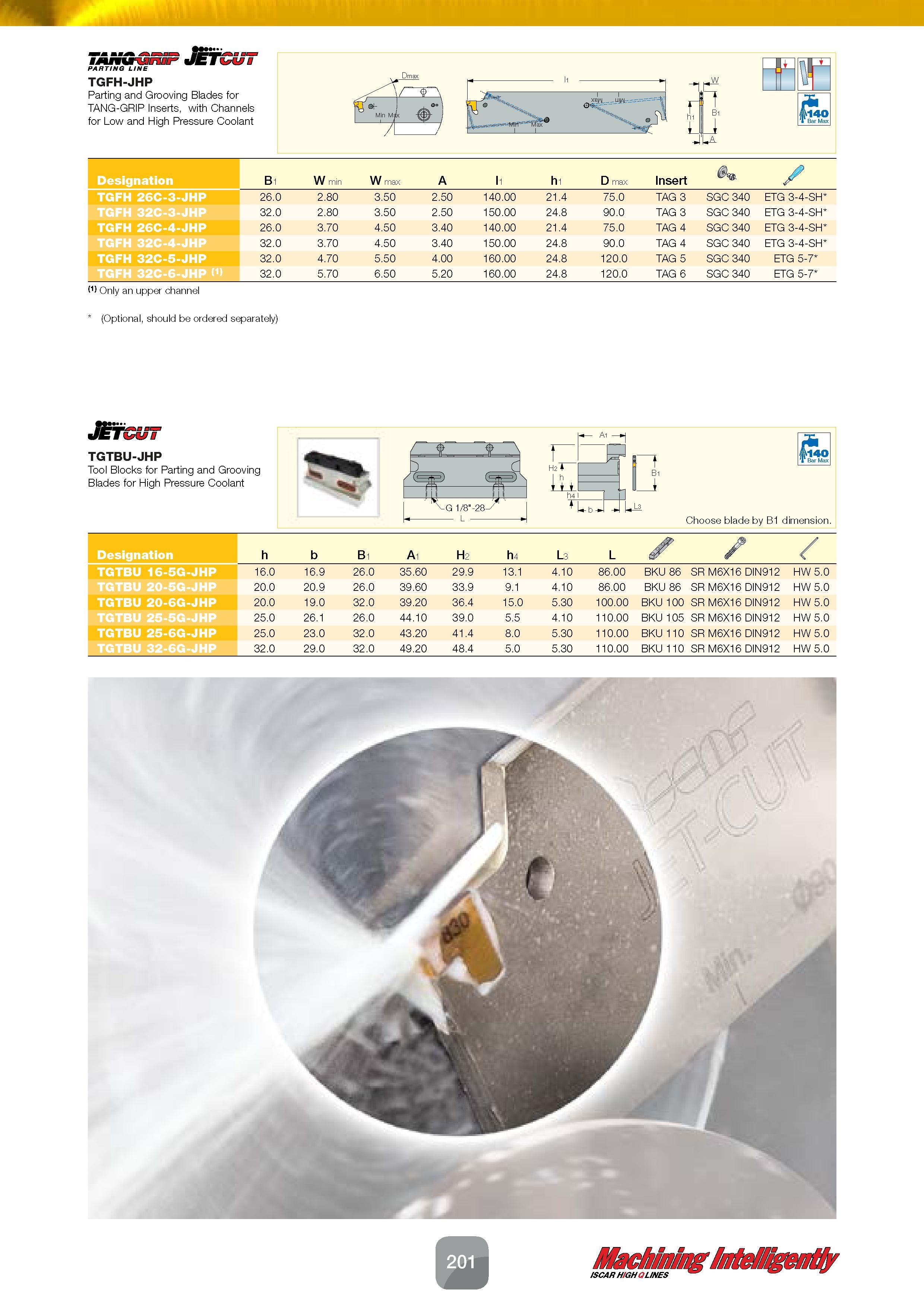

TANCrGniF JETCi PARTING LINE TGFH-JHP Parting and Grooving Blades for TANG-GRIP Inserts, with Channels for Low and High Pressure Coolant Designation B1 W min W max A l1 h1 D max Insert S TGFH 26C-3-JHP 26.0 2.80 3.50 2.50 140.00 21.4 75.0 TAG 3 SGC 340 ETG 3-4-SH TGFH 32C-3-JHP 32.0 2.80 3.50 2.50 150.00 24.8 90.0 TAG 3 SGC 340 ETG 3-4-SH TGFH 26C-4-JHP 26.0 3.70 4.50 3.40 140.00 21.4 75.0 TAG 4 SGC 340 ETG 3-4-SH TGFH 32C-4-JHP 32.0 3.70 4.50 3.40 150.00 24.8 90.0 TAG 4 SGC 340 ETG 3-4-SH TGFH 32C-5-JHP 32.0 4.70 5.50 4.00 160.00 24.8 120.0 TAG 5 SGC 340 ETG 5-7 TGFH 32C-6-JHP (1) 32.0 5.70 6.50 5.20 160.00 24.8 120.0 TAG 6 SGC 340 ETG 5-7 (1) Only an upper channel (Optional, should be ordered separately) C Z7 TGTBU-JHP Tool Blocks for Parting and Grooving Blades for High Pressure Coolant G 1/8"-28- L - r Ai P H2 h4l uJ J 140 'I Bar Max Choose blade by B1 dimension. Designation h b B1 A1 H2 h4 L3 L TGTBU 16-5G-JHP 16.0 16.9 26.0 35.60 29.9 13.1 4.10 86.00 BKU 86 SR M6X16 DIN912 HW 5.0 TGTBU 20-5G-JHP 20.0 20.9 26.0 39.60 33.9 9.1 4.10 86.00 BKU 86 SR M6X16 DIN912 HW 5.0 TGTBU 20-6G-JHP 20.0 19.0 32.0 39.20 36.4 15.0 5.30 100.00 BKU 100 SR M6X16 DIN912 HW 5.0 TGTBU 25-5G-JHP 25.0 26.1 26.0 44.10 39.0 5.5 4.10 110.00 BKU 105 SR M6X16 DIN912 HW 5.0 TGTBU 25-6G-JHP 25.0 23.0 32.0 43.20 41.4 8.0 5.30 110.00 BKU 110 SR M6X16 DIN912 HW 5.0 TGTBU 32-6G-JHP 32.0 29.0 32.0 49.20 48.4 5.0 5.30 110.00 BKU 110 SR M6X16 DIN912 HW 5.0 /SCAR HGH LINES Bi
